Commissioning
38
Pos: 45.38.11 /Übersc hriften/Zwischen überschriften/P- T/Seiten- und Höheneins tellung (II und II I) @ 326\mod_1425999127293_ 78.docx @ 2503971 @ @ 1
Side and height adjustment (II and III)
Pos: 45.38.12 /BA/I nbetriebnahme/Vorsä tze/Adapterrahmen/ Höheneinstellung de s Getriebes X-Disc 620_Bild @ 336\mod_143014792 4693_78.docx @ 2558873 @ @ 1
GPS00052
1
3
4
2

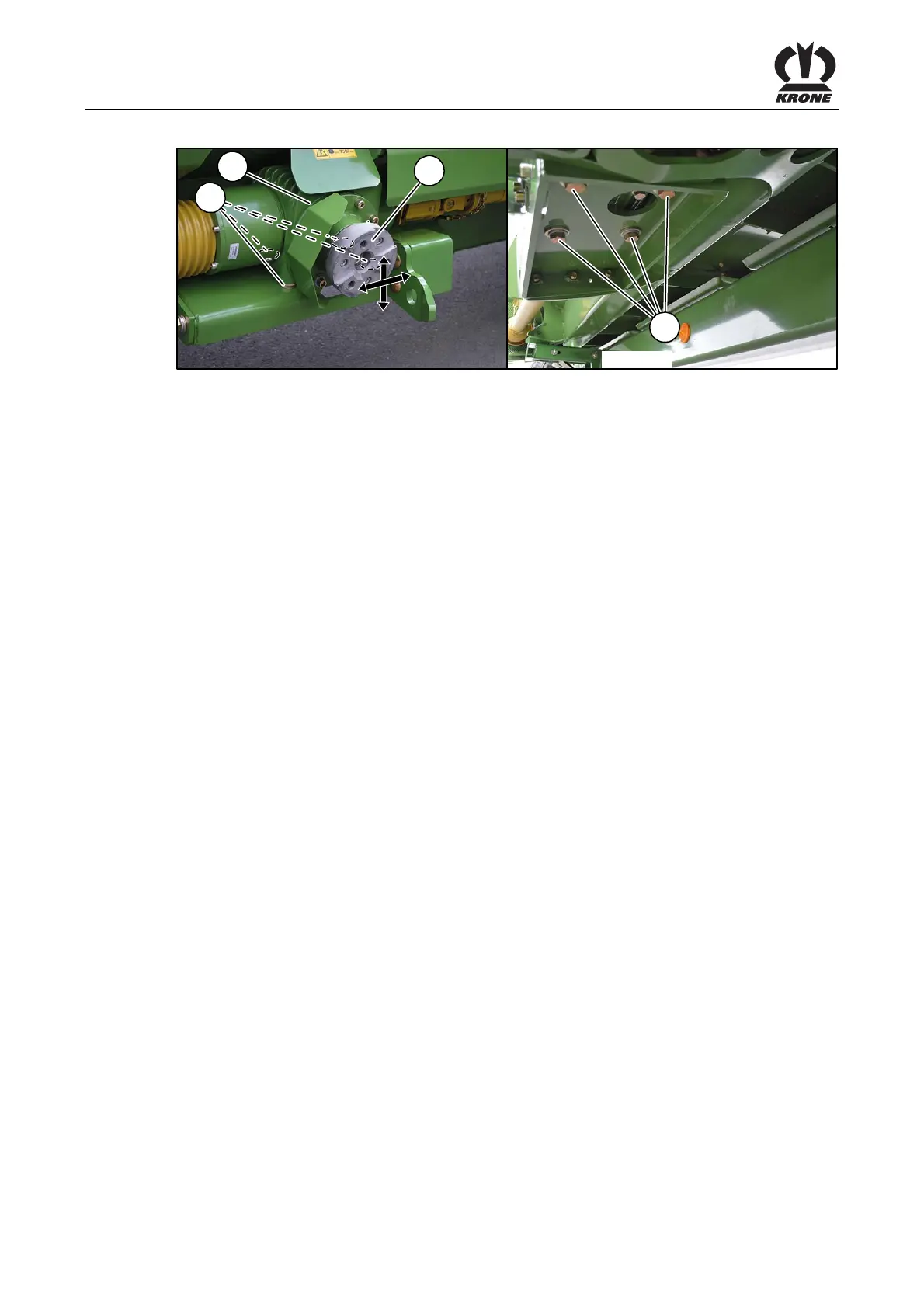

Fig. 13
Pos: 45.38.13 /BA/I nbetriebnahme/Vorsä tze/Adapterrahmen/ Höheneinstellung de s Getriebes X-Disc 620_Text @ 337\mod_1430229054 444_78.docx @ 2560538 @ @ 1
• Release the four screws (1).
• The height of clutch disc (4) and coupling journal of forage harvester should be the same.
To this, add or remove washers (2) under the main angular gearbox housing until they are
at the same height.
• Position main angular gearbox (3) laterally in such a way that the coupling journal is aligned
centrally to the housing.
• Tighten screws (1) again.
Pos: 45.38.14 /Layout Module /----------------Leerzeile------- ------------- @ 240\mod_139 5147357027_0.doc x @ 1890988 @ @ 1
Pos: 45.38.15 /BA/I nbetriebnahme/Vorsä tze/Pendelrahmen/Po sition der Kupplungs scheibe kontrollier en X-Disc 620 @ 338\mod_143 0732087145_78.doc x @ 2564198 @ @ 1
Checking the position of the clutch disc
• Connect header to forage harvester and check the position of the clutch disc.
When the clutch disc is correctly aligned:
• The setting is OK and the header can be used together with forage harvester.
When the clutch disc is still not aligned correctly:
• The adjustment of the input gearbox must be carried out once again.
