Maintenance

Pos: 59.21.1 /Überschr iften/Überschr iften 2/K-O/Mähholm- Antriebsgetriebe @ 12\ mod_1224750940357_78. docx @ 153676 @ 2 @ 1

10.7 Cutter bar drive gear

Pos: 59.21.2 /W HB/Wartung/EasyCollect 753/ 903/1053/Hinwei s Kontrolle/wechse l in waagerechter Stellung d es Getriebes vornehmen @ 26\mod_1245065900611 _78.docx @ 258462 @ @ 1

Note

Check the oil level and change the oil while the gearbox is in a horizontal position!

Pos: 59.21.3 /BA/W artung/Ölkontrolle_W echsel/Hinweis - Alt öl ordnungsgemäß entsor gen @ 0\mod_1197008117002 _78.docx @ 15550 @ @ 1

Note

The used oil must be disposed of correctly

Pos: 59.21.4 /BA/W artung/Ölkontrolle_W echsel/Ölqualit ät /Ölmenge: siehe Kapite l Technische Daten @ 134\mod _1350483480921_78.do cx @ 1188085 @ @ 1

Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”

Pos: 59.21.5 /BA/W artung/Ölkontrolle_W echsel/Ölkontrol le / Ölwechsel Inter vall: siehe Kapitel War tung „Wartungstabelle“ @ 134\mod_13504836059 21_78.docx @ 1188115 @ @ 1

Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”

Pos: 59.21.6 /BA/W artung/Ölkontrolle_W echsel/Vorsätze/ X-Disc/Bild Mähhol m-Antriebsgetrei be X-Disc 6200 @ 140\mod_135 5143052846_78.doc x @ 1244726 @ @ 1

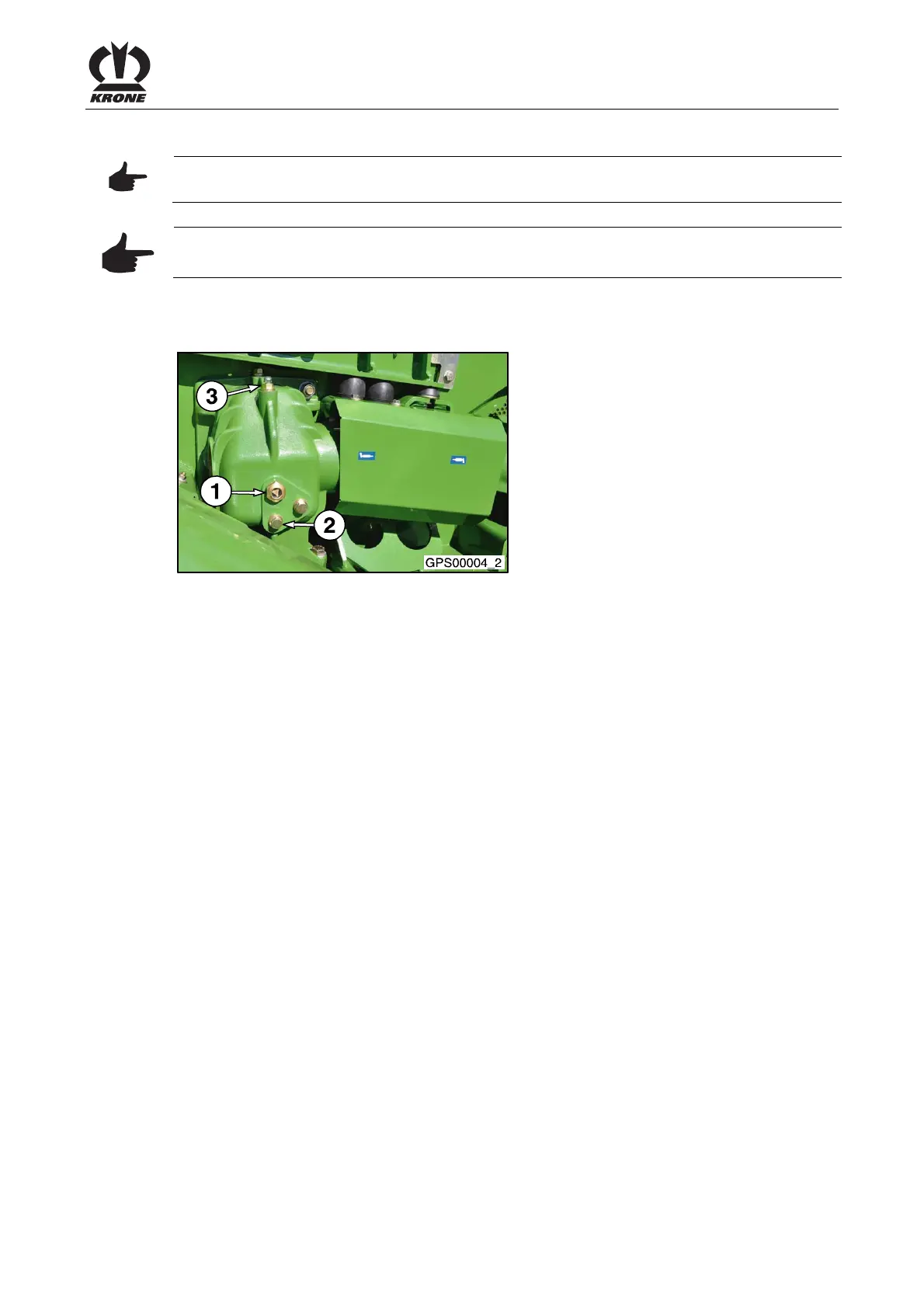

Fig. 28

1) Viewing glass 2) Drain plug

3) Filler plug / oil filling hole

Pos: 59.21.7 /BA/W artung/Ölkontrolle_W echsel/Ölkontrol le NEU über Schauglas @ 140\mo d_1355143186009_78.doc x @ 1244755 @ @ 1

Oil level check:

• Oil level to the centre of the viewing glass.

If the oil does not reach the centre of the viewing glass:

• Screw out filler plug.

• Top up oil via oil filling hole until the centre of the viewing glass is reached.

• Screw in filler plug and tighten it securely.

Pos: 59.21.8 /BA/W artung/Ölkontrolle_W echsel/Ölwechse l NEU wenn Schauglas @ 140\mod_13 55143515970_78.doc x @ 1244815 @ @ 1

Oil change:
