Krone X-Disc 620 - Attachment to the Forage Harvester; Adapter Frame

Start-up
40
Pos: 47.5 /Überschri ften/Überschri ften 2/A-E/Anbau an den Feldhäc ksler @ 13\mod_1225451 434551_78.doc x @ 156364 @ 2 @ 1
6.2 Attachment to the forage harvester
Pos: 47.6 /Überschri ften/Überschri ften 3/A-E/A/Adapterr ahmen @ 161\mod_13656656592 76_78.docx @ 1416163 @ 3 @ 1
6.2.1 Adapter Frame
Pos: 47.7 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Anba u Adapterrahmen Bild Bi G X 480/580 @ 277\mod_140490441 9550_78.docx @ 2080966 @ @ 1
EFL000046_2
1
2
3

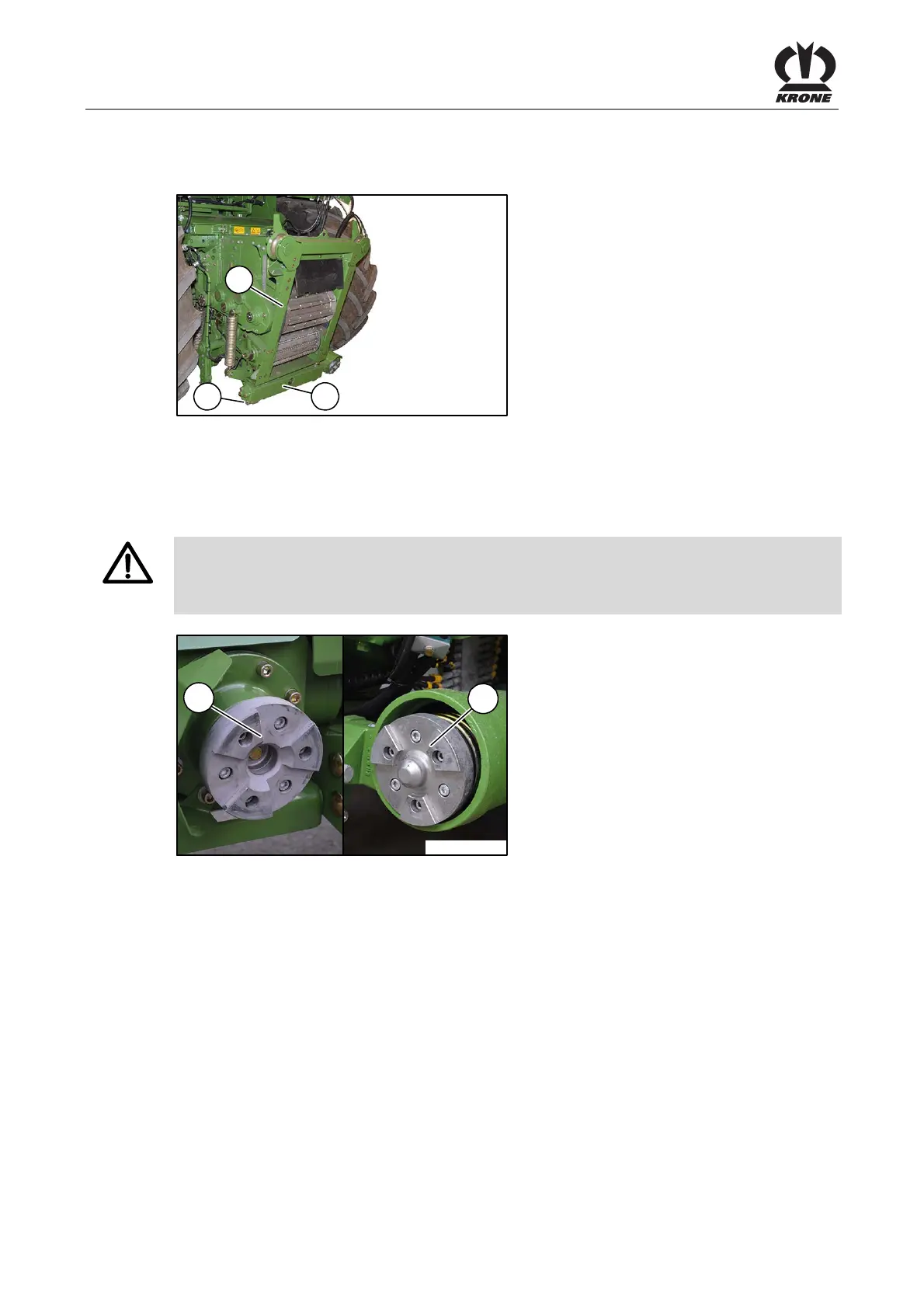

Fig. 14
Pos: 47.8 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Anba u Adapterrahmen Einführ satz BiG X 480/580 @ 163\mod_136 6111837129_78.doc x @ 1426011 @ @ 1
To prepare the forage harvester for the attachment of the front attachment:
Pos: 47.9 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Anba u Adapterrahmen BiG X 480/580 @ 159\ mod_1365514096320_7 8.docx @ 1410808 @ @ 1
• Completely lower the feed drive (1) of the forage harvester.
• Align the pendulum tube (2) on the feed drive horizontally.
• Make certain the locking bolts (3) are unlocked, unlock if necessary.
Pos: 47.10 /BA/Sic herheit/Transport wagen/Achtung Ankuppe ln @ 5\mod_1214207864310_78. docx @ 91932 @ @ 1
Danger! - Coupling
Effect: Danger to life or serious injuries.
When making the coupling, ensure there is no one between the forage harvester and the
machine.
Pos: 47.11 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Kup plungsscheibe reini gen Bild BiG X 480/580__X-D isc 620 @ 336\mod_14298713 16858_78.docx @ 2557003 @ @ 1
GPS00037
1
2
Fig. 15
Pos: 47.12 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Kup plungsscheibe reini gen BiG X 480/580 @ 163\mod_1366 099680036_78.doc x @ 1425192 @ @ 1
To prepare the coupling for attachment of the front attachment:
• Clean the coupling disc (1) on the front attachment and lubricate the coupling surfaces with
multi-purpose grease.
• Clean the coupling journal (2) on the forage harvester and lubricate the coupling surfaces
with multi-purpose grease.
