Krone X-Disc 620 - Page 41

Start-up
41
Pos: 47.14 /BA/Inbetr iebnahme/Vorsätze/ Ankuppeln/Ankuppe ln T1 Bild BiG X 480/580 X-Disc 620 @ 336\mod_14301491242 61_78.docx @ 2558998 @ @ 1
3
4
1
2
GPS00053

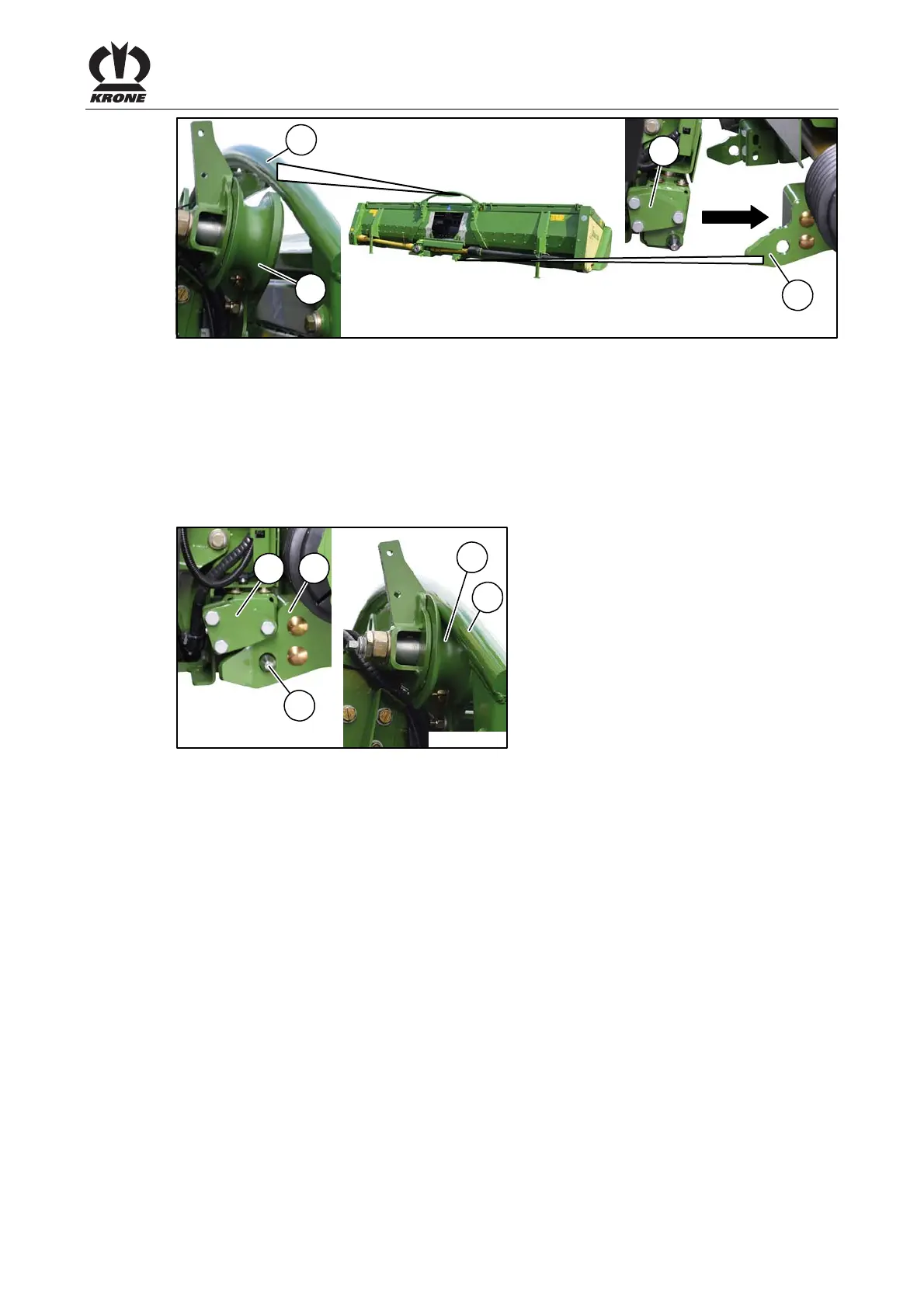

Fig. 16
Pos: 47.15 /BA/Inbetr iebnahme/Vorsätze/ Ankuppeln/Ankuppe ln Einführsatz BiG X 480/5 80 EasyFlow 300/BX014 @ 163\ mod_1366123972057_ 78.docx @ 1426774 @ @ 1
To connect the front attachment to the forage harvester:
Pos: 47.16 /BA/Inbetr iebnahme/Vorsätze/ Ankuppeln/Ankuppe ln T1a Text BiG X 480/580 Easy Flow 300/BX014 @ 275\mod_140 4720771564_78.doc x @ 2070616 @ @ 1
• Drive the forage harvester up to the machine until the roll guides (1) are under the support
chute (2).
• Raise the adapter frame using the lifting hydraulics until the roll guides raise the front
attachment with the support chute.
Pos: 47.17 /BA/Inbetr iebnahme/Vorsätze/ Ankuppeln/Ankuppe ln T1b Text BiG X 480/580 Easy Flow 300/BX014 @ 163\mod_136 6113157525_78.doc x @ 1426107 @ @ 1
When lifting, the centring triangles (3) run in the locking plates (4).
Pos: 47.18 /Layout Module /----------------Leerzeile-------------------- @ 240\mod_1395147357027_0.doc x @ 1890988 @ @ 1
Pos: 47.19 /BA/Inbetr iebnahme/Vorsätze/ Ankuppeln/Ankuppe ln T2 Bild BiG X 480/580 X-Disc 620 @ 336\mod_1430199517 002_78.docx @ 2559139 @ @ 1
GPS00054
1
4
5
2
3
Fig. 17
Pos: 47.20 /BA/Inbetr iebnahme/Vorsätze/ Ankuppeln/Ankuppe ln T1c Text BiG X 480/580 Easy Flow 300/BX014 @ 165\mod_136 6728178646_78.d ocx @ 1435732 @ @ 1
• Lock the locking bolts (3).
• Bring the forage harvester to a stop.
Pos: 47.21 /BA/Inbetr iebnahme/Vorsätze/ AnkuppelnAnkuppe ln T2 Text BiG X480/580 EasyFl ow 300/BV014 (2015-05- 11 08:30:58) @ 275\mod_1404 720853406_78.doc x @ 2070645 @ @ 1
• Check whether the centring triangles (1) have run into the locking plates (2), the locking pin
(3) is locked and the roll guides (4) are on the support chute (5).
