5.5 Adjusting machine to the forage harvester BiG X 480/580
Pos: 45.15 /BA/Inbetr iebnahme/Vorsätze/ Adapterrahmen/Hin weis Erstanbau und W echsel Verriegelungsb leche und Getriebe anpasse n @ 163\mod_1366032240 292_78.docx @ 1423761 @ @ 1
Note
When mounting the machine the first time on a forage harvester as well as each time a forage
harvester is changed, the position of the locking plates as well as of the coupling disc must be
checked and adapted, if necessary.
Pos: 45.16 /BA/Sic herheit/Transport wagen/Achtung Ankuppe ln @ 5\mod_1214207864310_78. docx @ 91932 @ @ 1
Danger! - Coupling
Effect: Danger to life or serious injuries.
When making the coupling, ensure there is no one between the forage harvester and the
machine.
Pos: 45.17 /Übersc hriften/Zwischenüber schriften/K-OKup plungsscheibe reini gen @ 258\mod_139841231722 7_78.docx @ 1976199 @ @ 1
Cleaning the coupling disc
Pos: 45.18 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Kup plungsscheibe reini gen Bild BiG X 480/580__X-D isc 620 @ 336\mod_14298713 16858_78.docx @ 2557003 @ @ 1
GPS00037
1
2

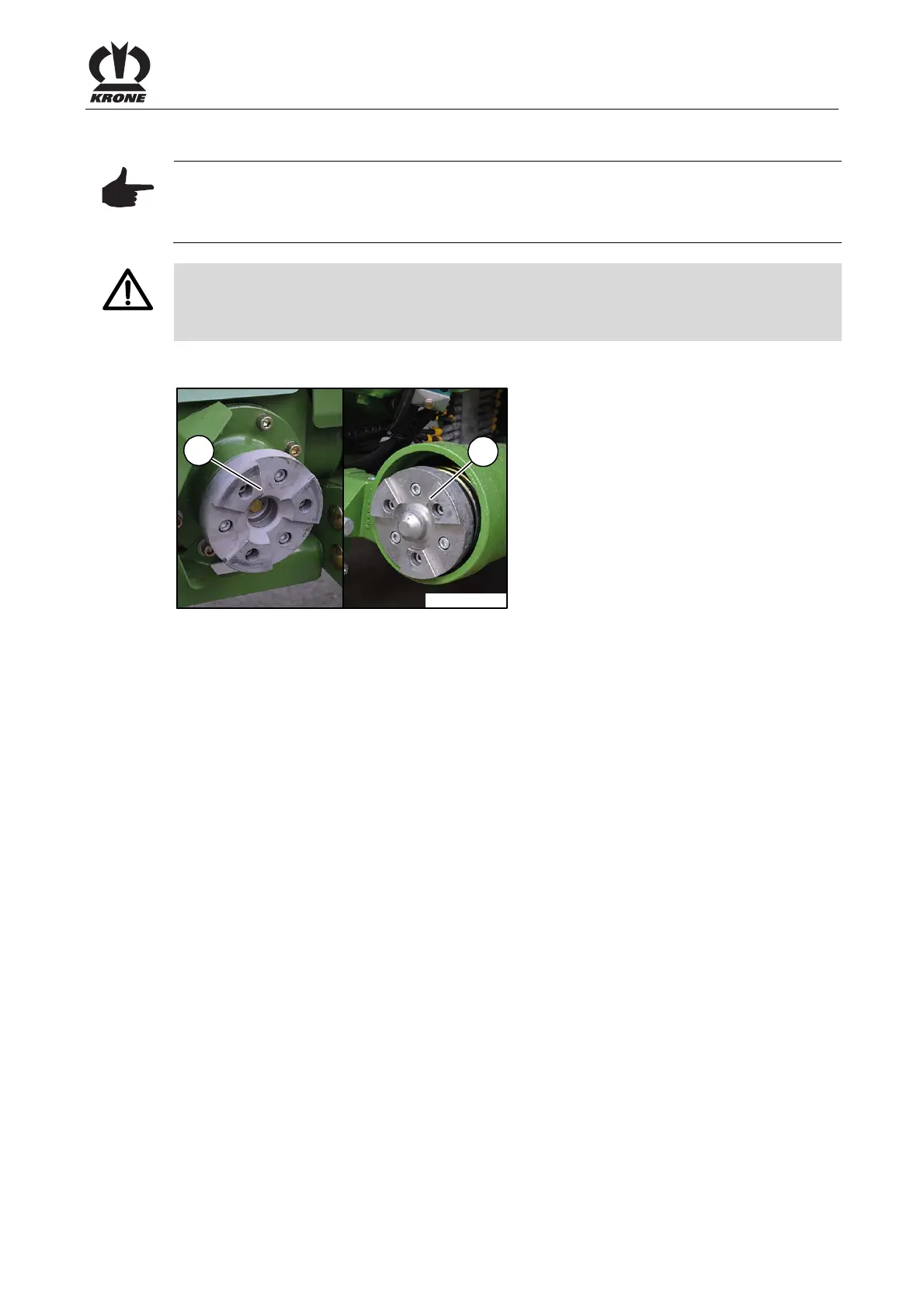

Fig. 6
Pos: 45.19 /BA/Inbetr iebnahme/Vorsätze/ Pendelrahmen/Kup plungsscheibe reini gen BiG X 480/580 @ 163\mod_1366 099680036_78.doc x @ 1425192 @ @ 1
To prepare the coupling for attachment of the front attachment:
• Clean the coupling disc (1) on the front attachment and lubricate the coupling surfaces with
multi-purpose grease.
• Clean the coupling journal (2) on the forage harvester and lubricate the coupling surfaces
with multi-purpose grease.
