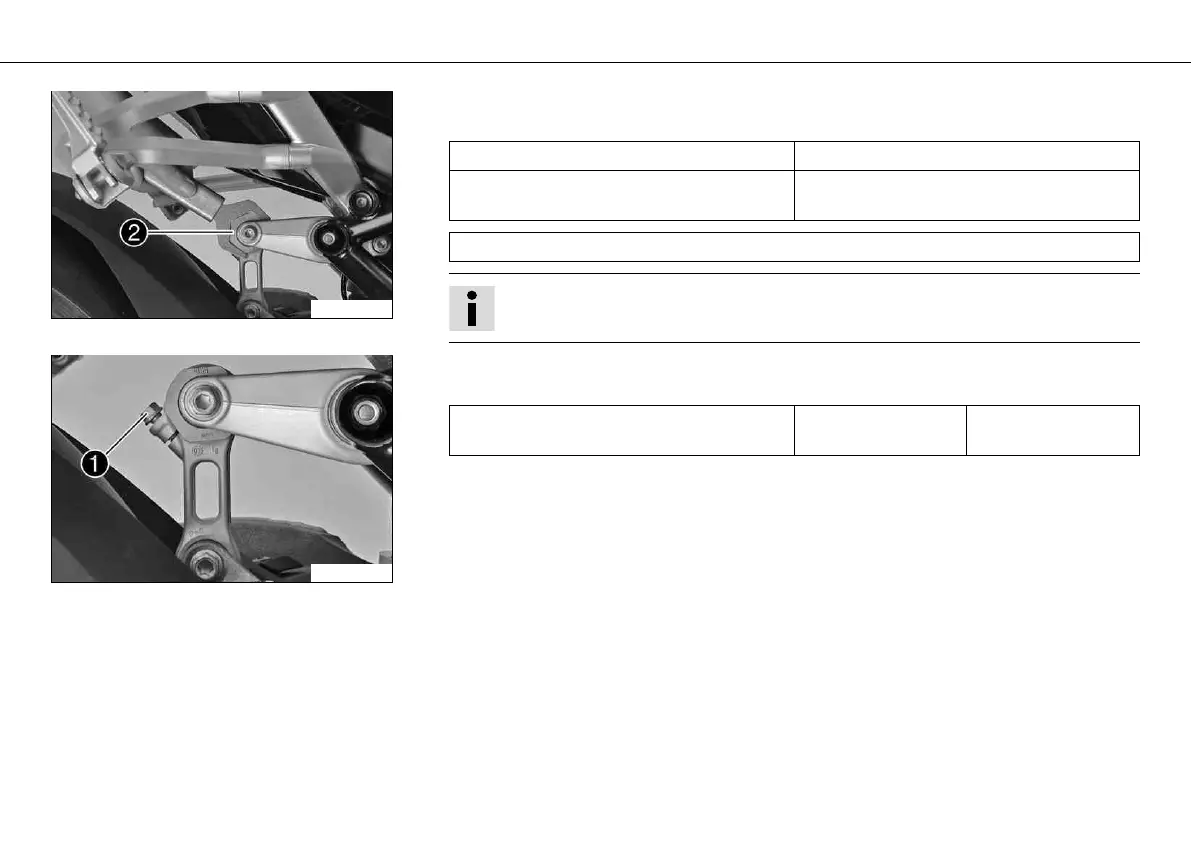

– Turn eccentric shaft to the desired position using the tool from the tool set.
Guideline
Standard LOW
Maximum adjustment range between
HIGH - LOW
180°
Open end wrench SW 38 (69012021000)
Info
The chassis height can be adjusted in both directions.
700334-01
– Tighten screw .
Guideline
Screw, clamp, eccentric shaft of deflec-
tor
M8 18 Nm
(13.3 lbf ft)
