LOCATION OF SERIAL NUMBERS 17

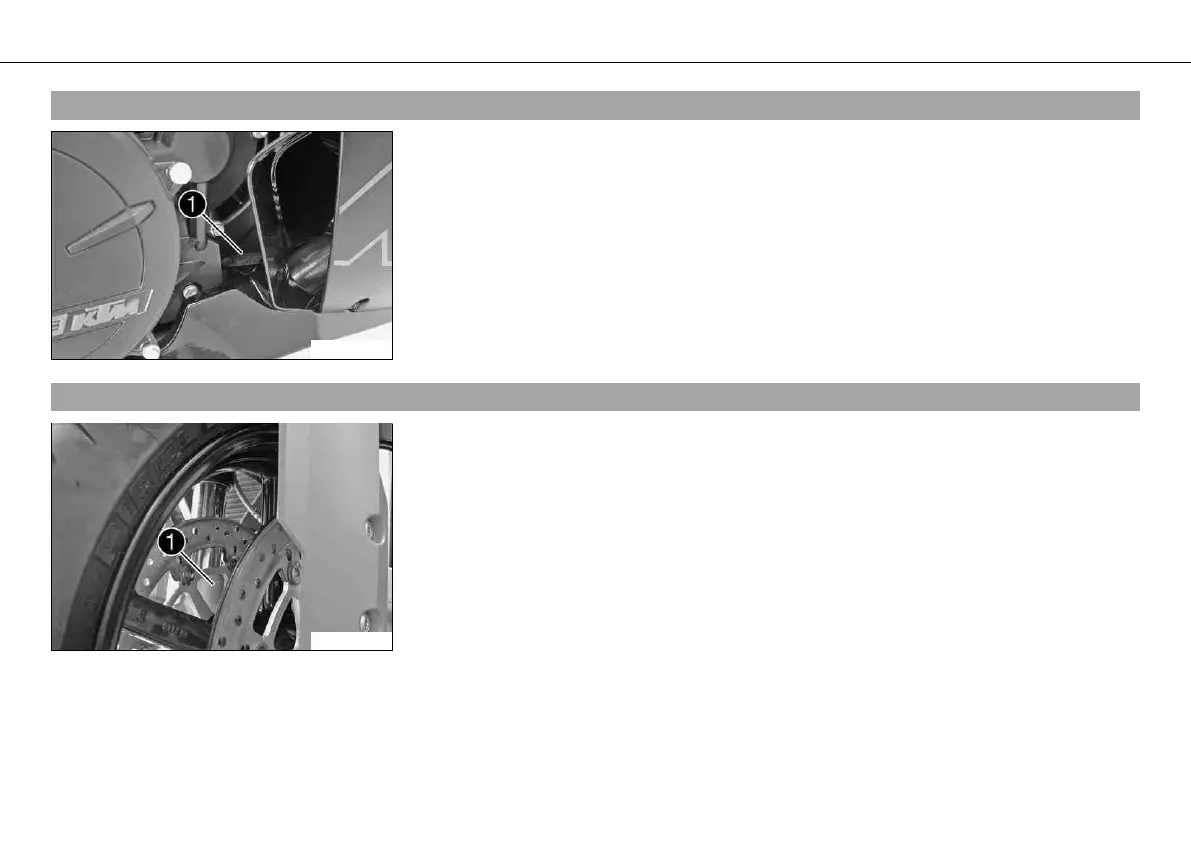

4.3Engine number

700223-01

The engine number  is stamped on the right side of the engine.

4.4Fork part number

700224-01

The fork part number  is stamped on the inner side of the fork stub.
