MAINTENANCE WORK ON CHASSIS AND ENGINE 181

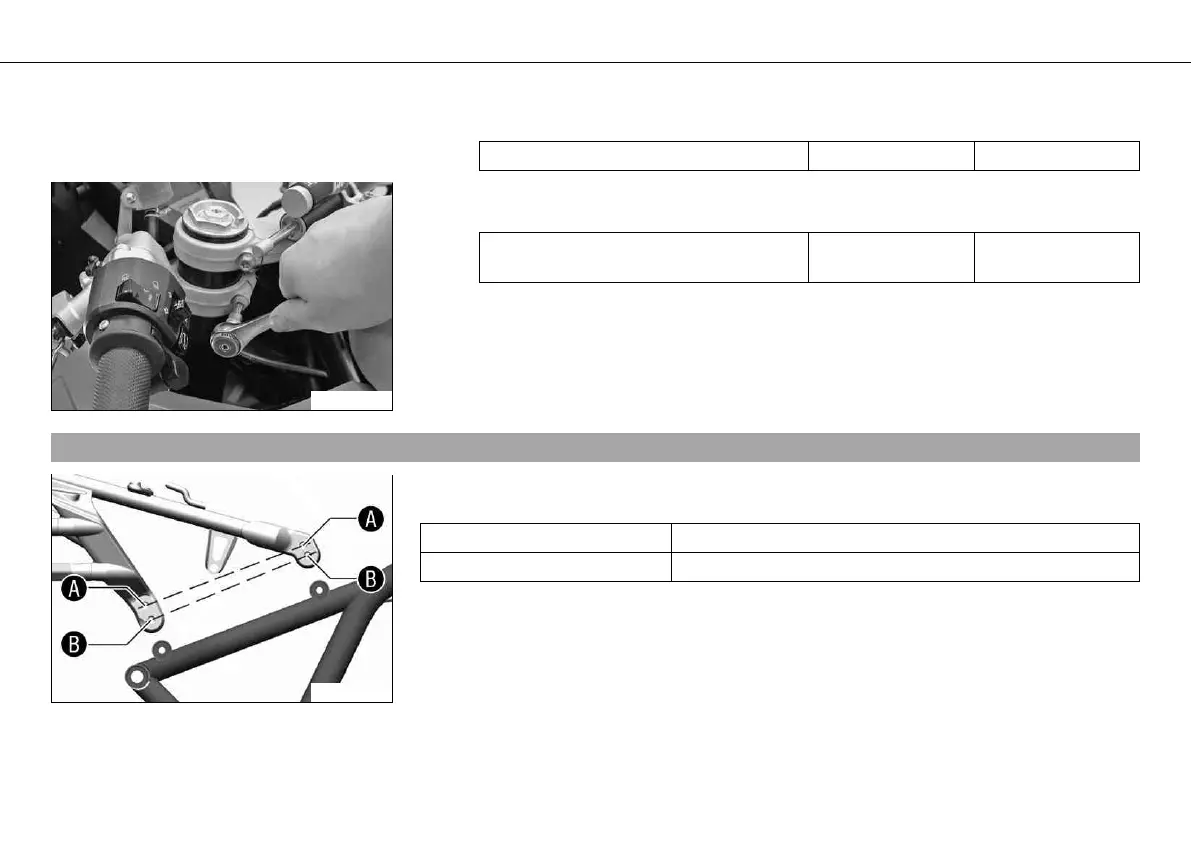

– Mount and tighten the screw.
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)
700362-01
– Tighten the screw.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Move the handlebar to and fro over the entire steering range.
» If the cables restrict the freedom of movement of the steering:
– Correct the cable routing.
9.75Rear frame position
400439-10
The frame rear height can be set to two different positions, enabling ergonomic adjustment
of the seat height.
Seat height (standard) 805 mm (31.69 in)
Seat height 825 mm (32.48 in)
