KTM 1190 RC8 User Manual

MAINTENANCE WORK ON CHASSIS AND ENGINE 179
9.74Adjusting the handlebar height
Info
The handlebar stub position must be identical on the left and right of the vehicle.
700318-01

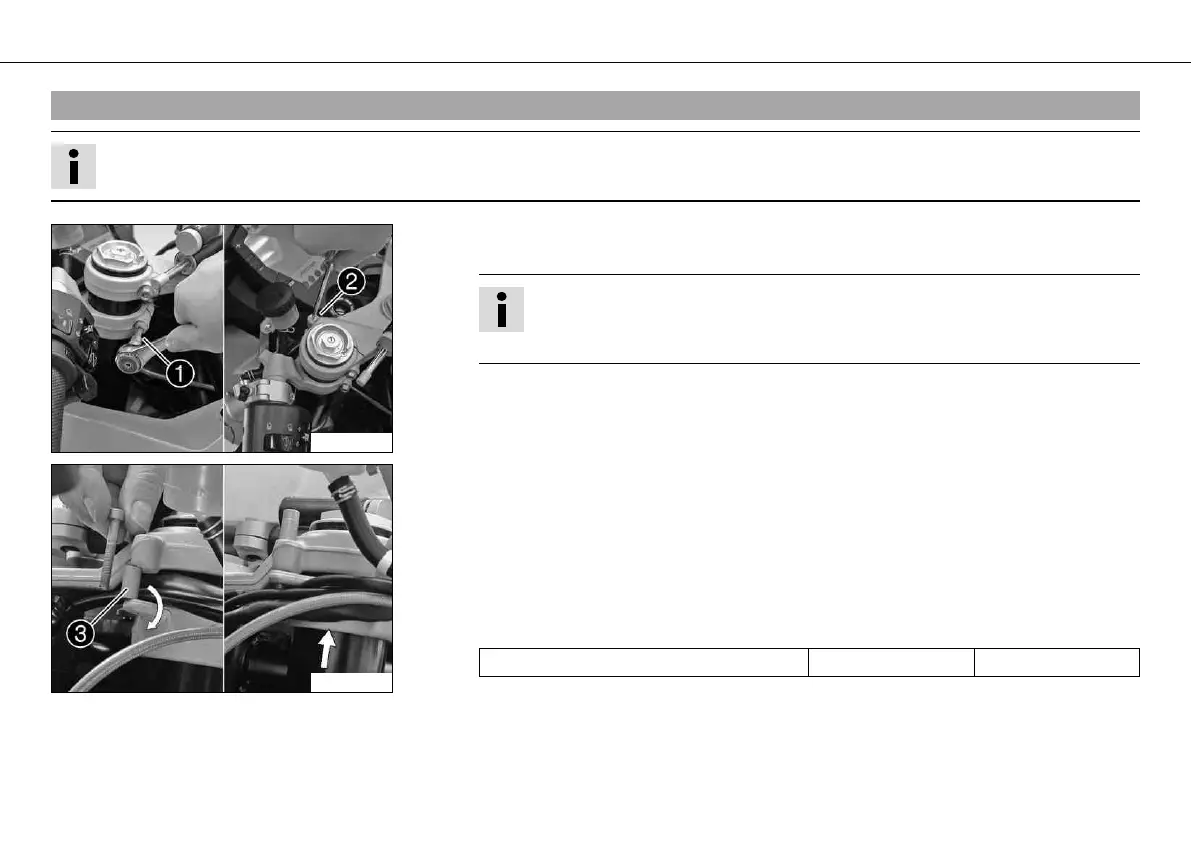

Adjusting the high position of the handlebar stubs:
– Loosen screw .
Info
Loosen the screw several turns to prevent damage to the fork lacquer when
moving the handlebar stub.
– Remove screw .
700319-01
– Remove distance sleeve .
– All cables routed under the upper triple clamp must now be routed under the han-
dlebar stub.
– Push the handlebar stub carefully up to the upper triple clamp.
– Position the distance sleeve above the triple clamp.
– Mount and tighten the screw.
Guideline
Remaining chassis screws M5 5 Nm (3.7 lbf ft)

KTM 1190 RC8 Specifications

General

Engine Type	V-Twin, 4-stroke
Displacement	1195 cc
Transmission	6-speed
Cooling	Liquid cooled
Fuel Tank Capacity	16.5 liters
Rear Brakes	Single 220 mm disc, Brembo 2-piston caliper
Seat Height	805 mm
Front Suspension	WP USD Ø 43 mm
Rear Suspension	WP monoshock
Front Brakes	2 x 320 mm discs, radially mounted Brembo 4-piston calipers
Frame	Chromium-Molybdenum tubular space frame, powder-coated
