KTM 1190 RC8 - Opening the Filler Cap

To Next Page

To Previous Page

OPERATING ELEMENTS 72

5.52Opening the filler cap

700235-01

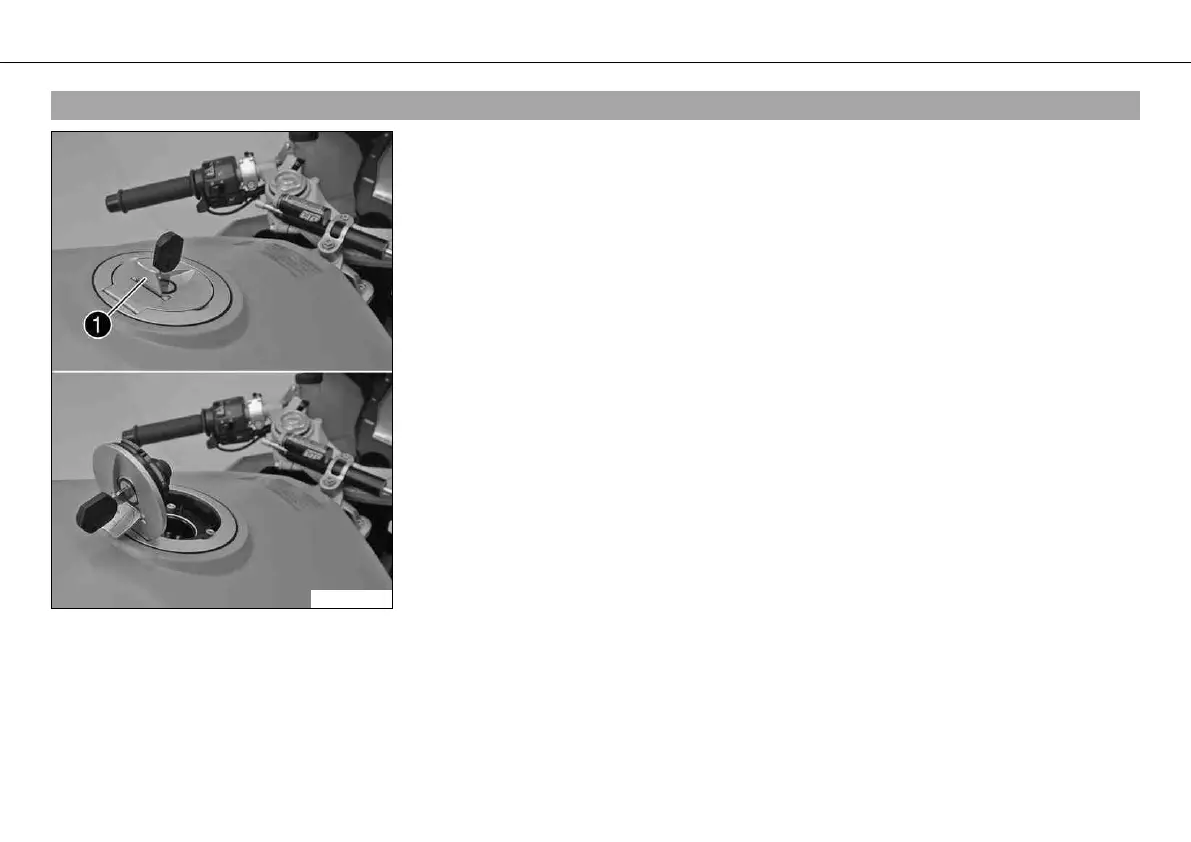

– Lift the cover  of the filler cap and insert the ignition key in the lock.

– Turn the ignition key clockwise until the filler cap opens.

– Open the filler cap.
