MAINTENANCE WORK ON CHASSIS AND ENGINE 149

– Switch off all power consumers and switch off the engine.

– Remove the seat. ( p. 146)

700276-10

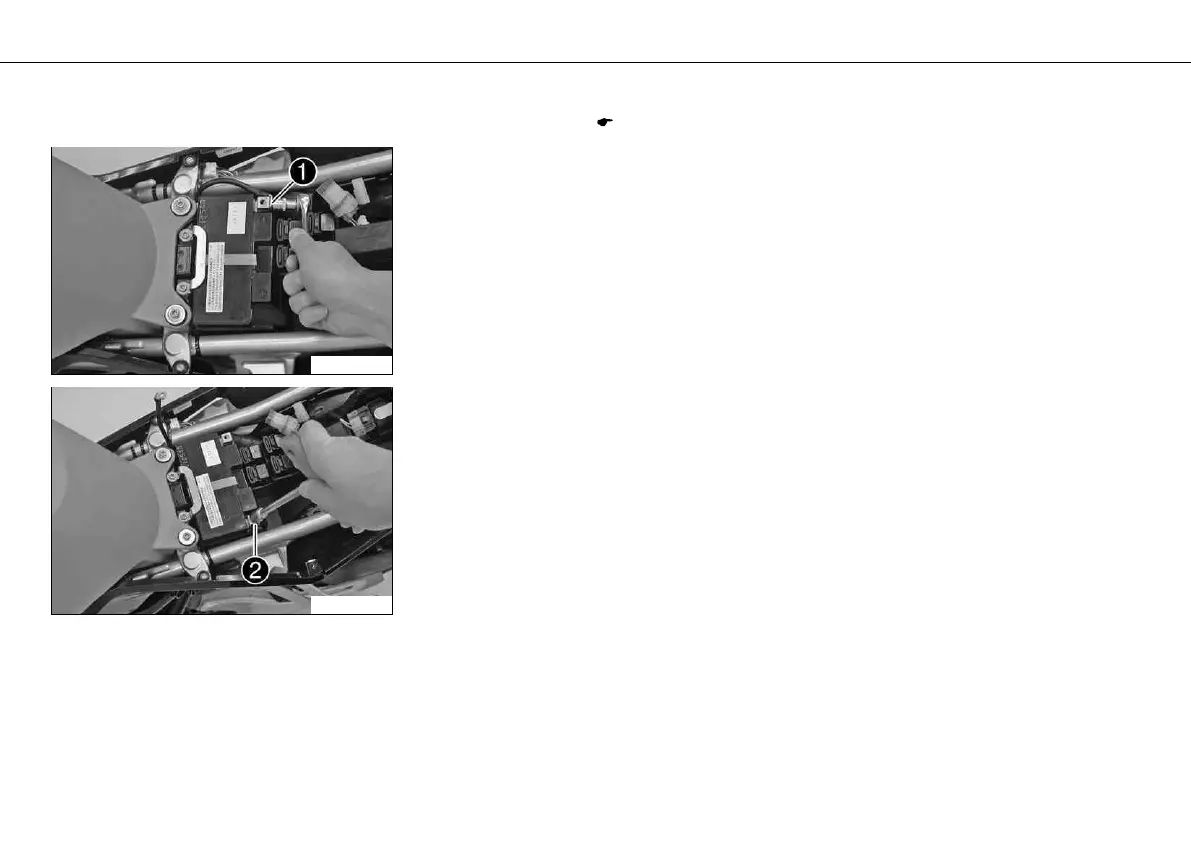

– Disconnect the negative (minus) cable  of the battery.

700277-10

– Remove the plus pole cover.

– Disconnect the positive (plus) cable  of the battery.
