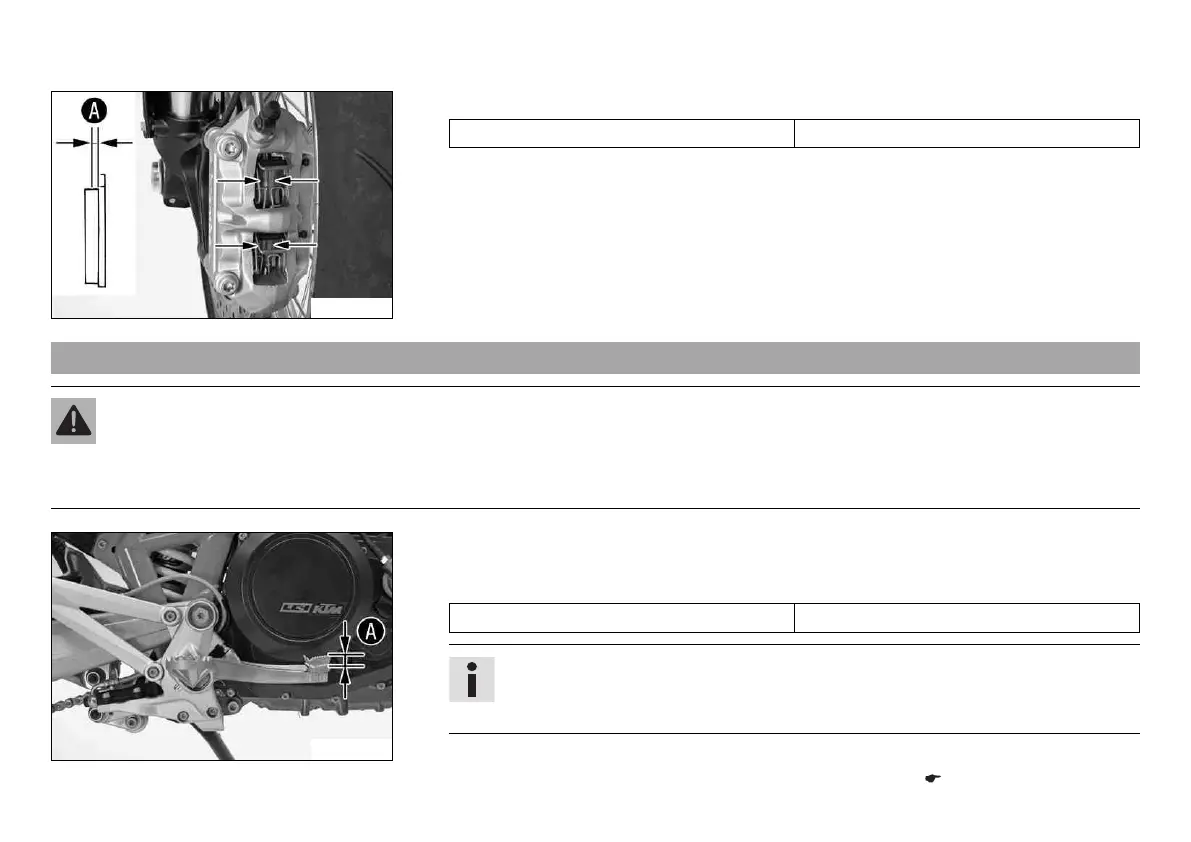

12 BRAKE SYSTEM 90
601895-10
Check the brake linings for minimum thickness A.
Minimum thickness A 1 mm ( 0.04 in)
» If the minimum thickness is less than specified:
Change the front brake linings. x
Check the brake linings for damage and cracking.
» If there is wear or tearing:
Change the front brake linings. x
12.6 Checking the free travel of foot brake lever
Warning
Danger of accidentsBrake system failure.
If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to over-
heating. Adjust the free travel on foot brake lever according to specifications.
601896-10
Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel A.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
Info
You will know that contact has been made with the foot brake cylinder piston
when there is increased resistance when you activate the foot brake lever.
» If the free travel does not meet specifications:
Adjust the basic position of the foot brake lever. x ( p. 91)
