Troubleshooting > Clearing Paper Jams

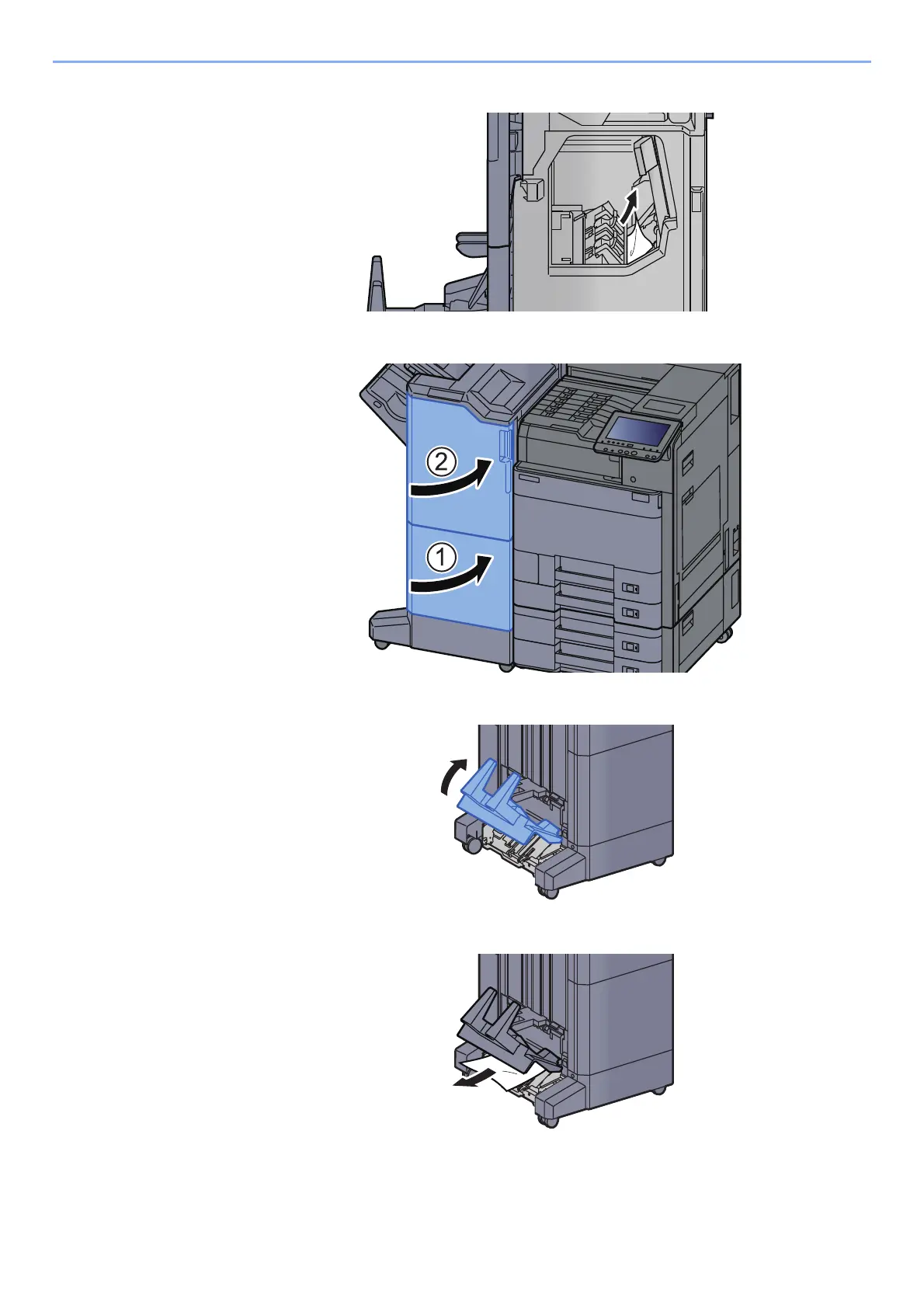

Remove paper from inside the finisher.

Return the covers to the original position.

Lift the folding tray.

Remove any jammed paper.
