4-16
FS-1900
Fuser unit mechanism

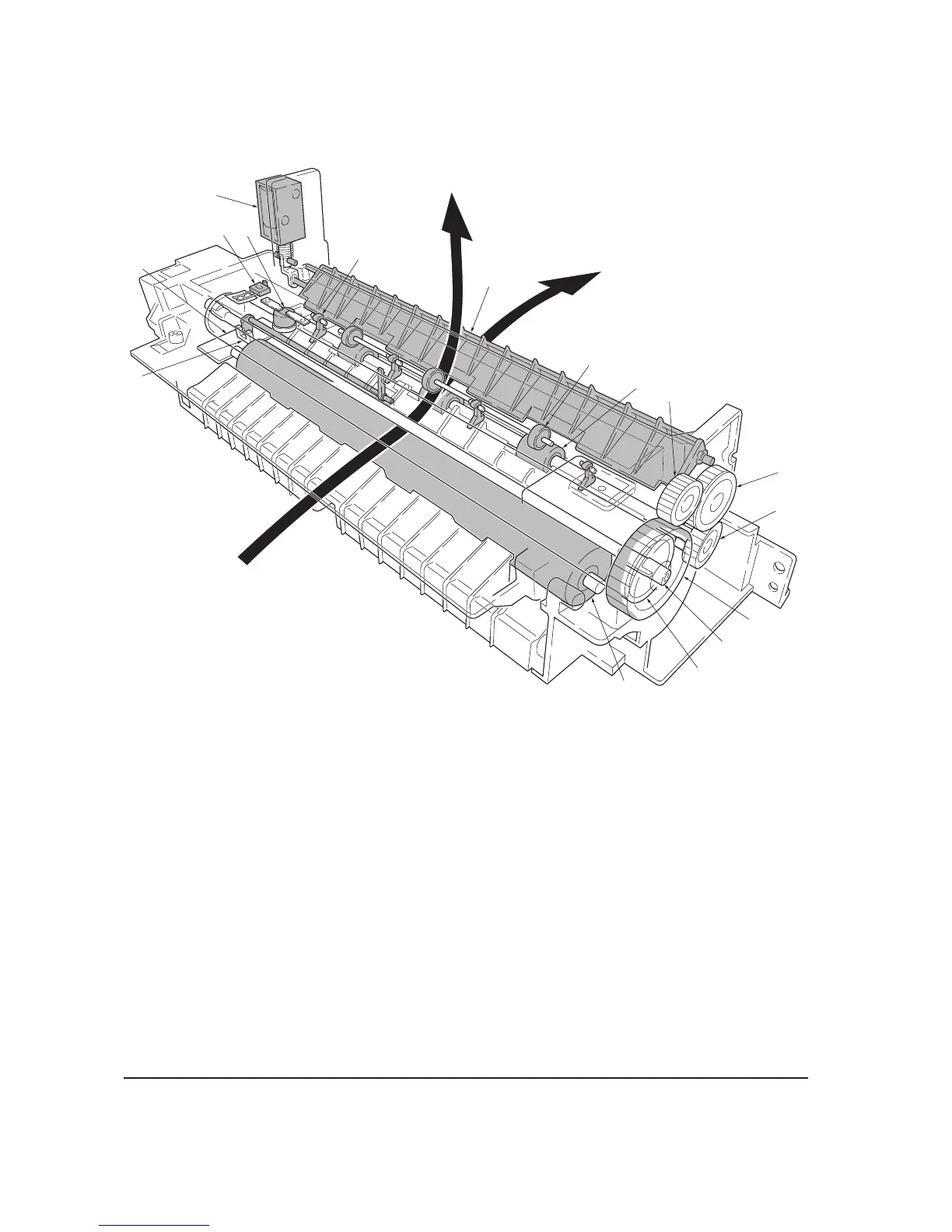

Figure 4-1-14 Fuser unit mechanism
1 Face up/down solenoid
2 Thermistor
3 Thermal cutout
4 Exit sensor
5 Fuser board (KP-756)
6 Press roller
7 Heat roller
8 Exit roller
9 Exit pulley(s)
0 Heat gear Z36
! Exit gear Z21
@ Idle gear Z18
# Idle gear Z28
$ Separator(s)
% Change guide
^ Heater lamp
To face-up
output tray
or option devices
To face-down
output tray
1
4
5
6
!
@
#
9
8
%
$
2
3
Paper from
paper transfer unit
(transfer section)
0
^
7
