7.11.3.1 Router 1 / 2
MENU > I/O CONFIG > ROUTER 1 / 2

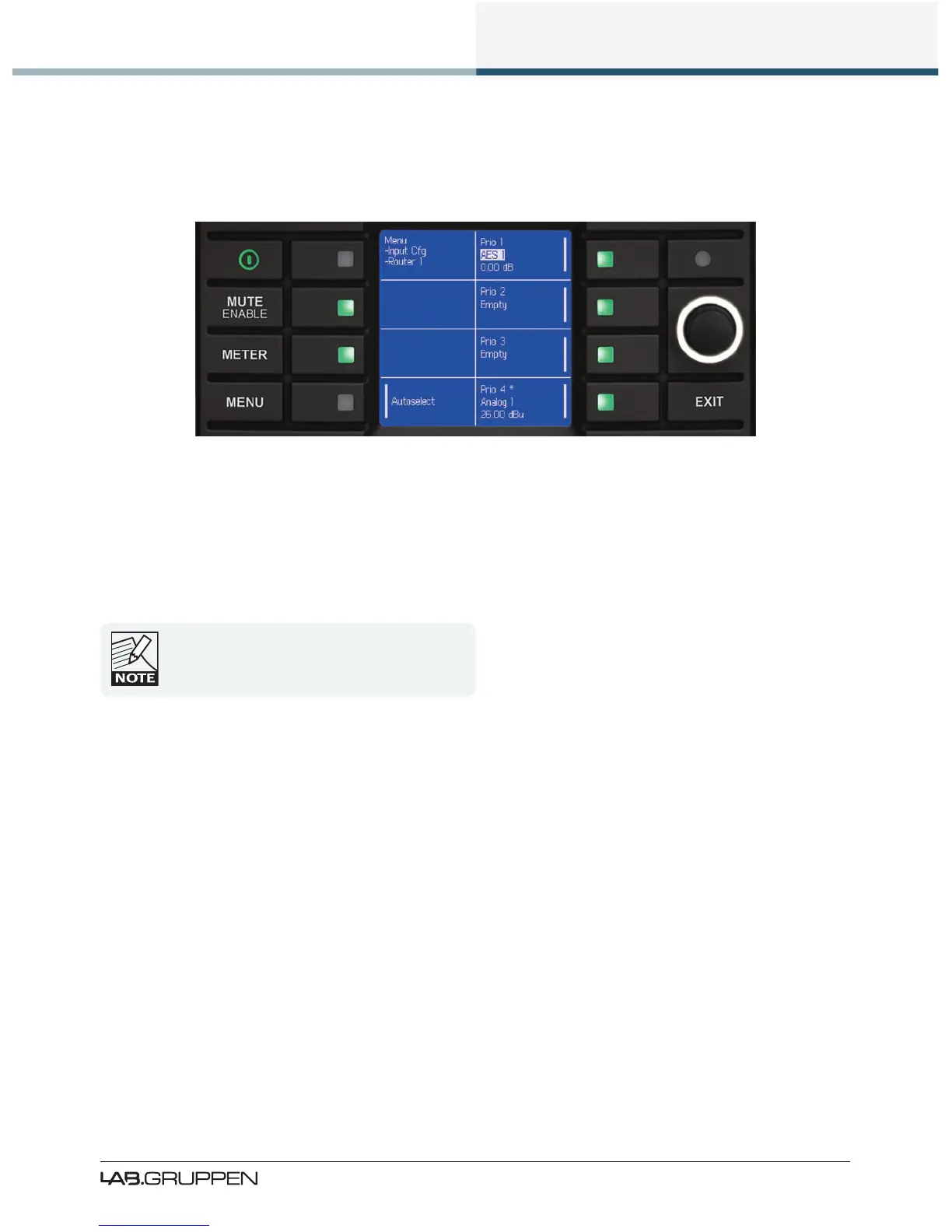

Figure 7-12: Input Router 1
Figure 6-1 on page 26 shows that there are two Input Routers available on PLM Series devices. The input that
is selected within the router can be used by the input mixer for either Module A or Module B.
Each router has four priority levels allowing any input to be placed in a sequence providing automatic input
signal fail over. AES3 and Dante inputs have priority over analog inputs.
Only one analog input is allowed in each router, and
the analog input must be at the lowest priority level
in relation to any other inputs.
Two modes of input selection are available, Auto Select and Forced Selection. The selected setting is also
visible from the I/O STATUS screen on the front panel, and via the Lake Controller.
In Auto Select mode, Priority 1 is checked for a valid input signal; if no signal is found, Priority 2 is checked,
and so on until a valid signal is located; this process occurs if the currently selected input fails. In Forced
Selection mode, one of the four priorities is xed regardless of whether a valid signal is present.
With a router selected on the front panel, press the middle button on the left of the LCD to activate this
parameter for editing; the text will be highlighted as shown in Figure 7-12. Use the illuminated rotary encoder
to scroll through the following options:
▸ Auto Select (default)
▸ Force Priority 1
▸ Force Priority 2
▸ Force Priority 3
▸ Force Priority 4
