Front Panel Interface
PLM Series Operation Manual rev 1.1.9
To recall an existing Frame Preset, use the rotary encoder to select the required Preset then press the
RECALL button to overwrite the current conguration.
Frame Presets must initially be created in the Lake
Controller, and stored as a Preset using the Lake
Controller or Lake Preset Manager.
Up to 100 Frame Presets can be stored in the device. The data within a Frame Preset includes the congura-
tion of all Modules in the Frame including levels, crossovers, EQ, input mixer, and output routing.
As Frame Presets are stored within the device, complete processor congurations can be recalled without
connecting the device to a PC.
7.11.8 Load Monitor Menu (LoadSmart)
MENU > LOAD MON

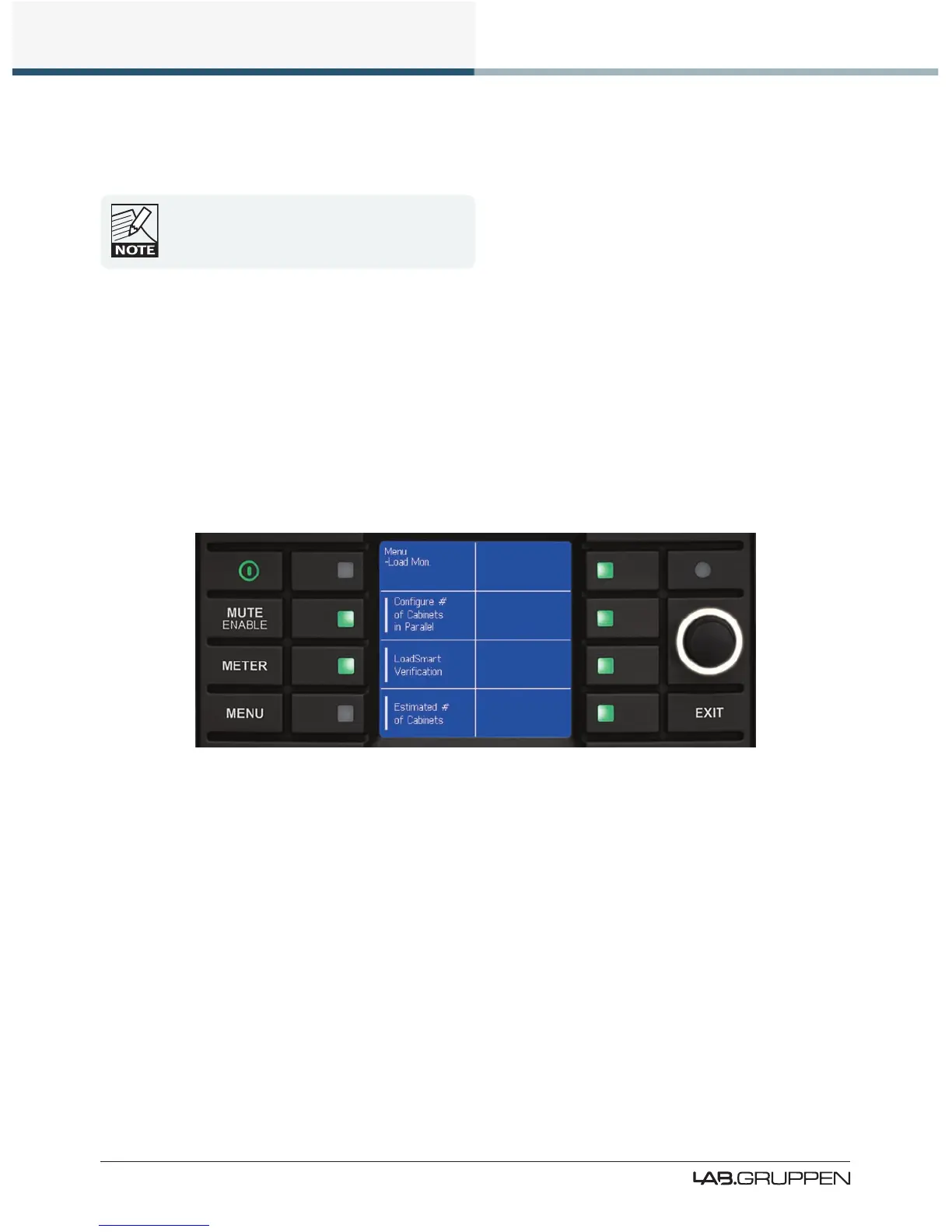

Figure 7-19: Load Monitor Menu
7.11.8.1 Congure # of Cabinets in Parallel
This option allows selection of the number of speaker cabinets connected to each PLM output channel.
Select individual or multiple outputs and use the rotary encoder to set the value from 1 to 4. This value is
used by LoadSmart and SpeakerSafe to conrm the correct connection and status of the speakers con-
nected to each PLM channel.
7.11.8.2 LoadSmart Verication
Select this option to initiate LoadSmart verication, then select YES to continue. LoadSmart performs a
rapid test of all output channels, and displays the results on the LCD a few seconds later.

Lab.gruppen PLM Series Specifications

General

DSP	Yes
Network	Ethernet
Connectors	XLR, SpeakON
Cooling	Forced air
Protection Features	Overheat, DC, short circuit
Control Software	Lake Controller
