Front Panel Interface
47
PLM Series Operation Manual rev 1.1.9
For simplicity, the following sections refer to the
buttons by their associated name on the LCD
screen. E.g. ‘Press GAIN’ equates to ‘Press the
button adjacent to the Gain label on the LCD’.
7.11.2 Module Submenu
MENU > MODULE

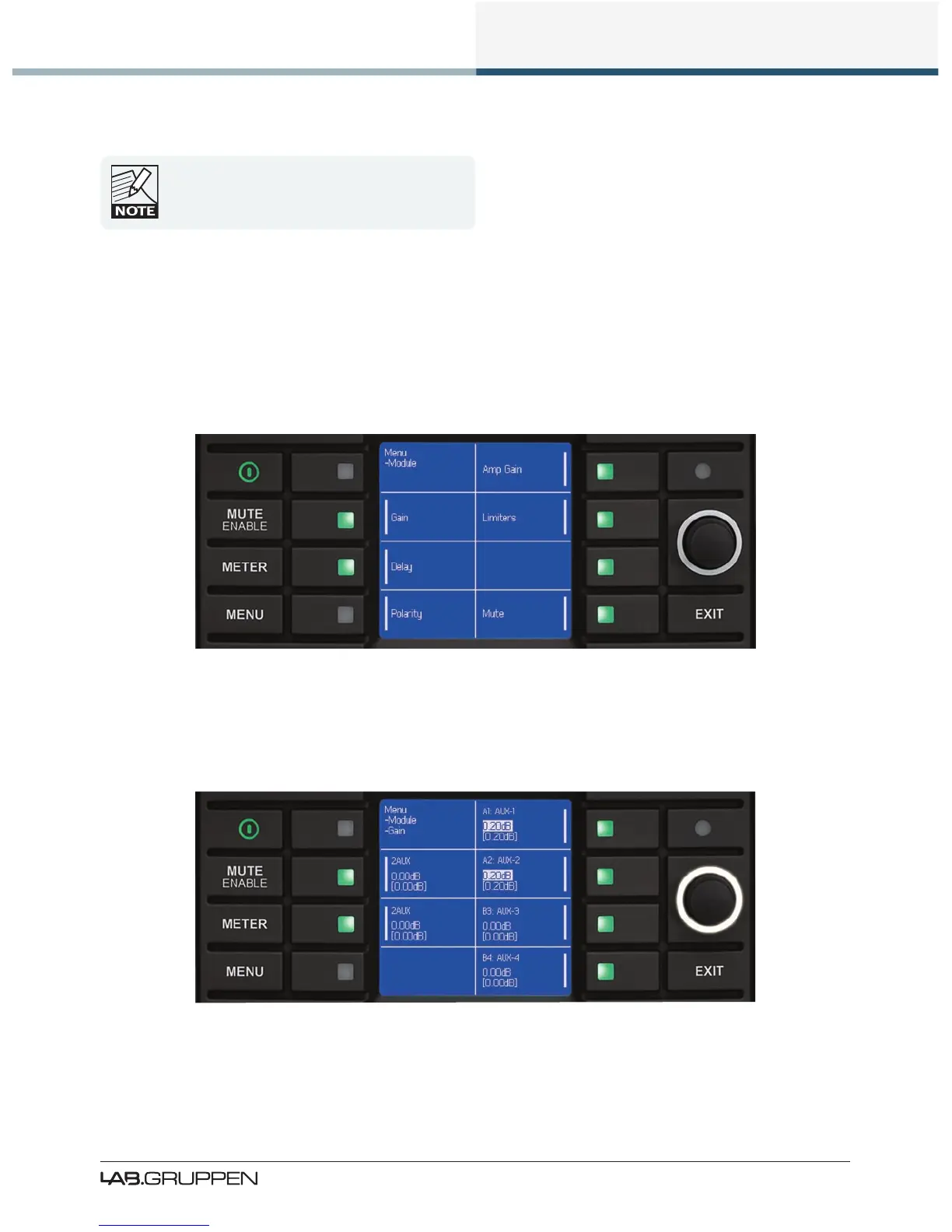

After selecting the Module Menu, the screen shown in Figure 7-9 is displayed. Press the illuminated button
adjacent to the required option to view or edit the associated parameters.
Figure 7-9: Module Submenu
7.11.2.1 Gain
MENU > MODULE > GAIN
Figure 7-10: Module Gain Edit Screen
To Next Page
