7.11 Menu Mode
7.11.1 Overview
The majority of functions can accessed via Menu Mode on the front panel. These functions include
the adjustment of gain, delay, limiters, input and output routing, and the ability to recall Frame Presets.
Menu Mode can be accessed at any time by pressing the MENU button.
After pressing the MENU button, various submenu options are displayed as shown in
Figure 7-1.

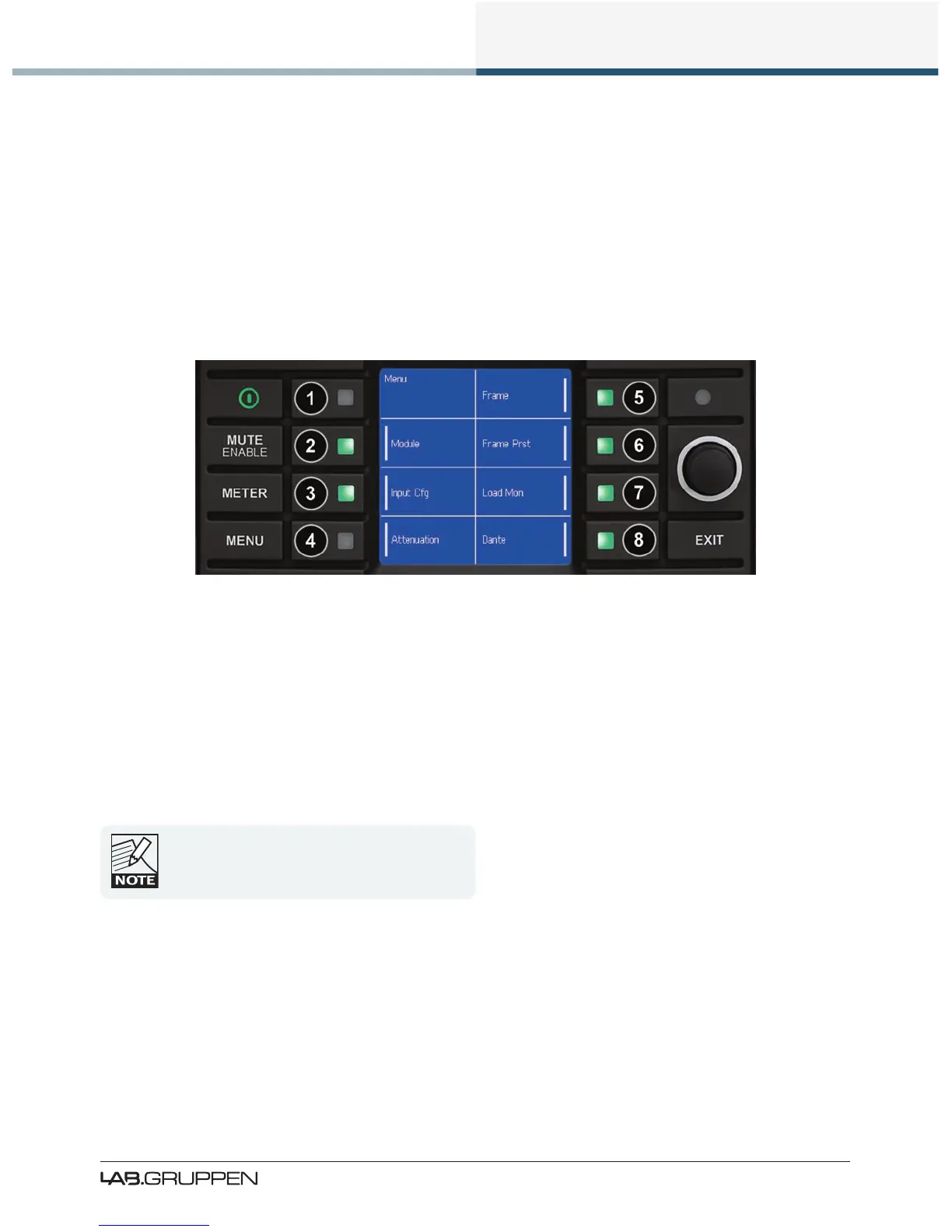

Figure 7-8: Menu Mode > Main Menu
Press the illuminated button adjacent to the required option to display an associated submenu. When
parameter level is reached, individual parameters may be selected for adjustment by pressing the adjacent
button. The selected parameter value/s are highlighted, and are adjustable using the rotary encoder.
A parameter may be adjusted simultaneously across multiple channels by selecting all values to be adjusted;
any current value offsets are retained. Some parameters default to multiple selection, with all inputs or
outputs adjusted simultaneously. Changes are effected in real-time and a stored without further conrma-
tion. Pressing EXIT returns to the previous menu level, automatically retaining any parameter changes.
All parameters are editable via the Lake Controller
unless specied otherwise.
7.11.1.1 Parameters with Individual Values and Group Totals
The following parameters display two values:
▸ MODULE > GAIN
▸ MODULE > DELAY
▸ MODULE > LIMITERS > MAXRMS LEVEL

Lab.gruppen PLM Series Specifications

General

DSP	Yes
Network	Ethernet
Connectors	XLR, SpeakON
Cooling	Forced air
Protection Features	Overheat, DC, short circuit
Control Software	Lake Controller
