97Expert(t) 2000
TM
Maintenance Manual
the ball valve (slide towards the
front of the vehicle);

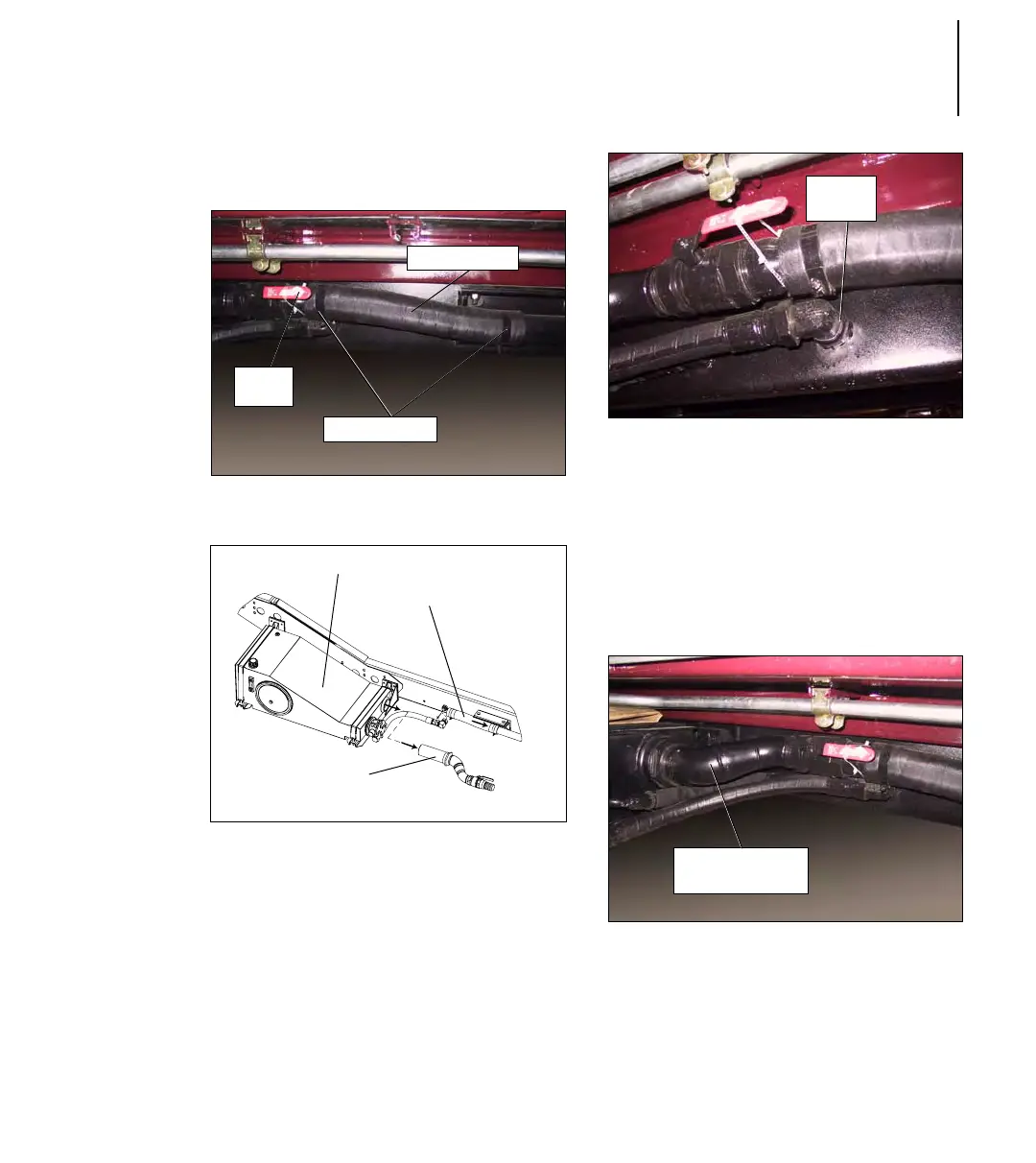

Figure 150. Suction hose
Figure 151. Strainer removal
10. Disconnect the swivel bulkhead
of the pressure return hose to
allow the ball valve assembly to
turn freely when the strainer is
loosened (Figure 152. “Swivel
fitting”);
Figure 152. Swivel fitting
11. Remove the strainer from the
tank port (Figure 153. “Strainer/
Ball Valve Assembly” & Figure
155. “Vane pump”). The strainer
has to be turned
counterclockwise to be removed;
Figure 153. Strainer/Ball Valve
Assembly
Suction Hose
Ball
Valve
Hose Clamps
Hydraulic Tank
Strainer/Ball Valve
Assembly
Suction Hose
Swivel
Fitting
Strainer/Ball Valve
Assembly
