81Expert(t) 2000
TM
Maintenance Manual

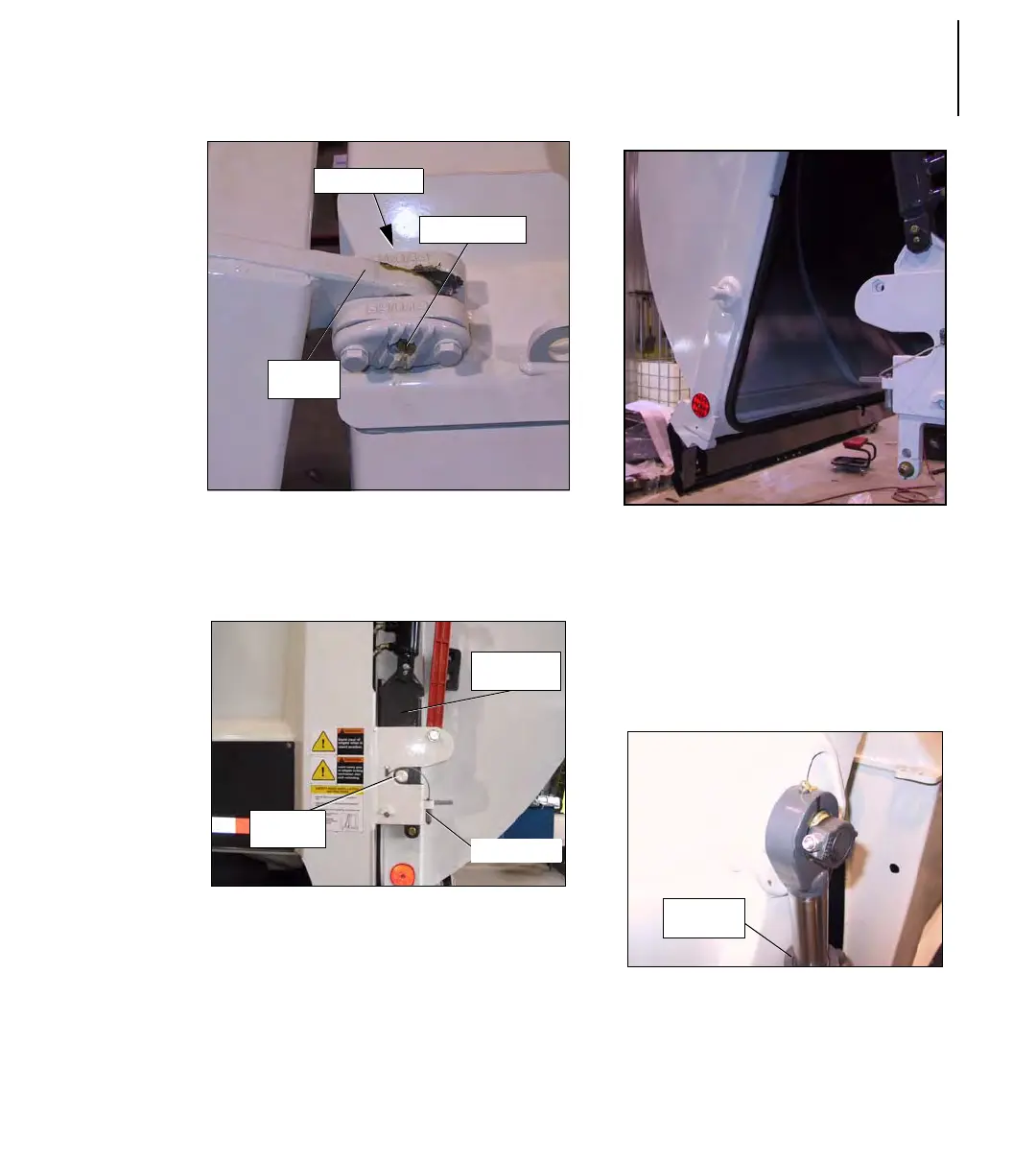

Figure 130. Right side tailgate hinge
and pin
Wear on the locking mechanism;
Figure 131. Tailgate locking
components
Wear on the tailgate lock pins;
Tailgate rubber seal.
Figure 132. Tailgate rubber seal
Tailgate Seal and Hinges
Inspection
Tailgate hinge pins must not have any
sign of wear or metal fatigue.
Figure 133. Right-hand side tailgate
cylinder
Tailgate Pin
Tailgate
Hinge
Retaining Bolt
Safety Pin
Locking
Mechanism
Tailgate
Lock Pin
Cylinder
Head
