18 CHAPTER 2
Controls

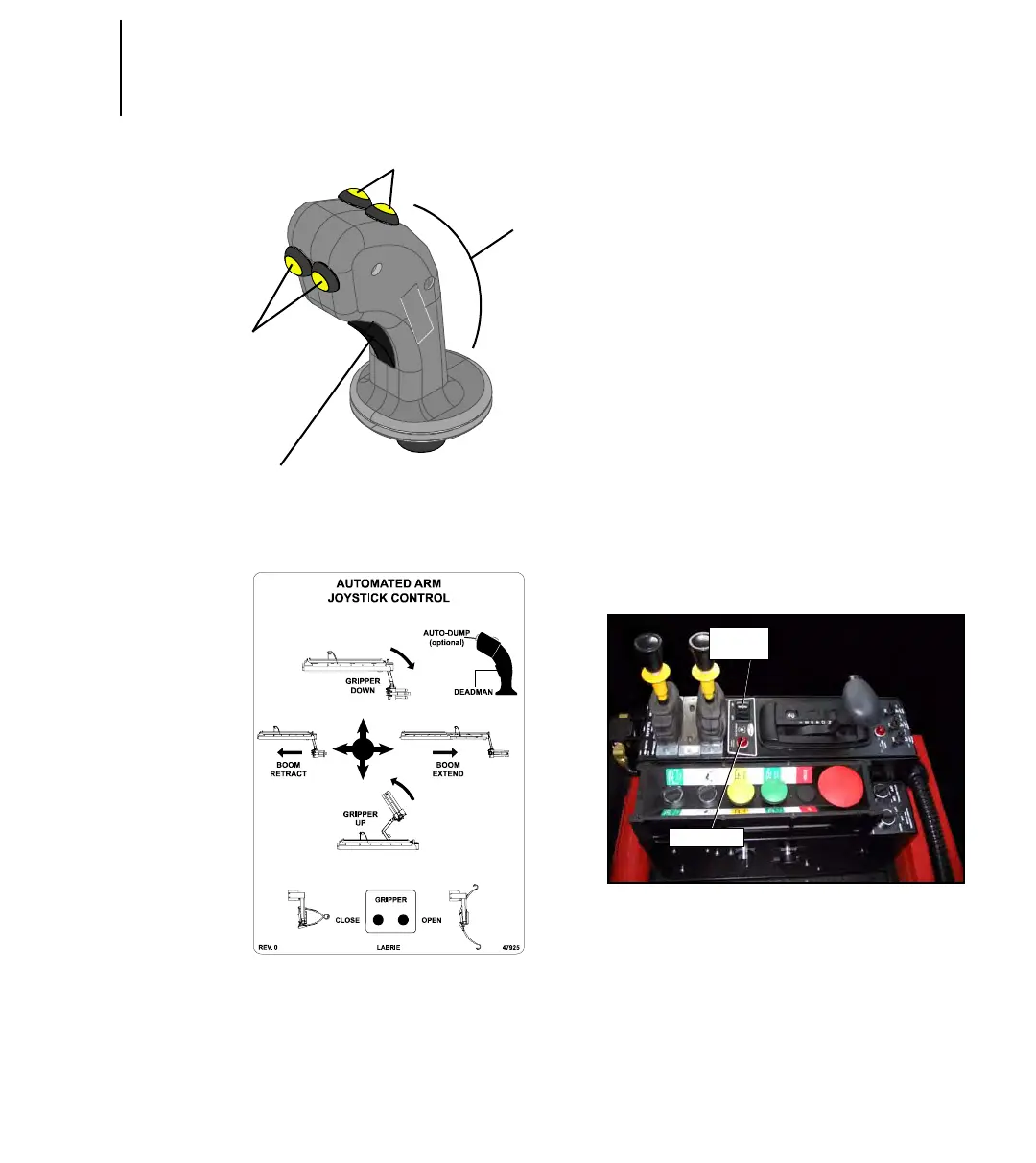

Figure 11. Helping Hand
TM
joystick
Figure 12. Helping Hand
TM
joystick
functions
Pump Switch
The pump switch engages the
Expert(t) 2000
TM
hydraulic system and
enables all body control and functions.
This switch is also called “PTO switch”.
When it is turned
ON, a red pilot light on
the dashboard is turned on to indicate
that the hydraulic system is engaged.
Note:The pump switch can only be
turned on when the engine
RPM is lower than 900 and the
air pressure is higher than
70 PSI. It is recommended to
raise the engine RPM only
after the hydraulic system is
engaged.
Figure 13. Pump switch and pilot
light on the console
Gripper functions buttons
Deadman switch
Handle
Autodump control
buttons (optional)
Pump
switch
Pilot light
