21Expert(t) 2000
TM
Maintenance Manual
Green Start Cycle
Button
The green START CYCLE button activates
the packer for a full cycle. A full
packing cycle lasts approximately
15 seconds with the engine running at
1200 RPM.
Note:When the multi-cycle feature
is in use, the green button
activates the packer for the
number of cycles defined on
the multi-cycle module. For
more information, see
“Changing Packer Multi-cycle
Settings” on page 46.

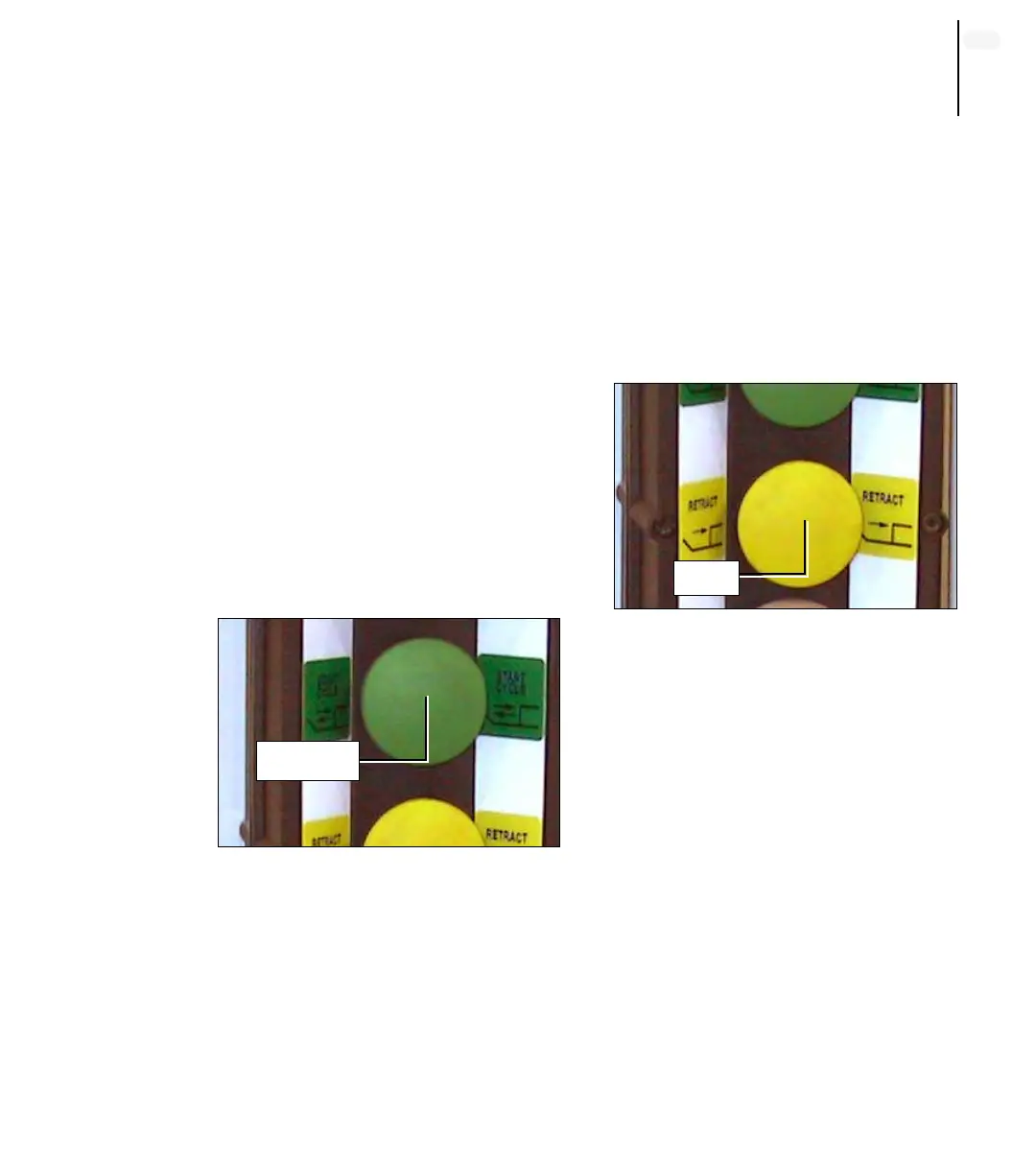

Figure 17. Start Cycle button
Yellow Retract Button
The yellow RETRACT button activates the
packer for a retract stroke to bring it
back to the home position. Such
control is very useful when the body is
full and the load in the body does not
allow the packer to reach the end of its
extend stroke.
Figure 18. Retract button
Start Cycle
button
Retract
button
