71Expert(t) 2000
TM
Maintenance Manual
Swivel-style Panel
Removal and Wear Pad
Replacement
To remove the swivel-style panel
and replace the wear pad, apply the
following procedure:
1. Make sure the parking brake is
applied and the vehicle is tagged
out for maintenance purposes
(refer to “Lockout/Tagout
Procedure” on page 8);
2. Start the engine and engage the
hydraulic system;
3. Disable the speed-up system on
the console (Figure 112. “In-cab
console from right-hand side
driving position”) by pulling out
the
SPEED-UP INHIBITOR switch;

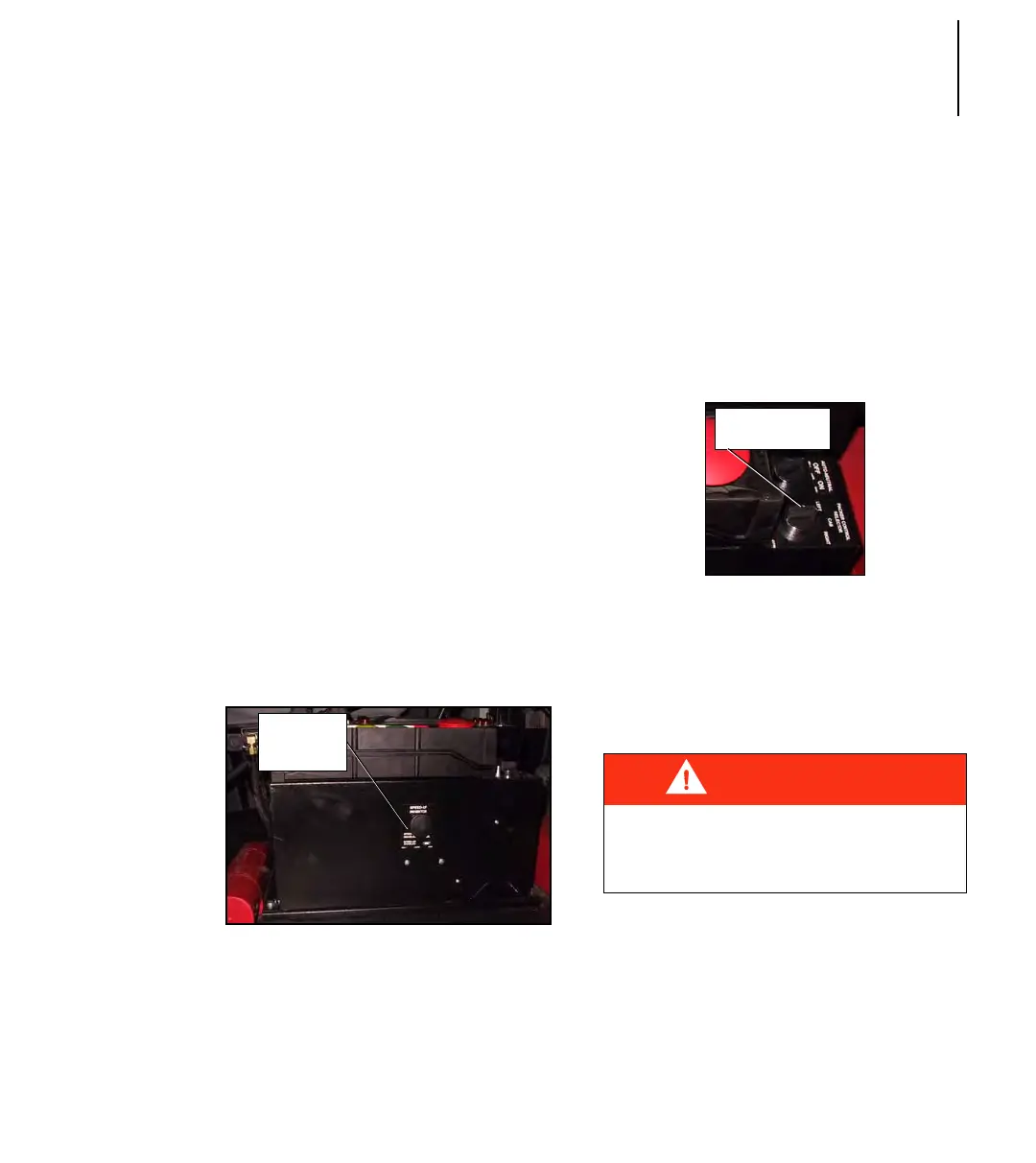

Figure 112. In-cab console from
right-hand side driving position
4. Using the selector switch on the
console, select the right-hand
side packer control station
(Figure 113. “Packer Control
Selector”).
Note:This switch exists only on
vehicles equipped with
multiple packer control
stations;
Figure 113. Packer Control Selector
5. Fully extend the packer;
6. Press the red emergency stop
button to keep it at this position;
7. Disengage the hydraulic pump
and stop the engine.
8. Using the handle at the upper left
corner of the panel, bring the
swivel-style panel to a vertical
Speed-Up
Inhibitor
Switch
DANGER
NEVER CLIMB IN THE HOPPER WHILE
THE
ENGINE IS RUNNING.
Packer Control
Selector
