67Expert(t) 2000
TM
Maintenance Manual
Floor Guide
Replacement Procedure
After years of hard work, the floor
guides inside the hopper may require
replacement. The following
step-by-step procedure will help
removing and replacing the floor
guides inside the hopper.
To replace the floor guide, apply the
following procedure:
1. Make sure the parking brake is
applied and the vehicle is tagged
out for maintenance purposes
(refer to “Lockout/Tagout
Procedure” on page 8);
2. Start the engine and engage the
hydraulic system;
3. Disable the speed-up system on
the console (Figure 106. “In-cab
console from right-hand side
driving position”) by pulling out
the
SPEED-UP INHIBITOR switch;

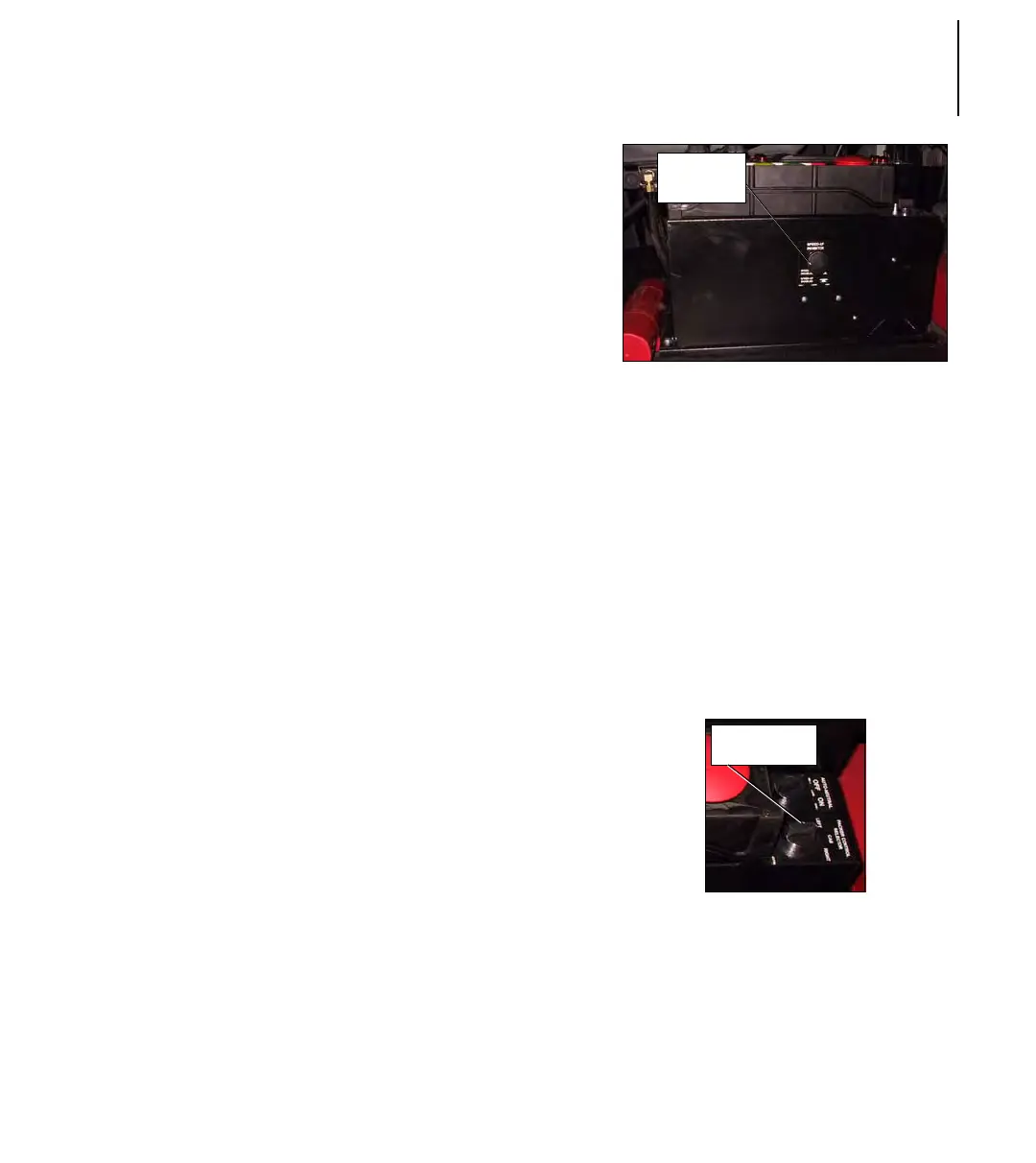

Figure 106. In-cab console from
right-hand side driving position
4. Using the selector switch on the
console, select the right-hand
side packer control station
(Figure 107. “Packer control
selector”);
Note:This switch exists only on
vehicles equipped with
multiple packer control
stations.
Figure 107. Packer control selector
5. Place the optional arm a few feet
away from the body;
Speed-Up
Inhibitor
Switch
Packer Control
Selector
