Maintenance Manual
4. Raise the body until clearing the
safety prop;
5. Lower the safety prop into
position under the body (Figure
160. “Body safety prop”);
6. Lower the body on the prop;

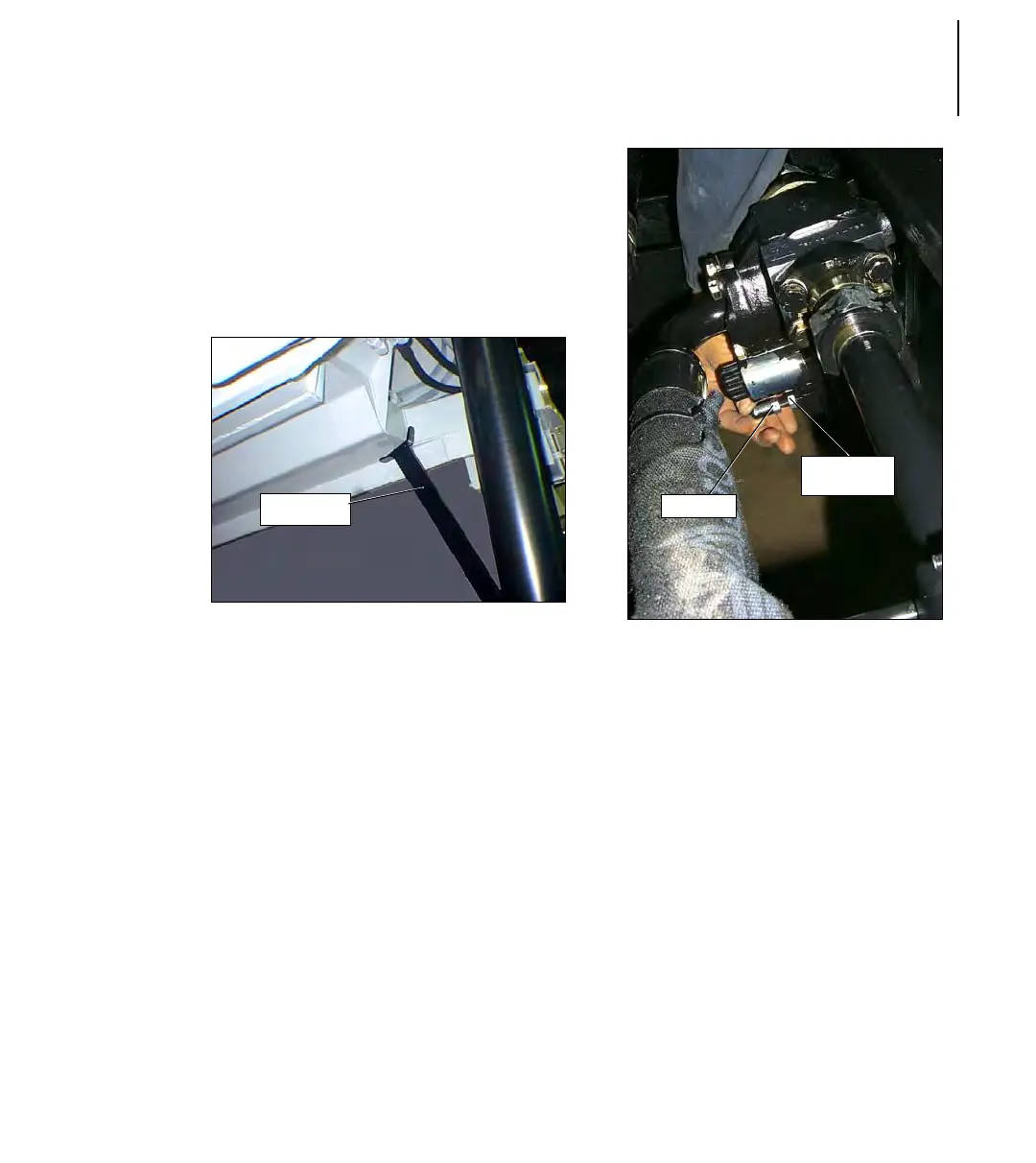

Figure 160. Body safety prop
7. Locate the dump valve inside the
right-hand side frame rail (Figure
156. “Dump valve”);
8. Loosen completely the dump
valve adjustment screw,
removing the lock nut and using
the proper hex key (Figure 161.
“Dump Valve”);
Figure 161. Dump Valve
9. Tighten completely the main
relief valve (Figure 162. “Main
valve”) using the proper hex key;
Safety Prop
Lock Nut
Adjustment
Screw
