125Expert(t) 2000
TM
Maintenance Manual

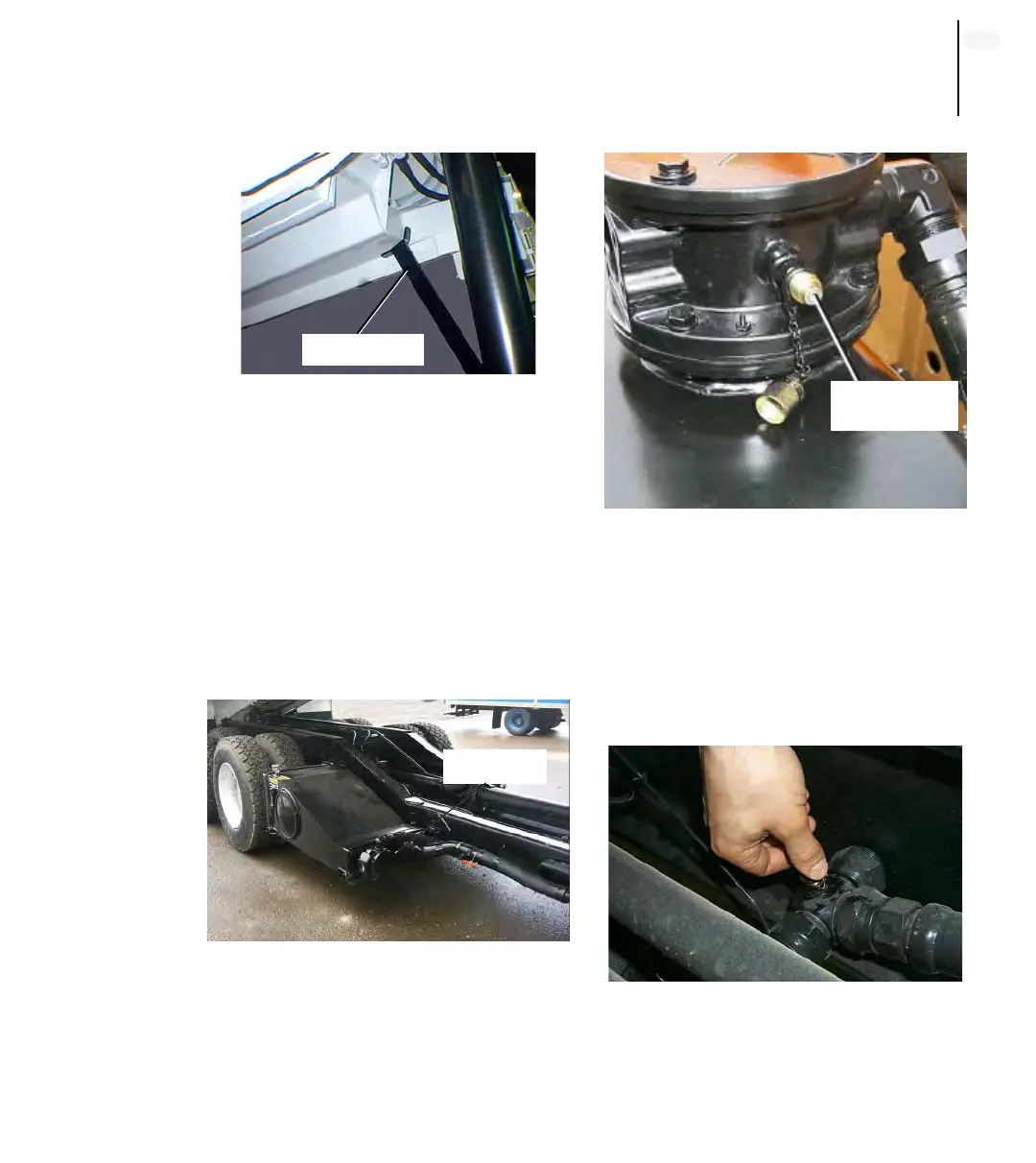

Figure 181. Body safety prop
5. Disengage the pump and stop
the engine;
6. Locate the oil sampler coupler
on the side of the hydraulic tank
(Figure 182. “Standard hydraulic
tank”), or on the top of it in the
case of a saddle type tank
(Figure 183. “Saddle-type
hydraulic tank”).
Figure 182. Standard hydraulic tank
Figure 183. Saddle-type hydraulic
tank
7. Remove the cap from the
coupler and clean the sampler
coupler using a clean rag
(“Sampler coupler” on
page 125);
Figure 184. Sampler coupler
Safety prop
Coupler
Coupler
To Next Page
