41Expert(t) 2000
TM
Maintenance Manual

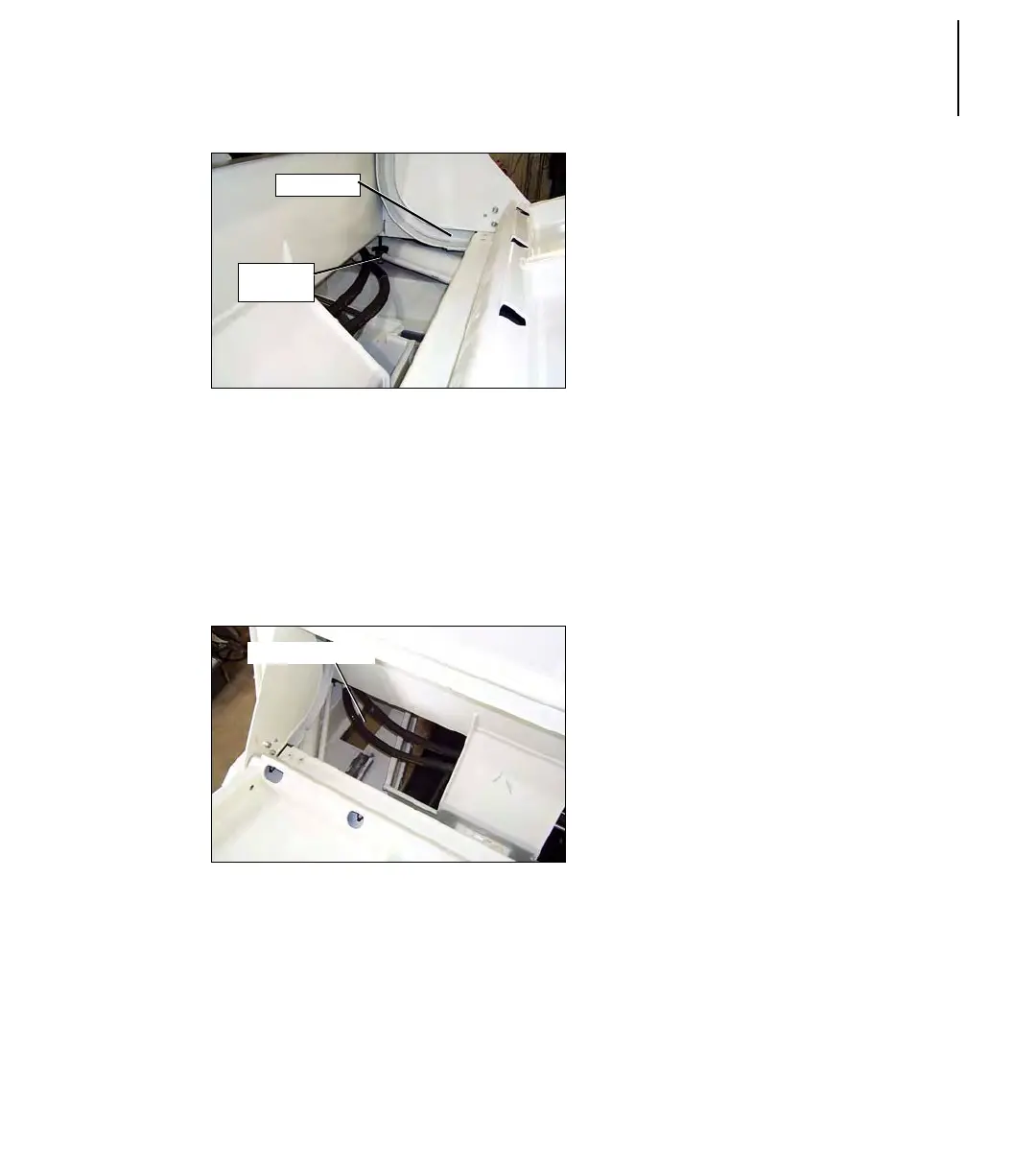

Figure 51. Cylinder bracket and side
rails (left-side view)
22. Rake small pieces of garbage
towards the clean-out traps (see
Figure 52. “Clean-out trap when
the swivel-style panel is
lowered”);
Figure 52. Clean-out trap when the
swivel-style panel is lowered
23. Finish cleaning the area with
pressurized water;
24. Perform a visual inspection of
the hopper area, checking for for
proper working order and/or
alignment, possible leaks in the
hydraulic system and wear on
the mechanical parts, such as:
•Rollers;
Cylinders pins;
Hoses, pipes and
connections;
Proper tightness of bolts;
Check for excessive wear
of the floor and sidewalls of
the hopper;
Check cylinders and hoses
for leaks;
25. After cleaning and inspecting,
raise the swivel-style panel until
the safety pin is leaning against
the side frame (see Figure 53.
“Swivel-style panel safety
devices”);
Cylinder
Bracket
Side Rail
Clean-out Trap
