Note:The packer multi-cycle
function lets you program up
to 8 cycles at a time.
To change the packer multi-cycle
settings:
1. Turn on the engine and the
hydraulic system (
PUMP switch);
2. Apply the parking brake;
3. On the console, turn the
MULTI-CYCLE switch on;
4. Remove the front side panel
located behind the cab on the
left-hand side of the Expert(t)
2000
TM
body;

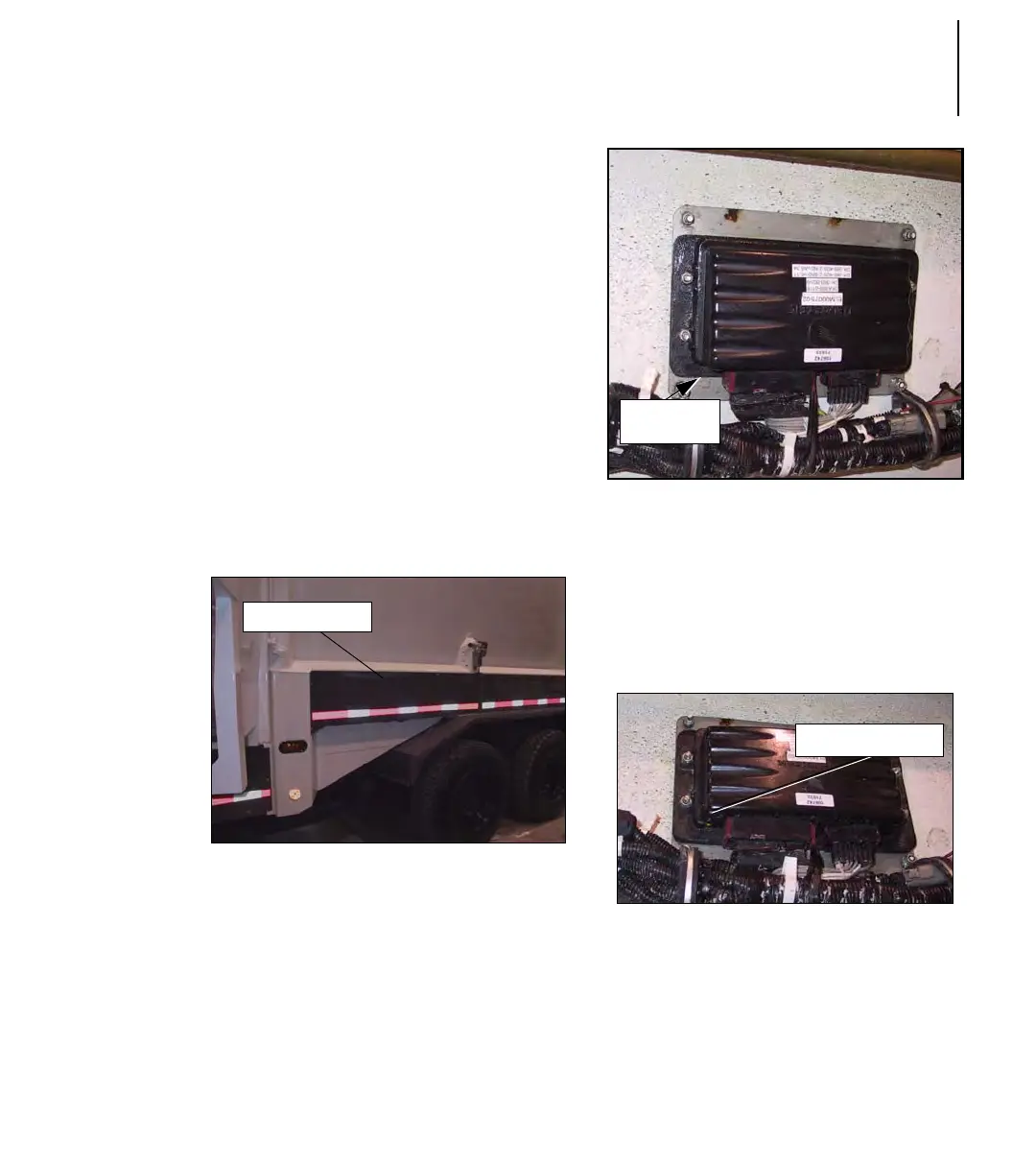

Figure 61. Front side panel
5. Locate the settings switch found
on the harness feeding the
module (see Figure 62. “Packer
multi-cycle module”).
Figure 62. Packer multi-cycle
module
On the bottom left of the packer
module, a green LED flashes on
and off (Figure 63. “Status
LED”);
Figure 63. Status LED
6. Press and hold the button on the
settings switch (see Figure 64.
“Multi-cycle settings switch”) for
Front Side Panel
Green LED
Flashing green LED
