128 Electrical System

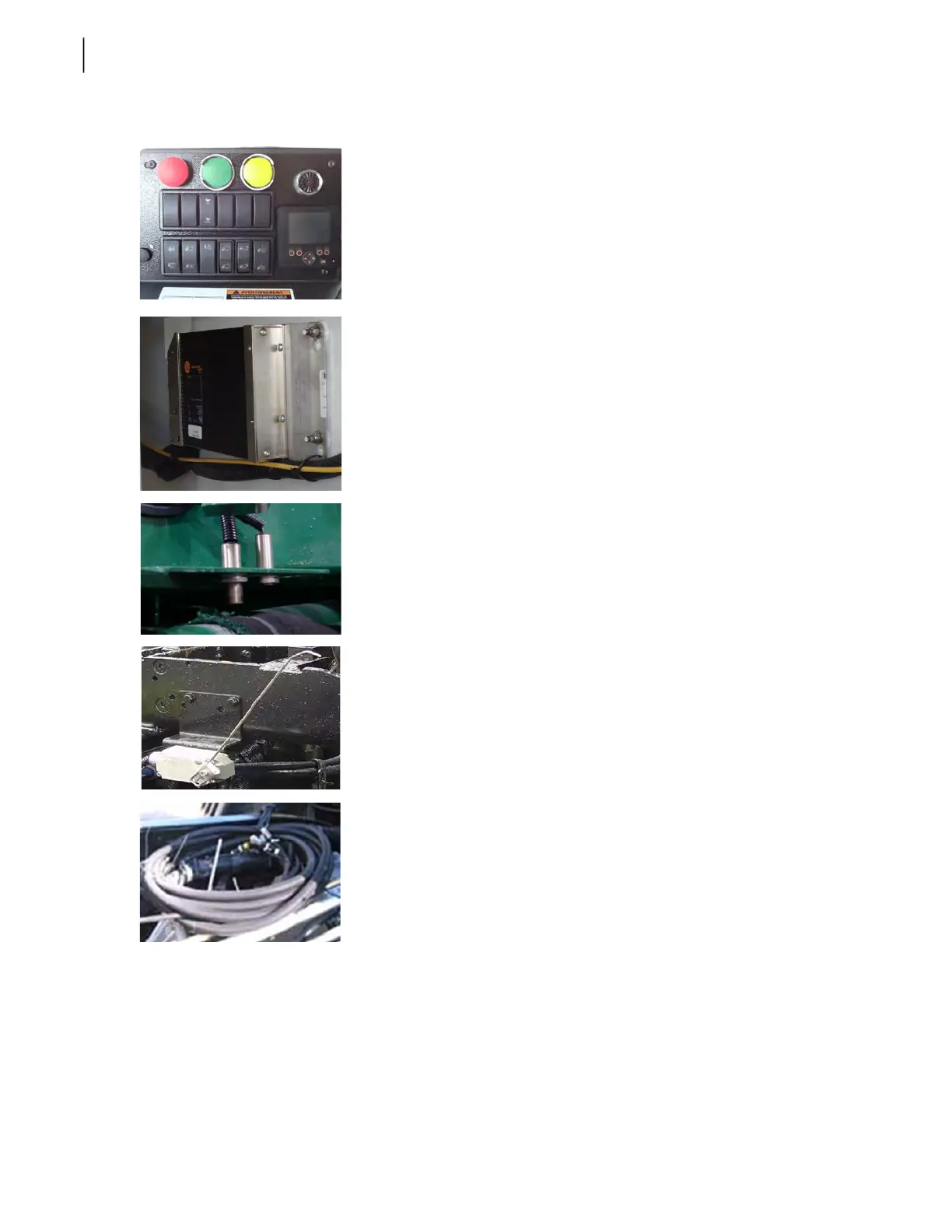

The control panel is centrally mounted in the cab. It has push-
buttons, toggle switches and warning lamps. The multiplexed
monitor may be placed directly on the panel (as illustrated) or fixed
next to it.
Some units also have auxiliary controls located on the curbside or
streetside of the truck.
The multiplex electronic controller makes the truck more reliable by
reducing the number of wires and components. Electrical
maintenance is different from relay logic. The use of this electronic
controller enables mechanics to perform troubleshooting, which
facilitates the debugging process.
Labrie Enviroquip Group offers training on this technology. To learn
more about multiplex electronic controllers and training schedule,
please call LabriePlus.
Proximity switches control packer, crusher panel and tailgate
operations, and provide the means for safety lockouts.
Limit switches control packer, crusher panel and arm operations, and
provide the means for safety lockouts (on hopper doors).
Harnesses connect all electrical components. They are generic and
therefore may contain wires and connectors that are not used. Make
sure unused connectors are always protected by caps in order to
avoid electrical failure.
