16 Safety
Figure 2-6

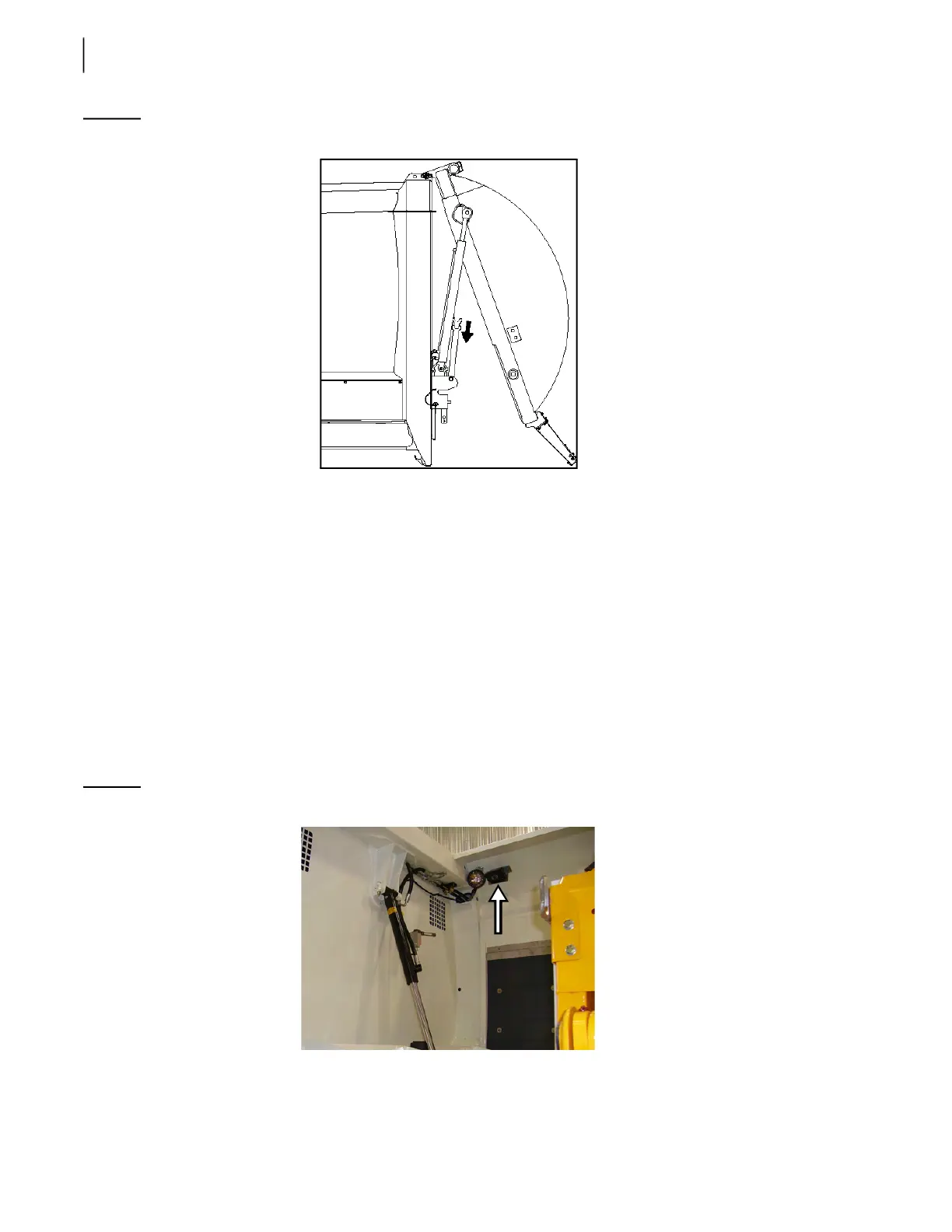

Setting the safety prop in its home position
6. With the Tailgate Down switch on the control panel (see Figure 3-27), fully close the tailgate.
The switch should turn from green to blue, indicating that the tailgate is completely closed.
7. Put the safety pins back in place.
Camera System (optional)
MINIMAX™ units can be equipped with up to four (4) cameras; one inside the hopper (see Figure
2-7), one on the tailgate (see Figure 2-8), one on the right rear hopper post (see Figure 2-9), and one
underneath the left-hand side mirror (see Figure 2-10).
The operator can switch from one camera to the other using a selector switch located on the 7” LCD
color monitor installed in the cab (see Figure 2-11).
Refer to the camera manufacturer’s manual for more information.
Figure 2-7
Camera inside hopper
