Troubleshooting 163
Troubleshooting Harnesses
To simplify electrical troubleshooting on any MINIMAX™ side loader, a kit of different harnesses is
available for use. These harnesses enable digital multimeter readings of both voltage and resistance

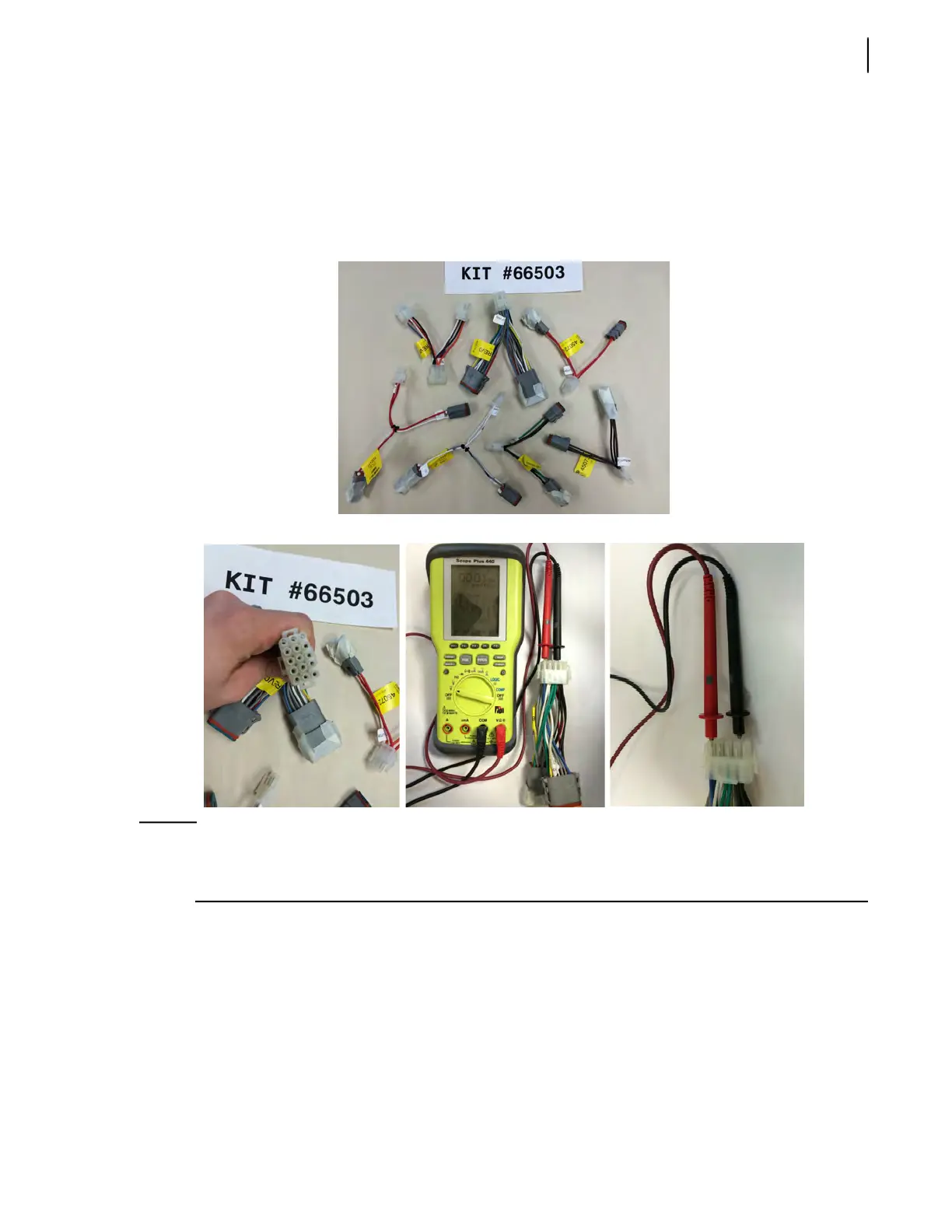

without poking or damaging wires. Simply connect the compatible harness between two (2) existing
connectors and use the additional connector as test points (see pictures below).
NOTE: Two (2) harnesses in this kit have a reference chart to work with:
1. harness #151202, which is used to measure the temperature sensor, and
2. harness #151199, which is used to measure the pressure sensor
