Multiplexing 185

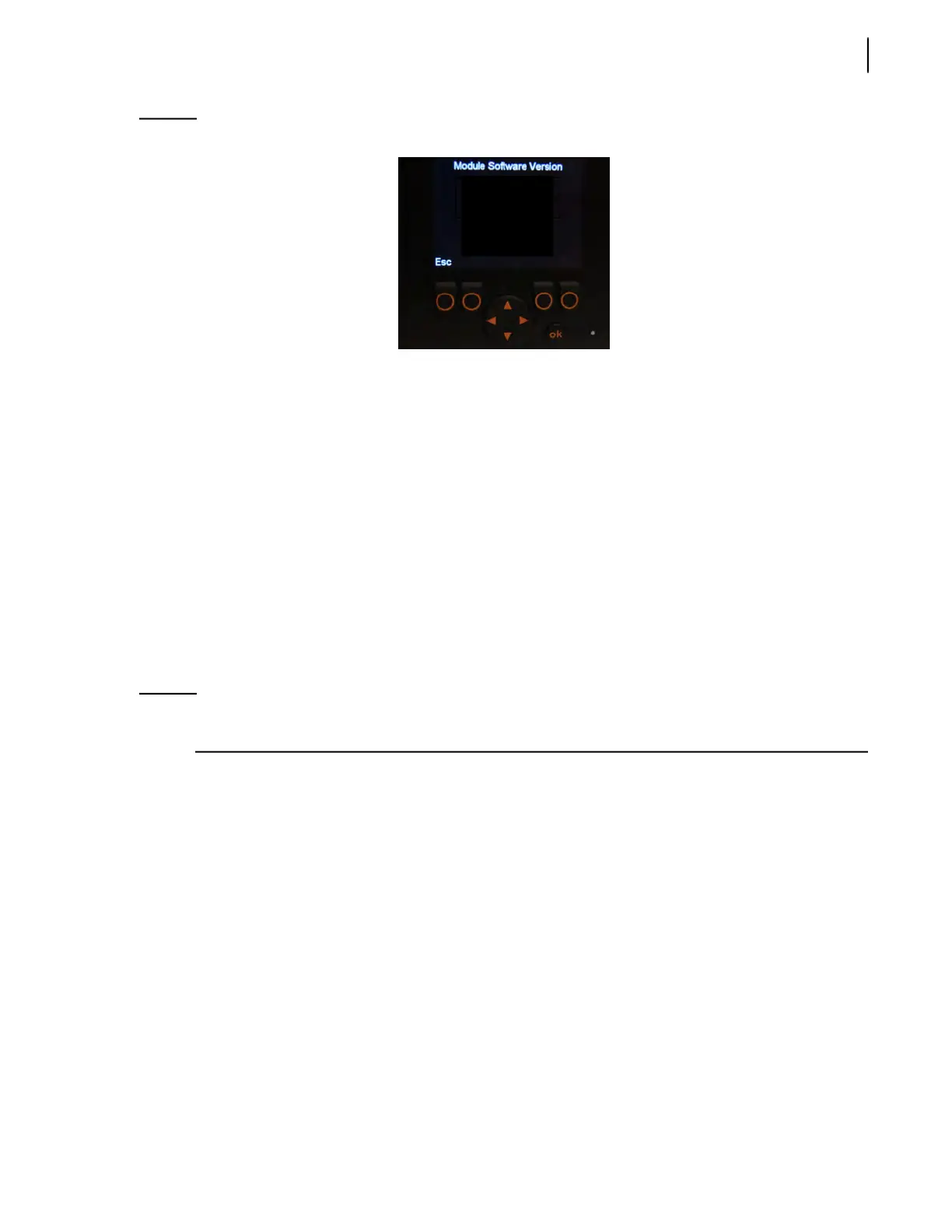

Figure 9-17
Software Version page
With the information on this page it is possible for the operator or maintenance personnel to
determine the electrical schematic number pertaining to a specific vehicle. Looking at Figure 9-17
above you will notice the following digit string 8-8-5-1 between, for example, 10 and R1. As all Labrie
electrical schematics begin with ZS00, you simply add those digits to that base number to get the
corresponding electrical schematic number. So, in this case, the electrical schematic number is
ZS008851.
Press “Esc” to return to the preceding page.
Pump Usage
This section contains an optional hour meter that tracks pump usage for maintenance purposes.
Press “Esc” to return to the preceding page.
Time Adjust
This section allows you to set the Time and Date indicator.
Press “Esc” to return to the preceding page.
NOTE: To go back to the Main Page or Main Menu, press “Esc” as needed until the desired page is
displayed.
Warning Buzzer
Among the many buttons on the control panel you will find a warning buzzer (see Figure 9-18). This
buzzer sounds and a red light in its center flashes to warn the operator of any situation that might be
hazardous. When this happens, the operator can look at the monitor screen for more information on
the situation. A caution or warning message will be displayed. The buzzer also sounds when the truck
is in reverse or when the tailgate is being raised.
Module 10 = 10_8851_R1
Module 11 = 11_8851_R0
Module 50 = 50_8851_R0
Module 60 = 60_8851_R0
