General Maintenance 55

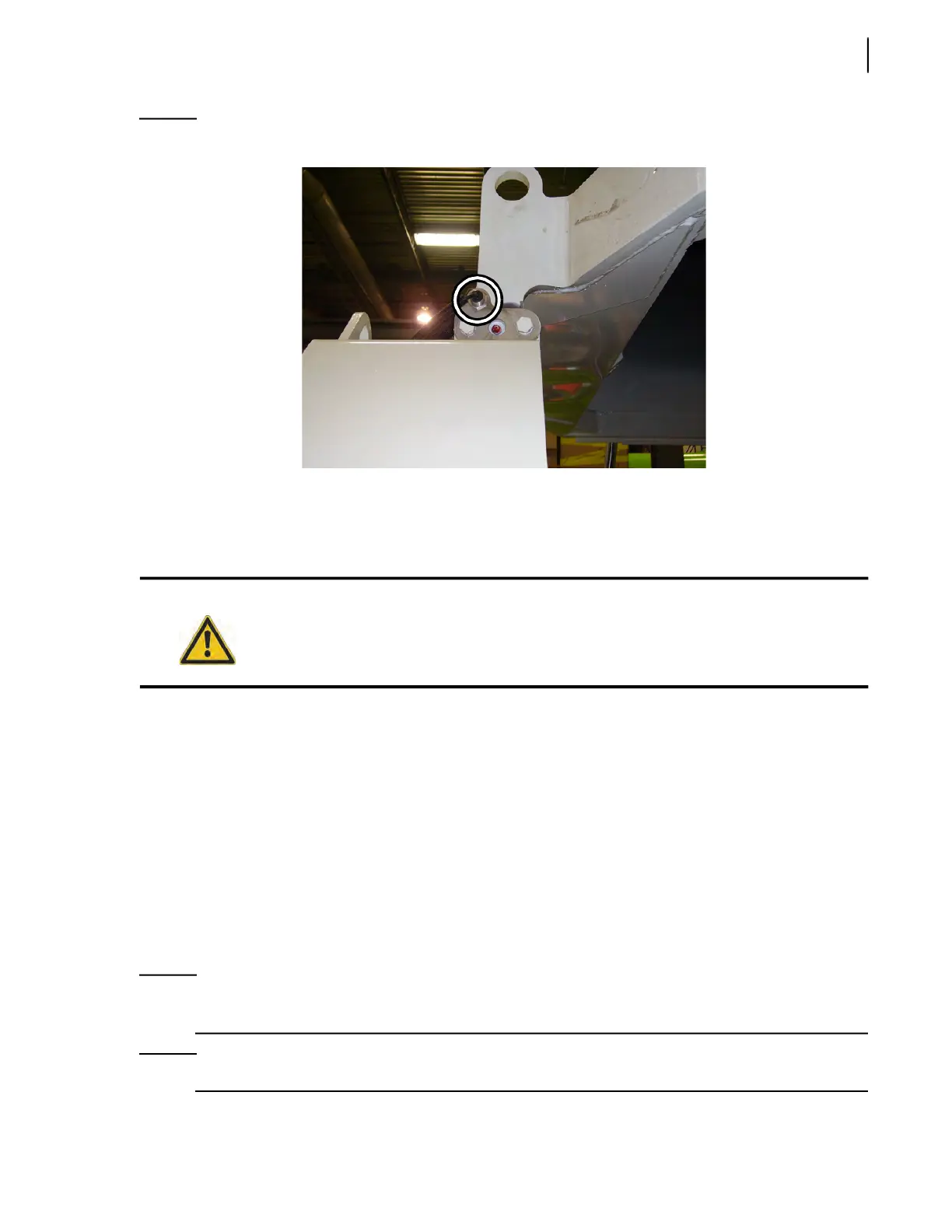

Figure 3-43
Tailgate Fully Open proximity switch
This switch is located on the street side near the tailgate hinge.
To adjust the Tailgate Fully Open proximity switch:
1. Open the tailgate to 90 degrees (see Figure 3-43).
2. Adjust the switch so that it can detect the target.
The proximity switch amber light should turn on when the target is detected.
3. Slightly close the tailgate a couple of inches.
As the target is no more detected by the proximity switch at such position of the tailgate, the
switch light should go off.
4. Repeat the procedure until the proximity switch is properly adjusted.
Adjusting Left-Hand Side Hopper Door Limit Switch (optional)
This limit switch (see Figure 3-44) prevents the crusher panel from functioning when the left-hand
side hopper door is not closed. It also allows the control of the crusher panel from inside the cab.
NOTE: The Left-Hand Side Hopper Door limit switch is found only on units equipped with an
automated arm.
NOTE: The use of this limit switch is required in some jurisdictions.
Warning!
Ensure that no one is standing behind or near the tailgate when the adjustment
procedure is carried out.
