46 General Maintenance

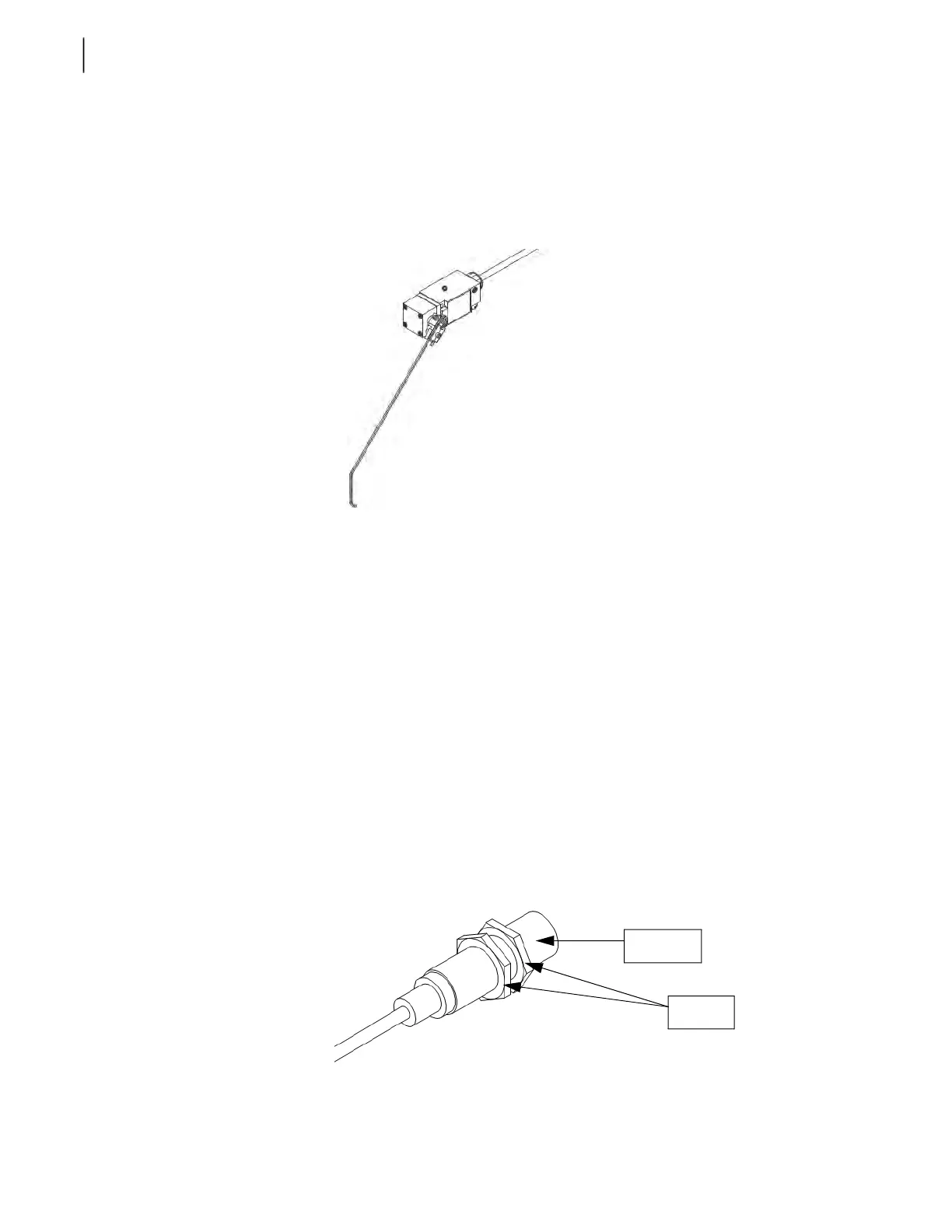

Limit Switch Adjustment
The following is the general procedure for adjusting all the limit switches used on the MINIMAX™,
except for the mid-height limit switch, which calls for a different method of adjustment (All limit
switches MUST be working at all times. Otherwise, the operator may not be aware that the arm is not fully
retracted or that the grabber is open or closed. This may cause an accident, injuries or property damages).
To adjust a limit switch:
1. Loosen limit switch nut.
2. Move the lever arm to the approximate position where the switch is to be triggered.
3. Tighten nut.
4. To fine tune the adjustment, loosen nut slightly.
5. With a flathead screwdriver, turn the adjusting screw located at the center of the nut until a click
is heard.
6. Tighten the nut.
7. Test the operation.
8. If necessary, repeat steps 1 through 7.
Proximity Switch Adjustment
The following is the general procedure for adjusting all the proximity switches used on the
M
INIMAX™.
Switch
Nuts
