Lubrication 81

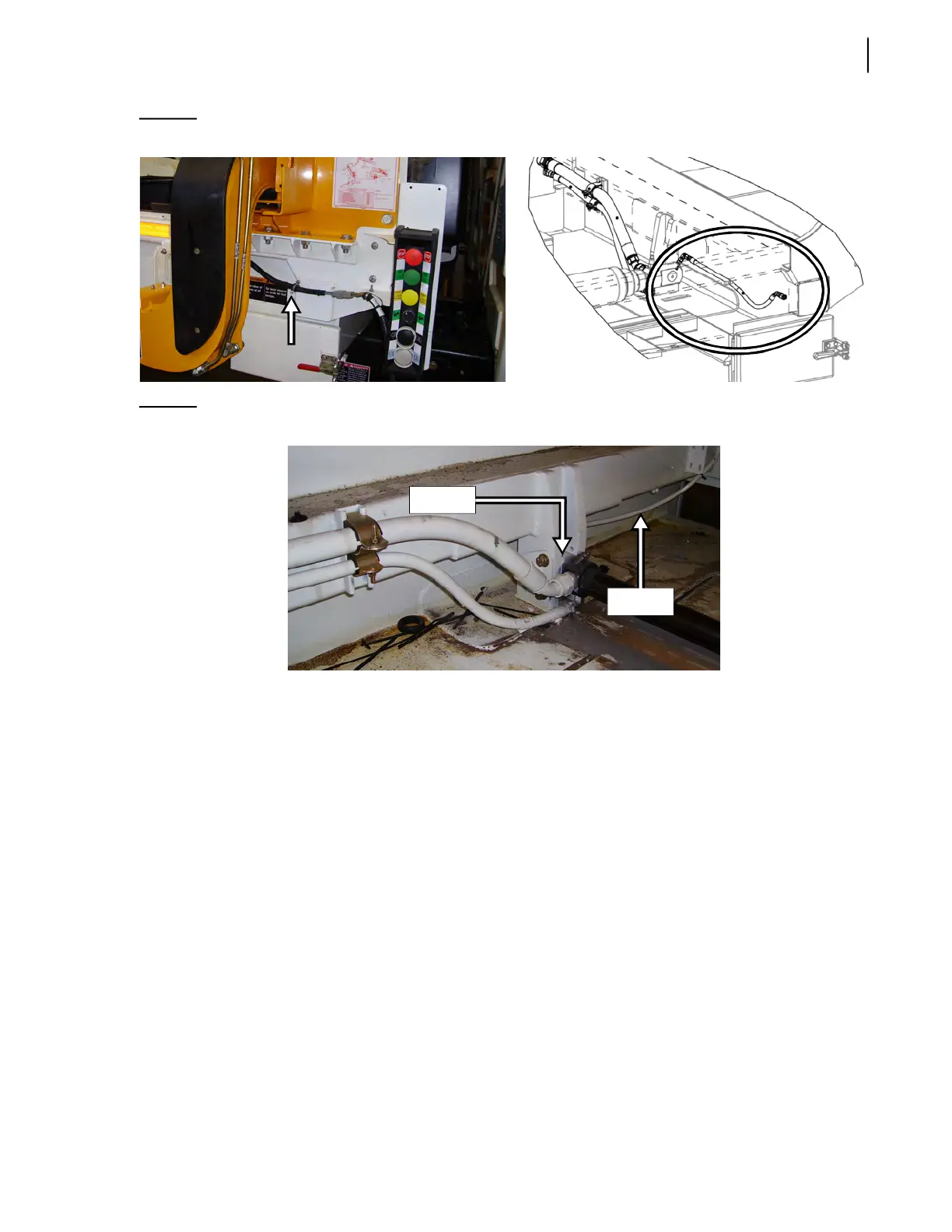

Figure 4-16
Remote grease fitting
Figure 4-17
Cylinder rear pin and remote grease fitting hose
Follower Panel Rollers
To lubricate the follower panel rollers (Figure 4-18):
1. Start the engine and engage the hydraulic system (PUMP switch activated).
2. Fully retract the packer.
3. Turn OFF the engine and disengage the hydraulic pump.
4. Proceed with the lockout/tagout procedure. Refer to “Locking Out and Tagging Out the
Vehicle” on page 20.
5. On the front hopper wall behind the cab, locate both access cover plates (see Figure 4-19).
6. Remove the cover plates.
7. Proceed with the lubrication of all 6 follower panel rollers.
8. Once the lubrication process completed, put back both access cover plates.
Rear pin
Hose
