Lubrication 83
2. Proceed with the lockout/tagout procedure. Refer to “Locking Out and Tagging Out the
Vehicle” on page 20.
3. Fully open all hopper doors.
4. Locate the grease fitting on the top of each door hinge.
5. Apply lubricant with a grease gun.
There are 2 hinges on each hopper door for a total of 6.

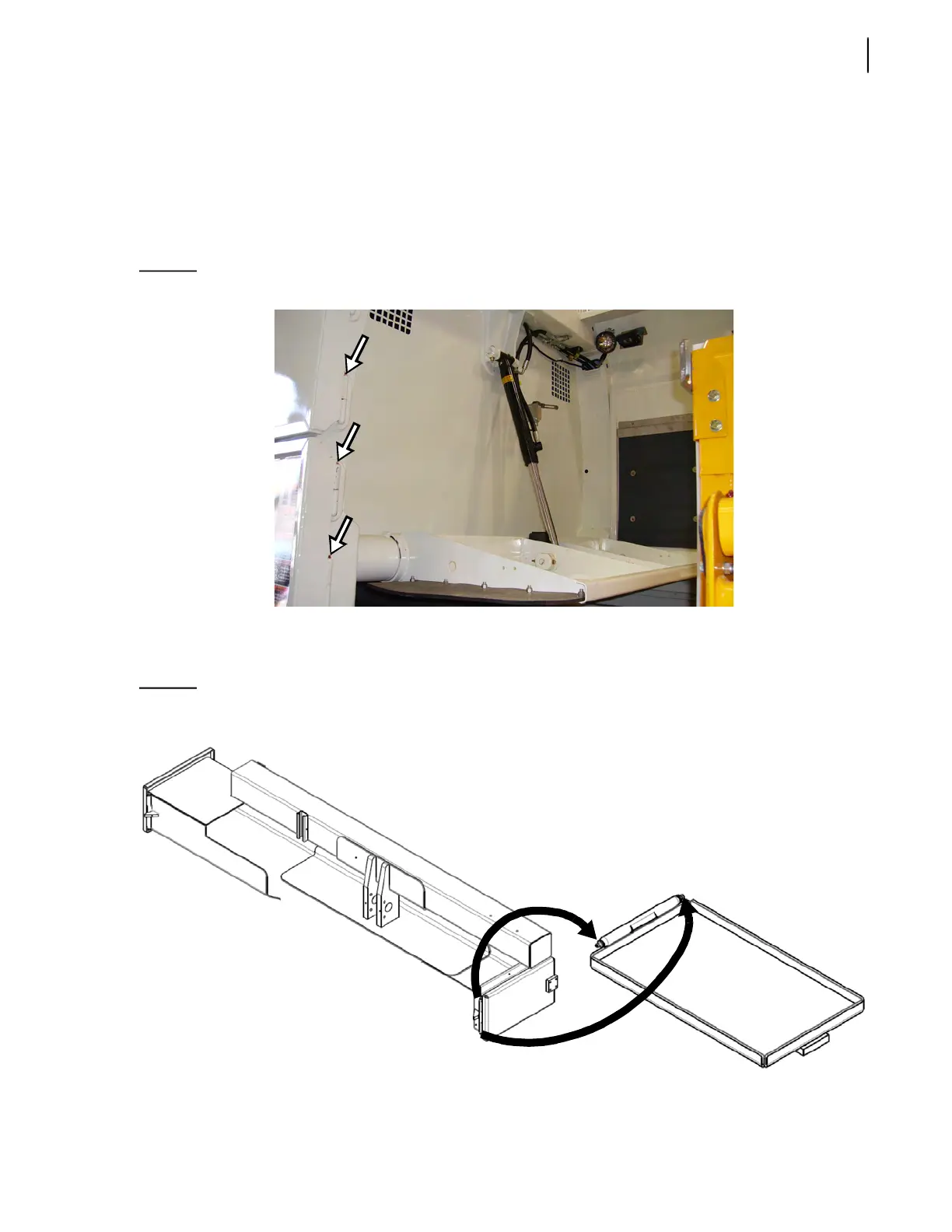

Figure 4-20
Grease fittings on top of door hinges
Sump Box
Figure 4-21
Sump box lubrication points
