56 General Maintenance

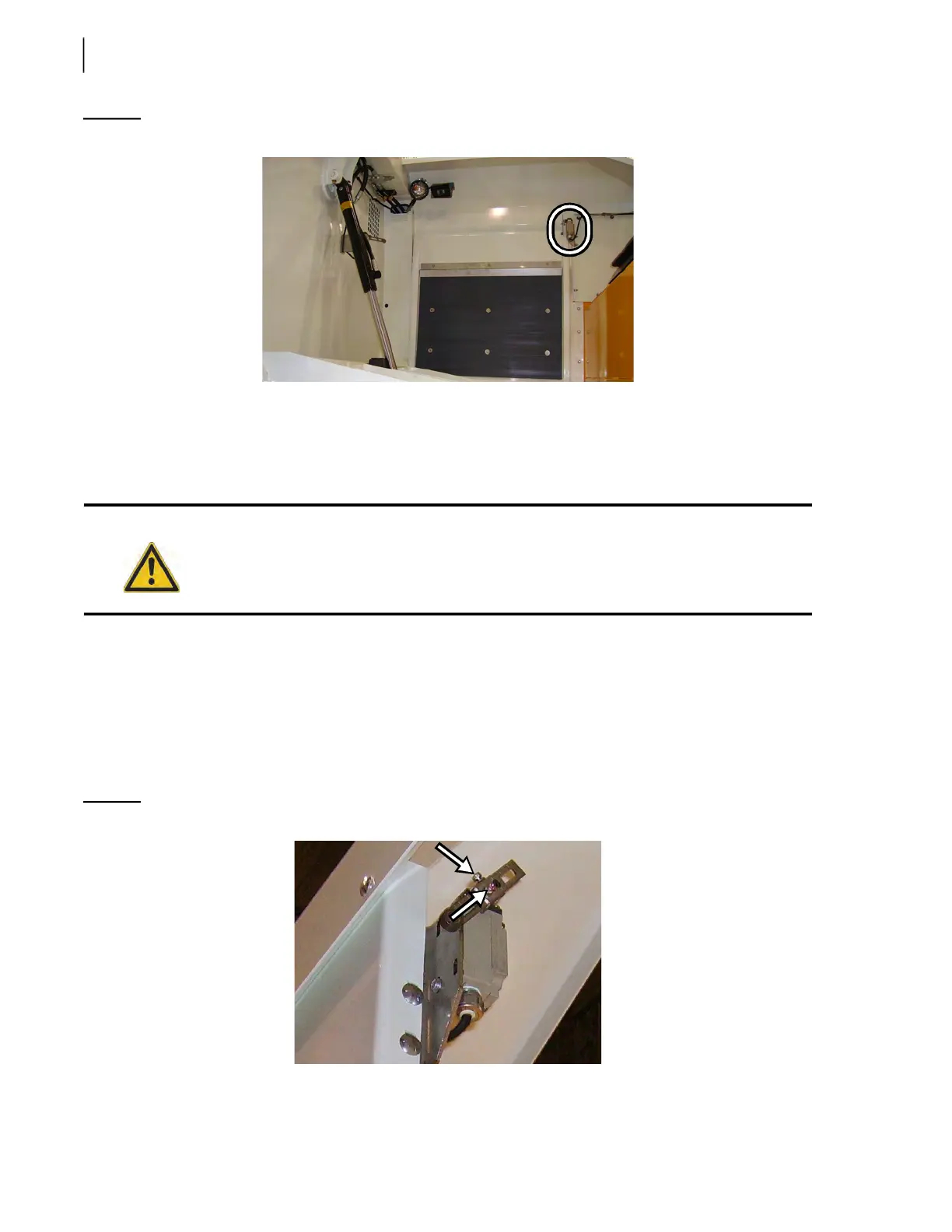

Figure 3-44
Left-Hand Side Hopper Door limit switch
If installed, this limit switch is located on the inside hopper door frame.
To verify that the switch needs adjusting, open the left-hand hopper door by approximately 2 inches
(5 cm) and try to operate the crusher panel. No movement of the crusher panel should be occurring.
If it still moves, then apply the following adjustment procedure.
To adjust the Left-Hand Side Hopper Door limit switch:
1. Unscrew the lever adjustment screws of the limit switch (see Figure 3-45).
2. Raise or lower the detection lever slightly and tighten up the screws.
3. Test the operation.
The crusher panel should be operative only when the left-hand hopper door is closed.
4. Repeat the adjustment procedure if need be.
Figure 3-45
Detection lever adjustment screws
Warning
Injury or death may occur if you attempt to enter the body while the packer or the arm is in
operation.
