50 General Maintenance

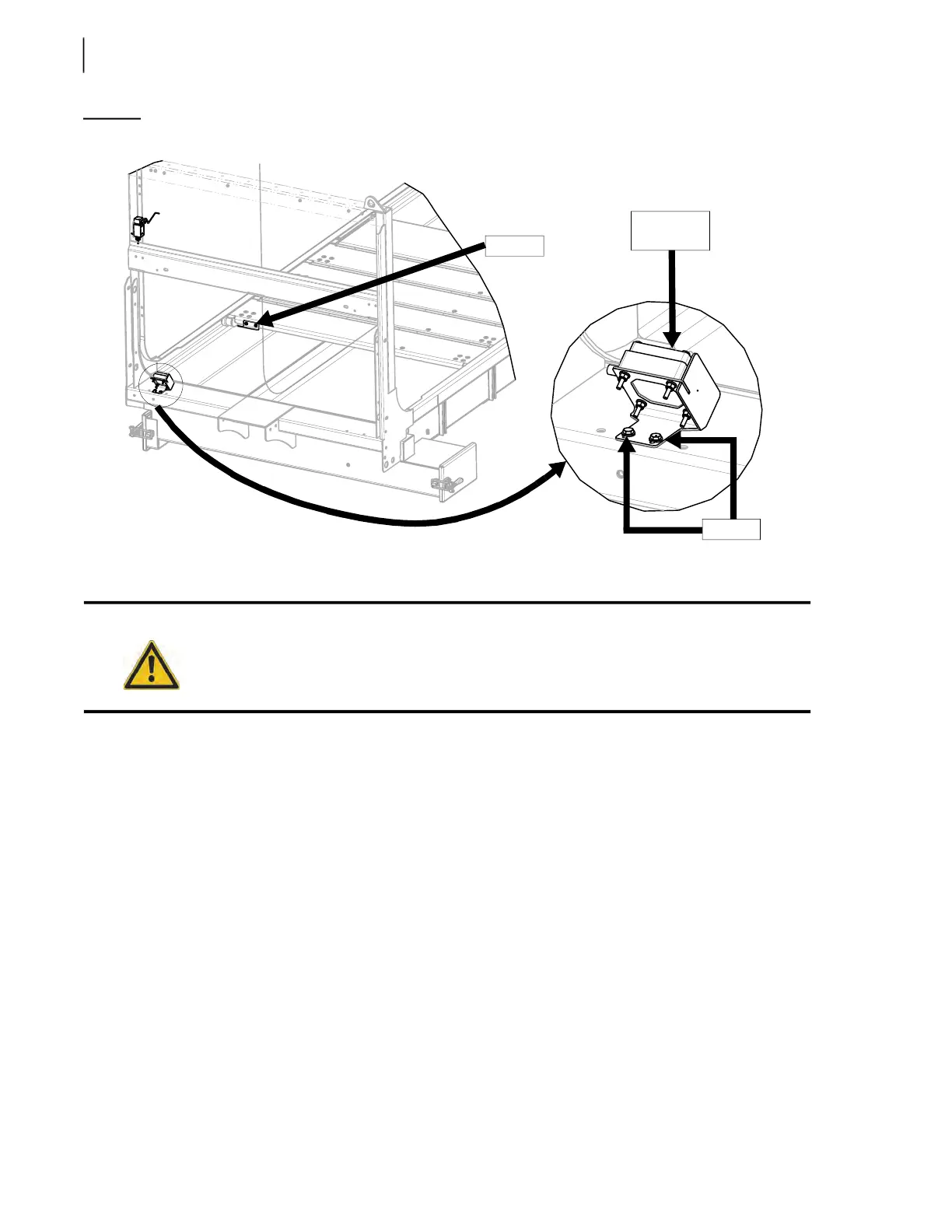

Figure 3-37
Proximity switch installation diagram
14. Turn ON the engine and engage the hydraulic system (PUMP switch activated).
15. Fully retract the packer and press the green PACK button to start a complete cycle and test the
efficiency of the proximity switch.
The proximity switch light should turn on when the target is detected; if not, repeat the
adjustment procedure.
Caution
Make sure the shut-off valve on the suction line is fully open before starting the vehicle.
Target
Bolts
Proximity
switch
