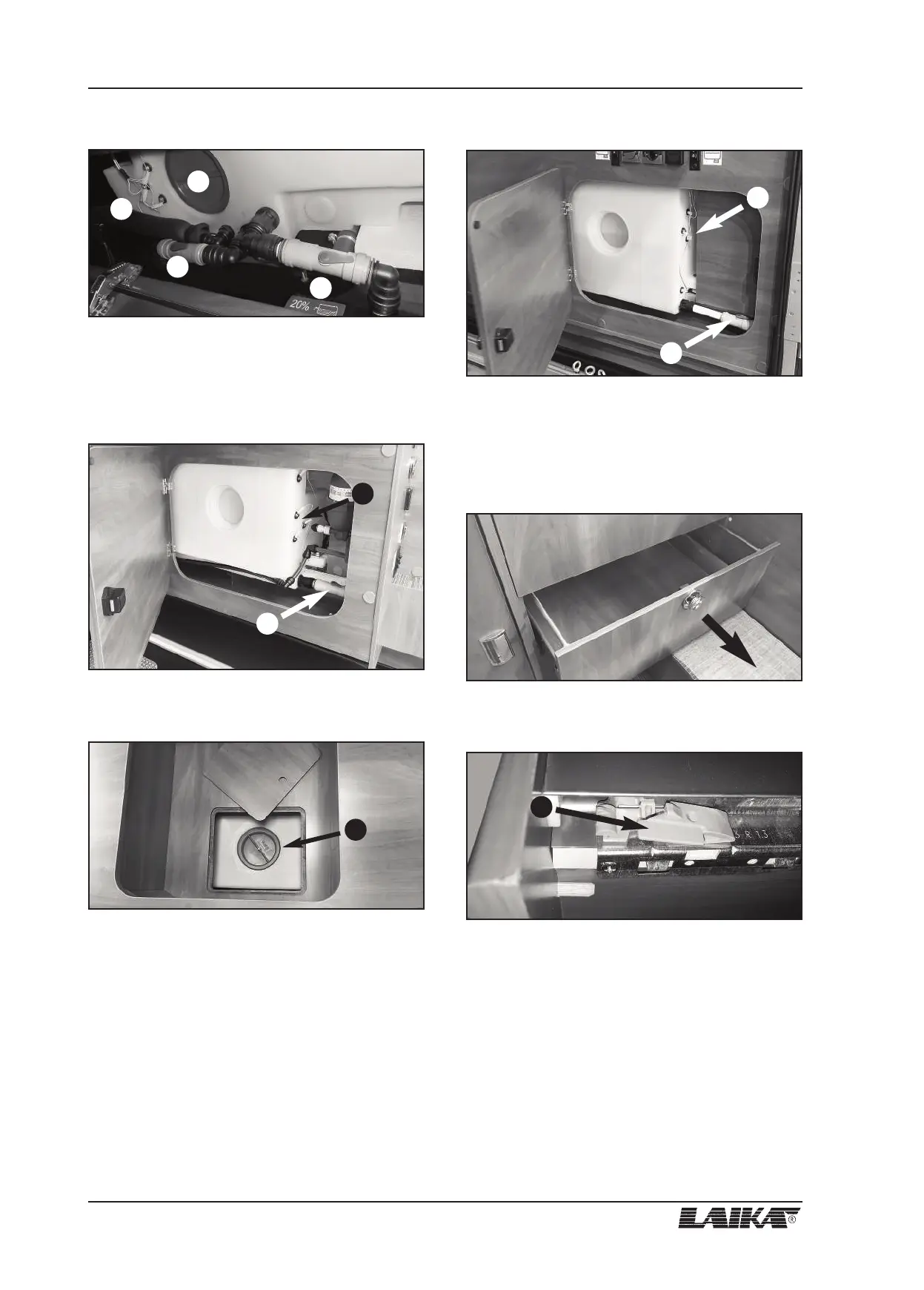

Kreos 5009, 5010, 7009, 7012
From inside the garage it is possible to reach the 100%
drainage tap (a), the tap to empty to 20% of the total
capacity (b), the inspection cap (c) and the probes (d).
Kreos 8002, 8012
From inside the garage it is possible to reach the
drainage tap (a), and the probes (b).
The inspection cap (c) is located under the bed.
Kreos 8009
From inside the garage it is possible to reach the
drainage tap (a), and the probes (b).
There are two inspection caps underneath the rear bed
drawers (one on the right side and the other one on the
left side).
To gain access to the inspection caps, on each side,
open the lower drawer.
To remove the drawer it is necessary to release it from
the runners by pressing the levers (c) placed under the
drawer, on each side, near the front of the drawer.
