Laser 128 - Connecting the Ac Adaptor; Connecting the Video Monitor; Tv

3.2
GETTING STARTED
WA LL OU TLET
.Ji AC PO WE R PLUG
f-!~

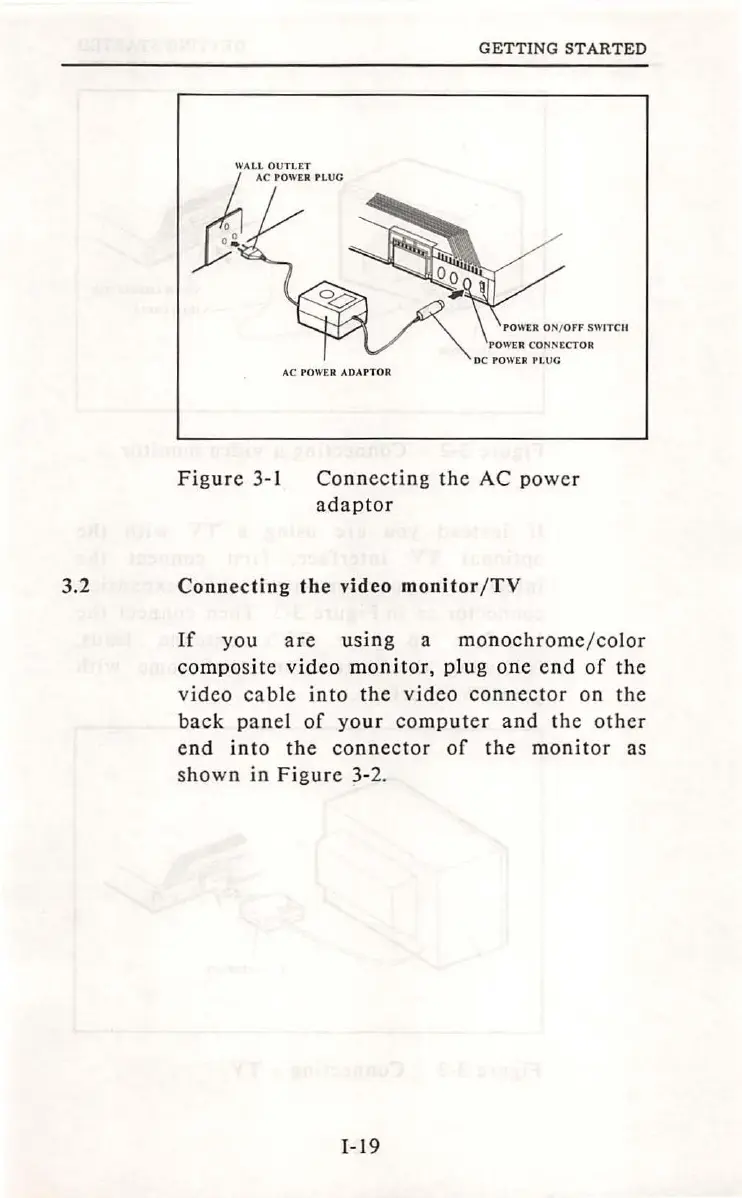

Figure 3-1
PO WER ON / O FF SW J TC ll
AC POW ER AD APTOR
Connecting the AC power
adaptor
Connecting the video monitor /TV
If you are using a monochrome / color
composite video monitor, plug one end of the
video cable into the video connector on the
back panel of your computer and the other
end into the connector of the monitor as
shown in Figure 3-2.
1-19
