THE KEYBOARD

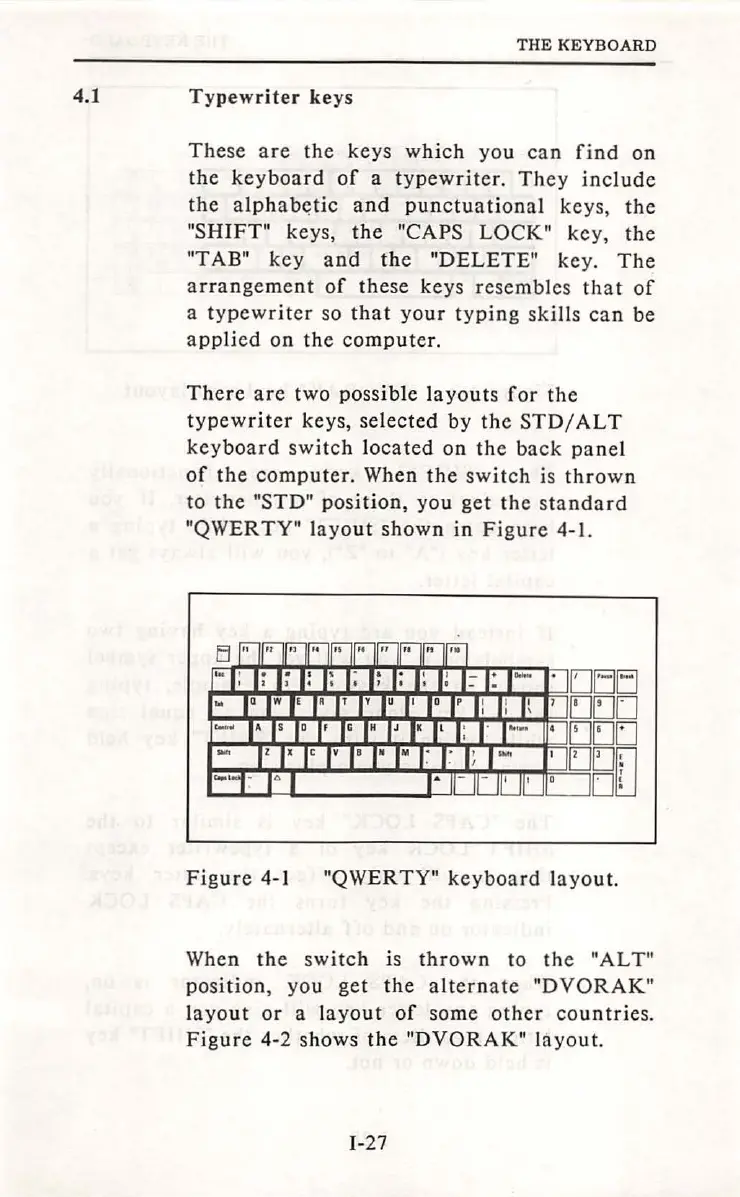

4.1 Typewriter keys
These are the keys which you can find on
the keyboard of a typewriter. They include
the alphab~tic and punctuational keys, the
"SHIFT" keys, the "CAPS LOCK" key, the
"TAB" key and the "DELETE" key. The
arrangement of these keys resembles that of
a typewriter so that your typing skills can be
applied on the computer.
There are two possible layouts for the
typewriter keys, selected by the STD/ ALT
keyboard switch located on the back panel
of the computer . When the switch is thrown
to the "STD" position, you get the standard
"QWERTY" layout shown in Figure 4-1.
[][JEJ
....... ._......~~ ..... ._... ....... "-'l ~,[][]0
4 tJ[]LJ
...-r."--'"'~~~......-~
1
UU~
- ..... --------- ~~'--'''--''--'~-_JDlJ
Figure 4-1 "QWERTY" keyboard layout.
When the switch is thrown to the "ALT"
position, you get the alternate "DVORAK"
layout or a layout of some other countries.
Figure 4-2 shows the "DVORAK" layout.
1-27
