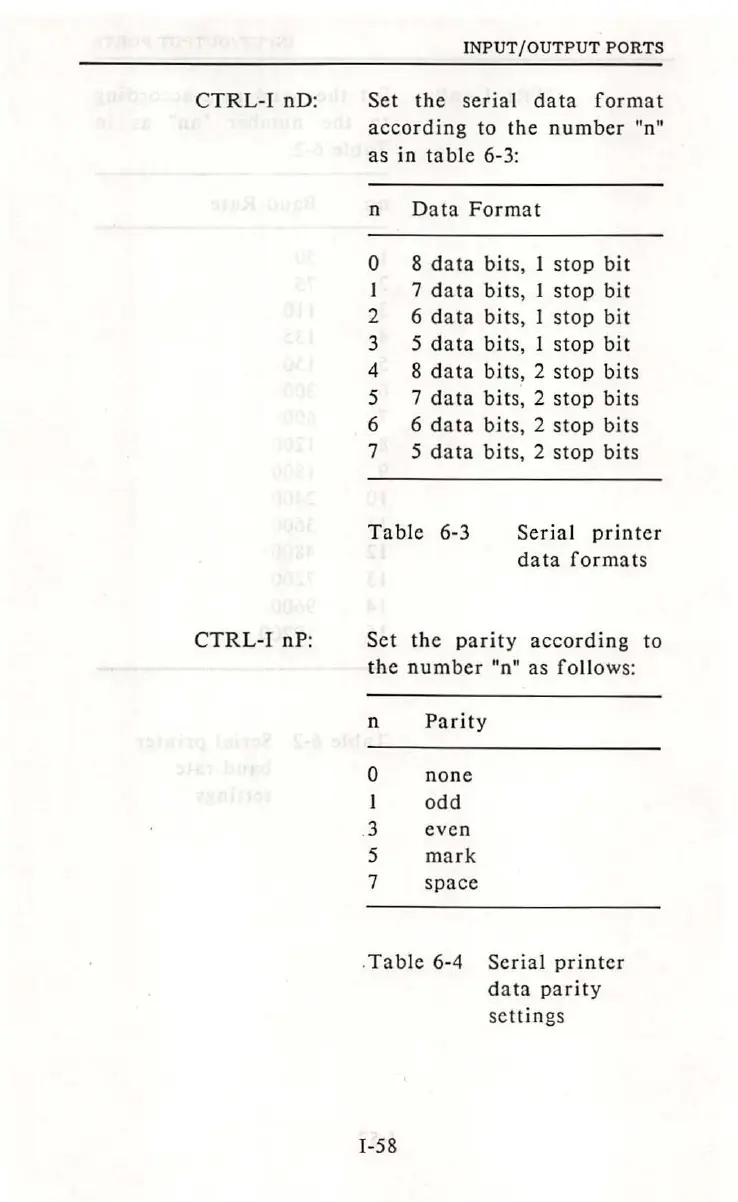

Laser 128 - Page 71

CTRL-1 nD:
CTRL-1 nP:
INPUT/OUTPUT PORTS
Set the serial data format
according to the number "n"
as in table 6-3:
n Data Format
0 8 data bits, I stop bit
I 7 data bits, I
stop bit
2
6 data bits , I stop bit
3 5 data bits, I stop bit
4
8 da ta bits, 2 stop bits
5 7 data bits, 2 stop bit s
6 6 data bits, 2 stop bits
7 5 data bits, 2 stop bits
Table 6-3 Serial printer
data formats
Set the parity according to
the number "n" as follow s:
n Parity
0 none
I
odd
.3 even
5 mark
7 space
.Ta ble 6-4 Serial printer
data parity
settings
1-58
