The optional Digital Communicator (P/No. ZXT130) allows the
Advent xt to communicate digitally via the internet to a digitally
enabled Alarm Receiving Centre (ARC).
The Advent xt can also retain the PSTN analogue connection which will
then be used as a secondary connection.
The Digital Communicator can only be used with;
Advent xt motherboard issue A-G and firmware V3.01A onwards or
Advent xt motherboard issue H and firmware V4.01A onwards
To check your firmware version see section 33.
INSTALLATION
The Digital Communicator is housed in a wall mounted ABS enclosure; 180 x 180 x 48 mm (HxWxD).

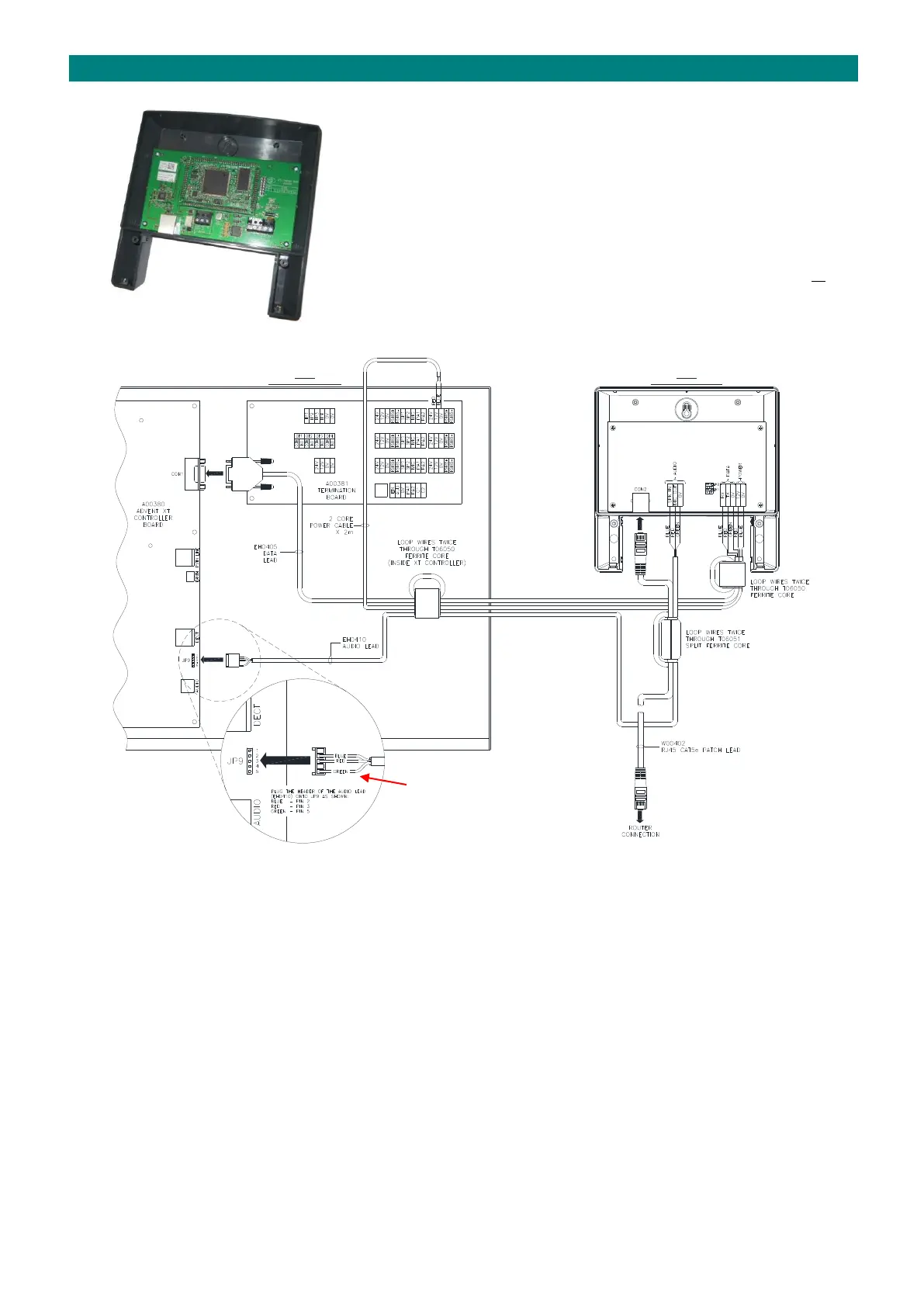

IMPORTANT: fit the 3 Ferrites provided to the cables as shown above.
TERMINATION
Connect POWER from the Advent xt termination board 12V/0V terminals using the 2 metre 2 core cable provided.
Connect RS232 from the Advent xt controller 9 pin D socket (CON1) using the 2 metre data lead provided.
Connect AUDIO from the Advent xt controller JP9 using the 2 metre audio lead provided.
IMPORTANT: see above drawing for correct orientation when connecting the audio lead to JP9.
Connect the ETHERNET port to a Router using the 2 metre RJ45 patch lead provided.
PROGRAMMING
The Alarm Receiving Centre IP address and SIP account details must be entered in the “IP & SIP Setup” - see the Advent xt
Programming Manual (Tynetec Doc No. FM0411).
