LEGRAND tynetec Advent XT User Manual

Doc No. FM0410 issue N Page 30
IP-DECT
BASE STATION
OR REPEATER
NETWORK
RECEIVER
NETWORK
RECEIVER
AERIAL
5 METRE COAX SUPPLIED WITH AERIAL
(DO NOT EXTEND)
MINIMUM
3 METRES
MINIMUM
3 METRES
MINIMUM
3 METRES

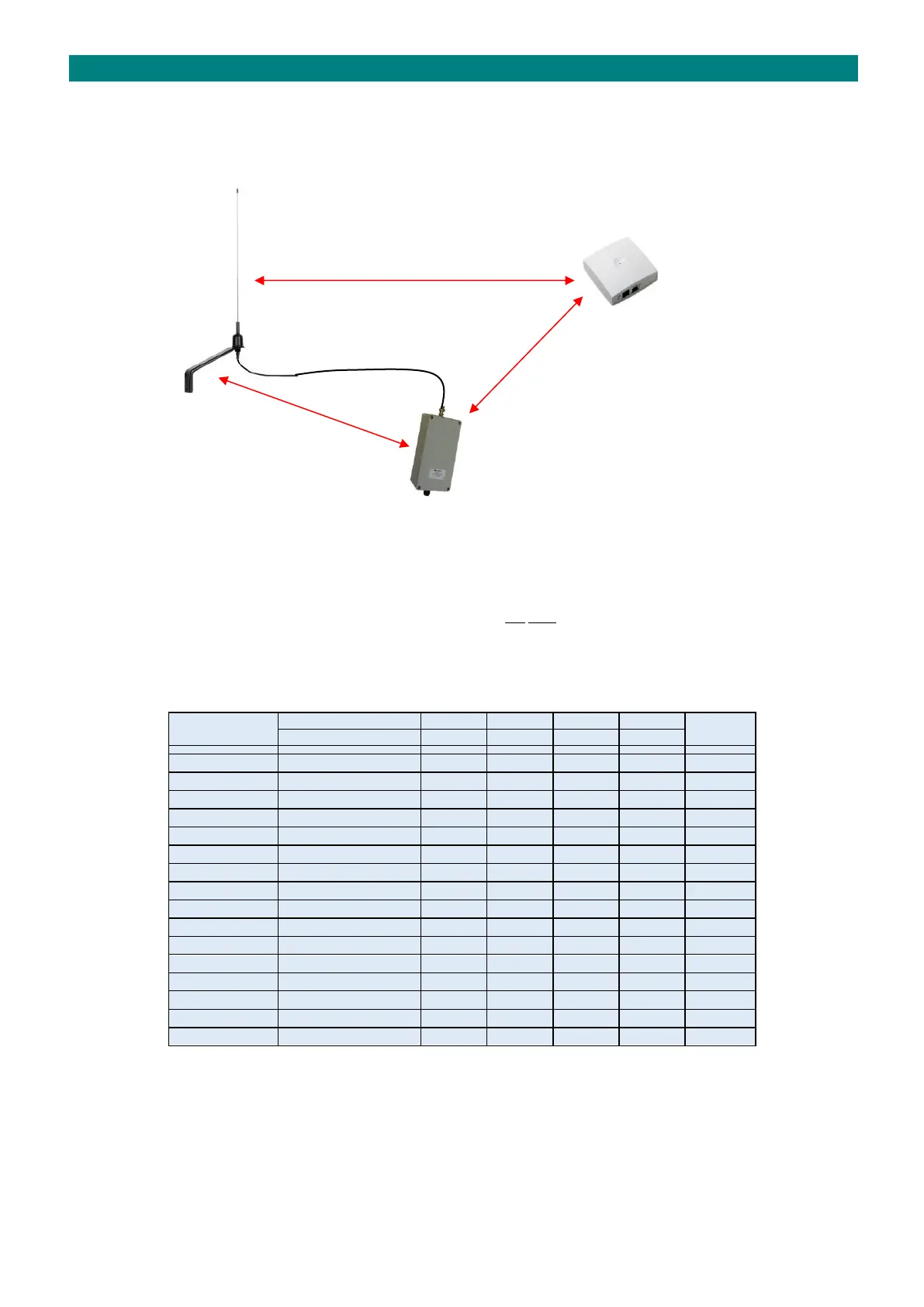

23. NETWORK RECEIVER INSTALLATION
169MHz SEPARATION
To obtain maximum coverage it is very important that there is a minimum of 3 METRES SEPARATION between the
Network Receiver, its own Aerial and any DECT Base Station or Repeater. Failure to follow these recommendations will
result in significantly reduced radio coverage.
AERIAL CONNECTION
The 169MHz 1/2 Wave Aerial (P/No. W06250) comes complete with a wall mounting bracket, 5 metre coax and BNC plug
for connection to the Network Receiver.
Aerials should be mounted vertically, as high as possible and free of immediate obstruction from concrete, steel work or
electrical equipment. Aerials are suitable for external mounting but DO NOT extend the 5 metre coaxial cable supplied.
ID SETTING
DIL switches 1 to 4 are used to set a unique ID (0 to 15) on each Network Receiver, DIL switches 5 to 8 are not used.
ID’s must run sequentially starting from zero.
Network
Receiver No.
DIL Switch No:
1
2
3
4
ID
ON = Binary Code:
“1”
“2”
“4”
“8”
1
OFF
OFF
OFF
OFF
0
2
ON
OFF
OFF
OFF
1
3
OFF
ON
OFF
OFF
2
4
ON
ON
OFF
OFF
3
5
OFF
OFF
ON
OFF
4
6
ON
OFF
ON
OFF
5
7
OFF
ON
ON
OFF
6
8
ON
ON
ON
OFF
7
9
OFF
OFF
OFF
ON
8
10
ON
OFF
OFF
ON
9
11
OFF
ON
OFF
ON
10
12
ON
ON
OFF
ON
11
13
OFF
OFF
ON
ON
12
14
ON
OFF
ON
ON
13
15
OFF
ON
ON
ON
14
16
ON
ON
ON
ON
15
PROGRAMMING
The total number of Network Receivers must be set in the “General Setup” programming - see the Advent xt
Programming Manual (Tynetec Doc No. FM0411).
