The Door Open Alarm (P/No. ZDA025) can be connected to an Advent xt system to
initiate an alarm call when an Emergency Exit door is left open.
The Door Open Alarm must be connected via an Advent xt intercom unit to provide an
alarm location message and 2 way speech.
INSTALLATION
Fix the Door Open Alarm alongside the monitored door at a height where the isolation keyswitch can easily be reached.

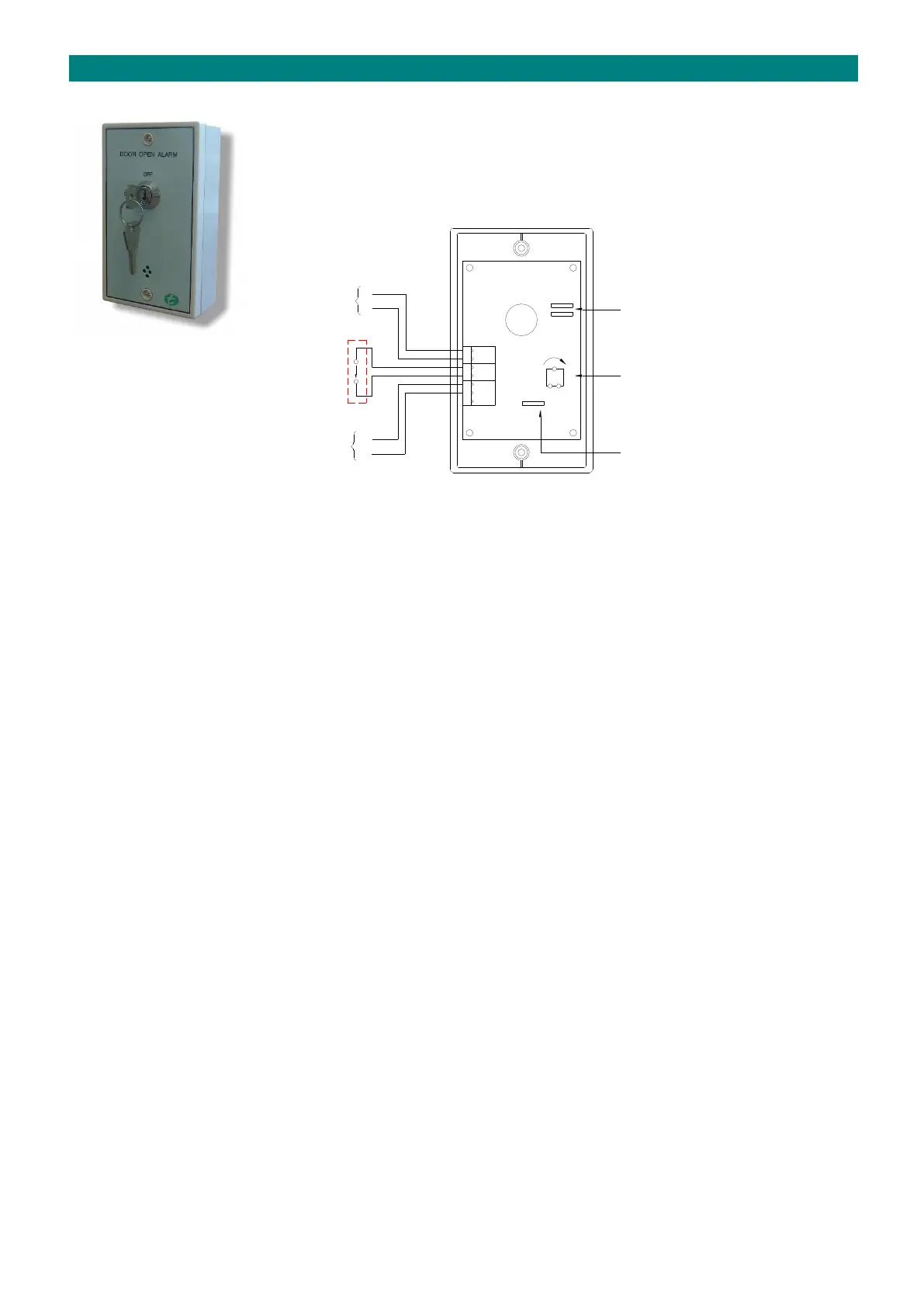

TERMINATION
Connect 1 pair of wires to a standard N/C door contact (available separately P/No. W01120) fitted on the monitored door.
Connect 2 pairs of wires to a dedicated Advent xt intercom - 1 pair power and 1 pair alarm.
An alarm call will be activated if the door is left open exceeding the preset time. Adjust the “SET DELAY” pot from 1
second to 5 minutes for delay before alarm.
INTERCOM SETTINGS
The Advent xt intercom which the Door Open Alarm is connected to must have the Options DIL switch 4 set ON and
intruder mode must be enabled using the DECT handset as described below;
1. Press the LINE key
2. Wait for the “Ready” prompt in the earpiece
3. Enter the code 3007 followed by the key
4. Enter the intercom number to have intruder mode enabled followed by the key
5. Press the LINE key to clear the connection
See the Advent xt Operators Manual (Tynetec Doc No. FM0420) for more intruder mode related codes.
PROGRAMMING
A custom speech message should be created to identify the door location - see the Advent xt Programming Manual
(Tynetec Doc No. FM0411).
