4. Overview of the Instrument

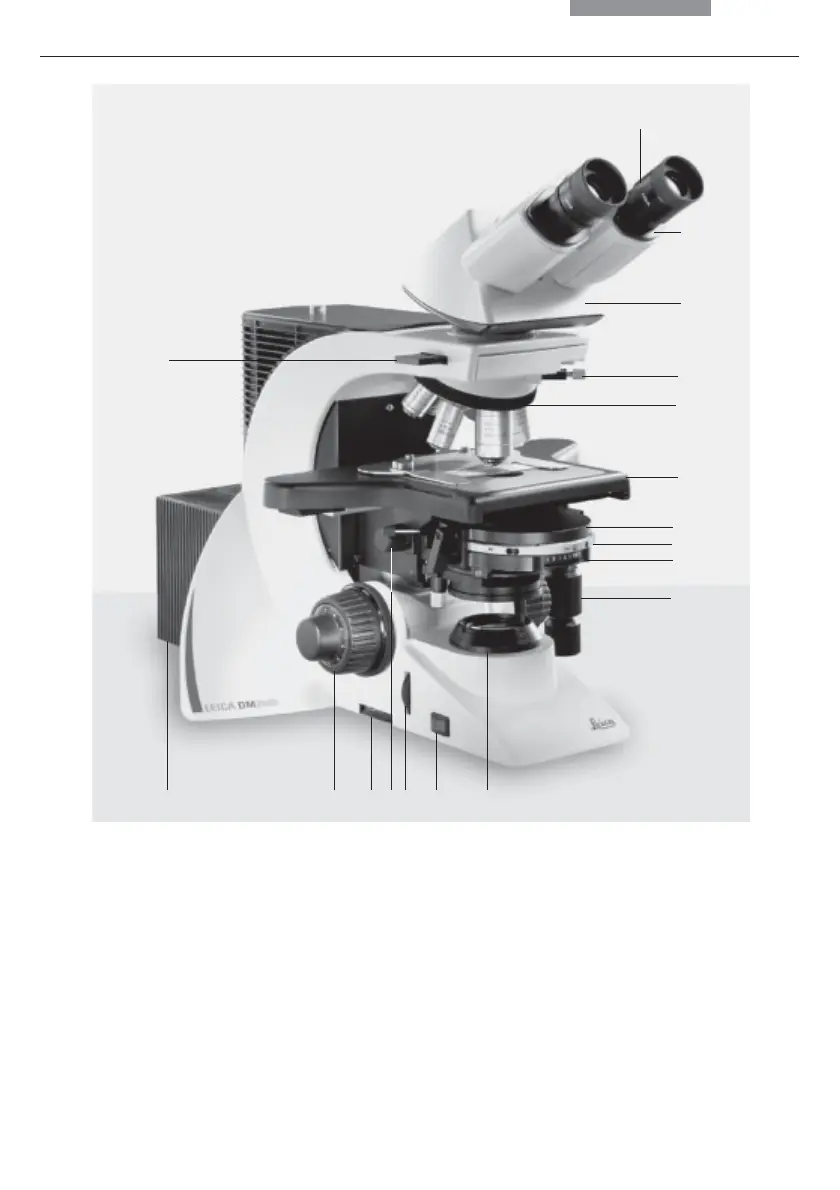

Fig. 3 Left side of the stand Leica DM2500
1 Lamp housing
2 Coarse and fine focusing
3 Brightness control
4 Condenser height adjustment
5 Field diaphragm adjustment
6 On/Off switch
7 Field diaphragm
8 Coaxial pinion for x/y stage movement
9 Aperture diaphragm
1
2356
14
18
12
13
11
10
9
8
74
15
16
17
10 Condenser disk
11 Condenser
12 Specimen stage with specimen holder
13 Objective turret with objectives
14 Objective prism slide
15 Tube
16 Eyepiece tube
17 Eyepiece
18 Analyzer
