18
6. Assembly
• First, place the fine focus wheel on the side to
which you intend to mount the coaxial pinion.
The wheel is held in place magnetically (5.1).
Ensure that the button snaps into place.
Attach the other focus knob on the opposite
side.
• Loosen the lock screw (6.1) at the front left-
hand side of the stage.
• Slide the stage as far back as possible.
• Attach the coaxial pinion with the screw (7.1).
• Pull the stage forward and retighten the lock
screw.

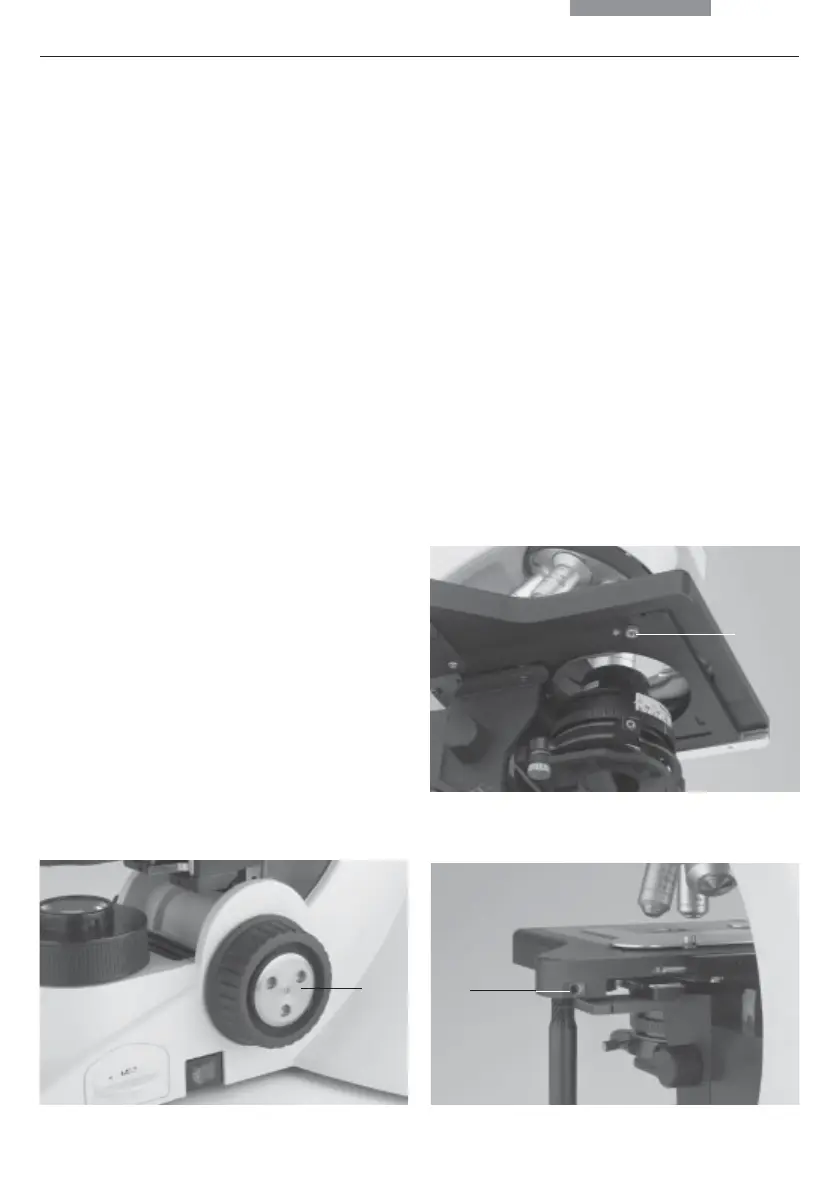

Fig. 7 Coaxial pinion installation
1 Mounting screw for coaxial pinion
1
1
Fig. 5 Focus wheel
1 Magnetic retainer for fine focus wheel
Fig. 6 Underside of stage
1 Lock screw
1
