25
6. Assembly
a
c
b
3
Hg 50
Hg 100
Xe 75
1
4
2
3
1
2
3
1
2
5
• Insert the lamp mount, with the burner in-
stalled, into the lamp housing and tighten it
with the screws (18.8).
• Close the lamp housing and retighten the
screws.
• Place the lamp housing in the incident light
lamp housing receptacle (20.1) and fasten it
with the clamping screw on the side.
• Connect the lamp housing to the external
power supply.

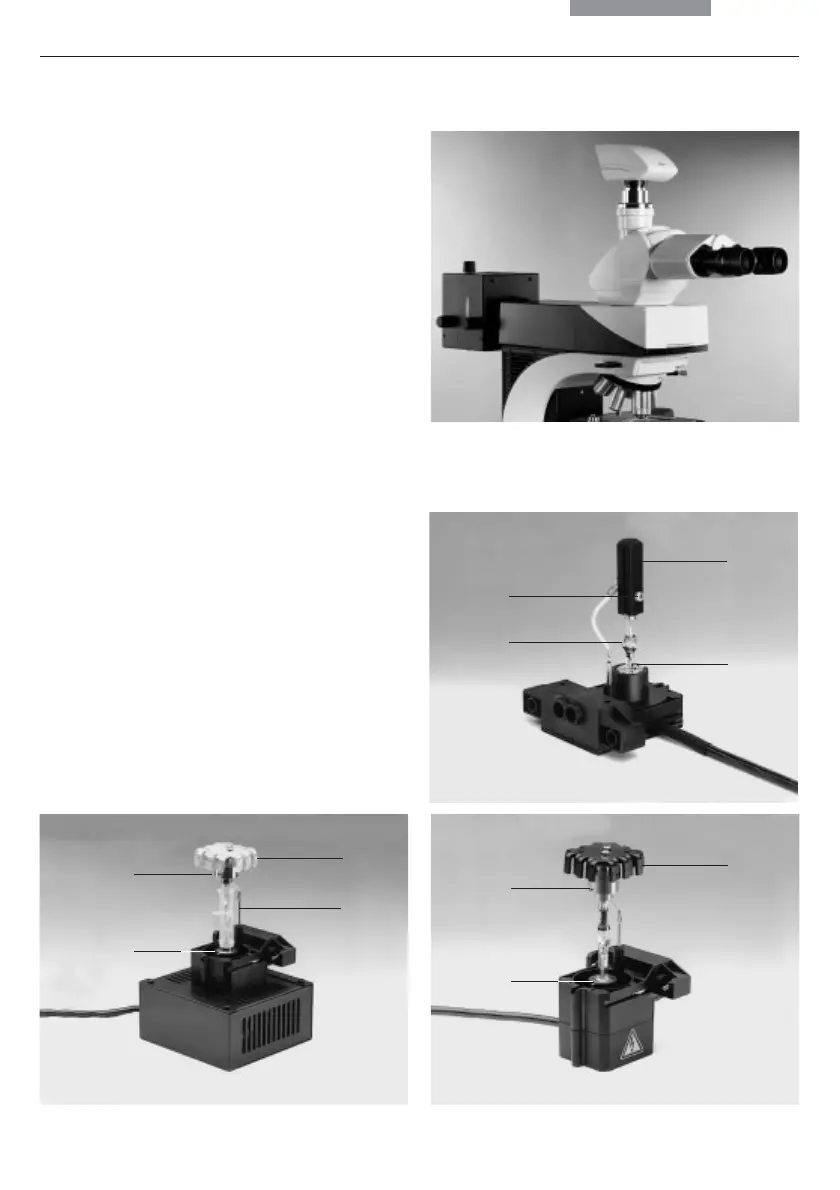

Fig. 20 Mounting the 106 z lamp housing
1 Lamp housing receptacle
Fig. 19 a-c Lamp mounts for gas discharge lamps
1 Upper clamping system
2 Lower clamping system
3 Cooling element
4 Nipple of the mercury 50 burner
5 Dust cover of the mercury 75 burner
