a.Pressthereleasetab1inthedirectionasshown,andthencarefullyliftthePCIcardbracket
assemblyslightlyupwarduntilthetwomountingstuds
2onthechassisareinthecentralpositionof
thecorrespondingholesinthePCIcardbracketassembly.

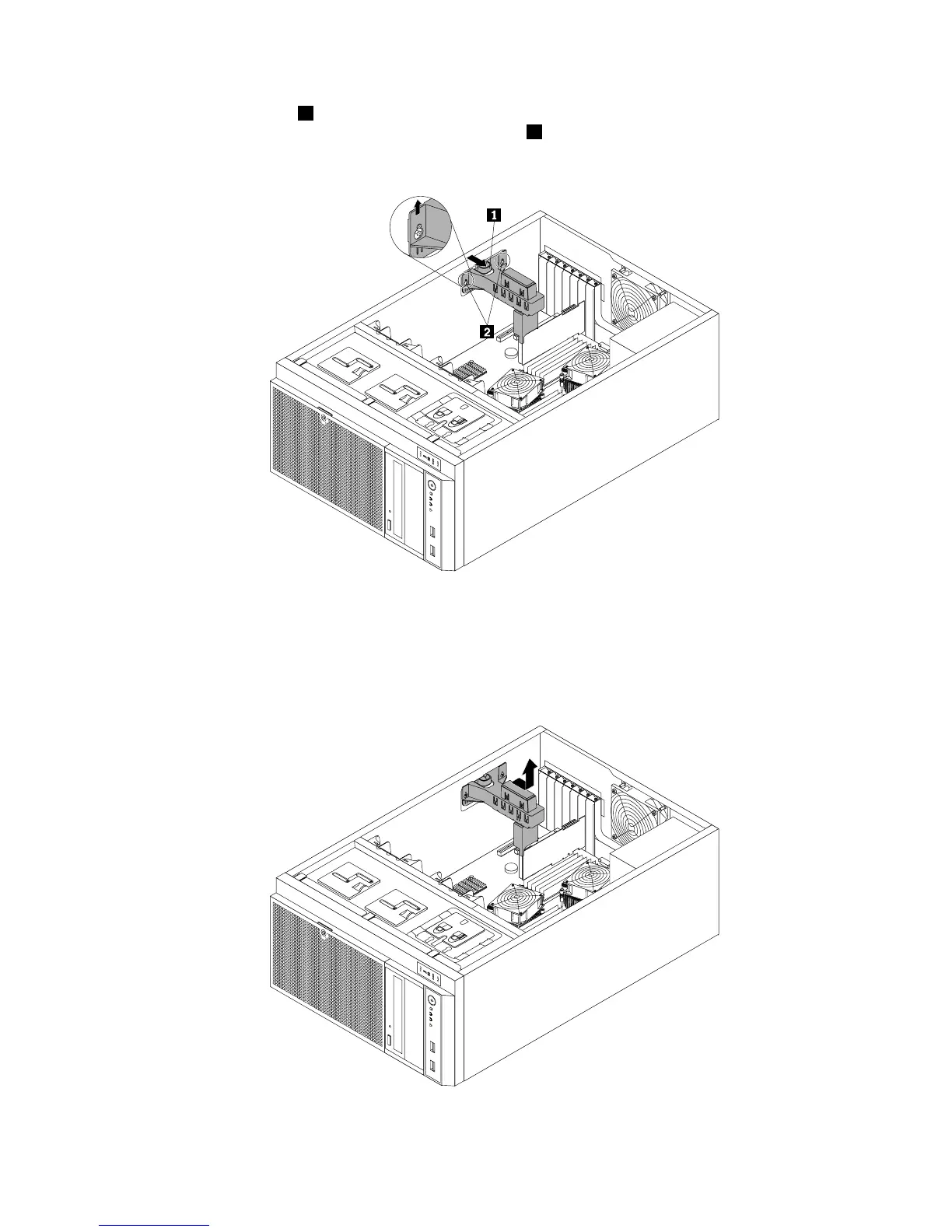

Figure38.ReleasingthePCIcardbracketassembly
b.CarefullymovethePCIcardbracketassemblytothetopsideofthechassisuntilthePCIcard
bracketassemblyisreleasedfromthemountingstudsonthechassis.Then,liftthePCIcardbracket
assemblyoutofthechassis.
Figure39.RemovingthePCIcardbracketassembly
90ThinkServerTD340UserGuideandHardwareMaintenanceManual
