10.AlignthetopedgeoftheEMI-protectivepanelwiththetopsideofthehard-disk-drivecage,andthen
pivottheEMI-protectivepaneldownuntilitsnapsintoposition.

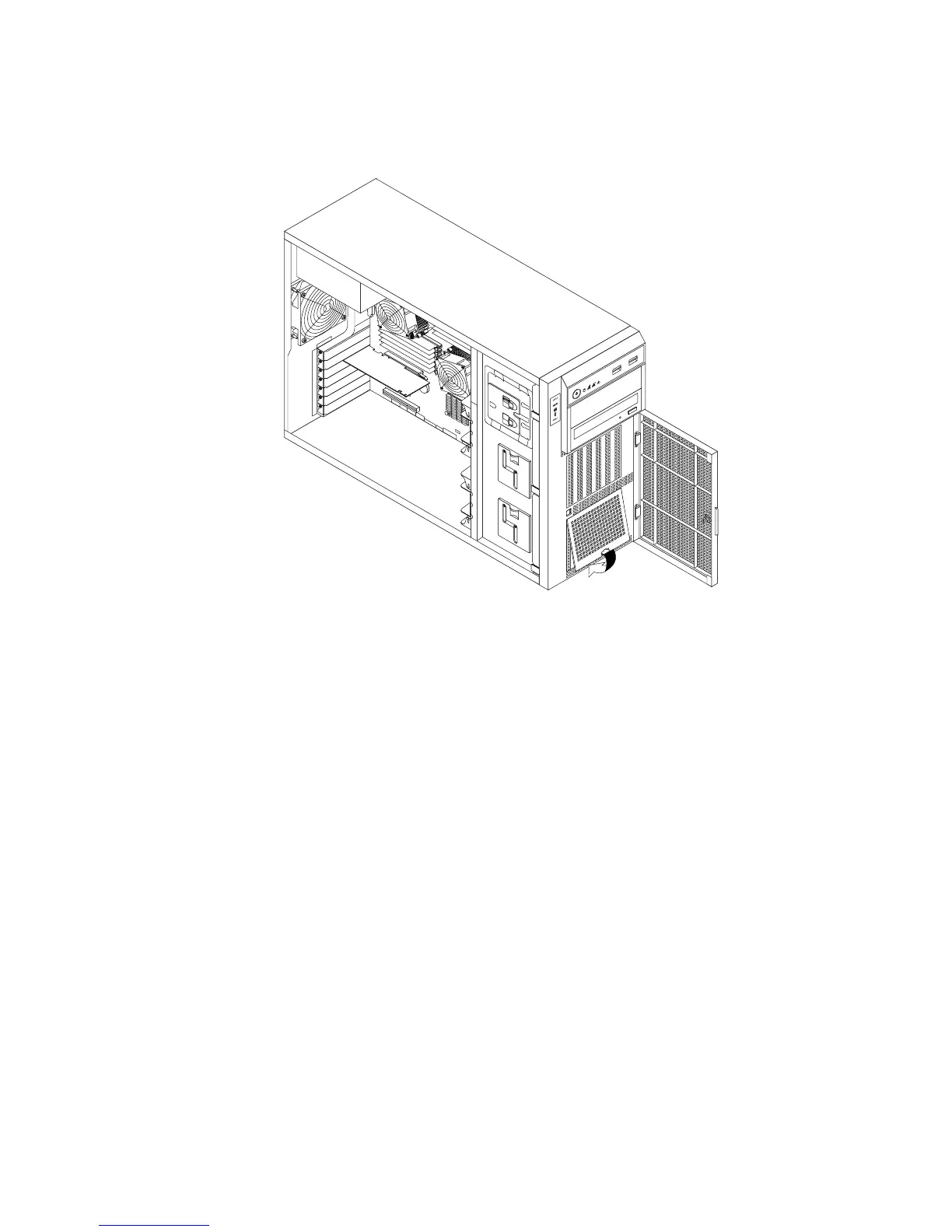

Figure81.InstallingtheEMI-protectivepanel
11.DisconnecttheSATAcablefortheremovednon-hot-swapharddiskdrivefromthesystemboardand
savethecableforfutureuse.
12.Closeandlockthefrontdoor.
13.Ifyouareinstructedtoreturntheoldnon-hot-swapharddiskdrive,followallpackaginginstructionsand
useanypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage200
.Then,you
mightneedtoreconfigureRAIDforyourserver.See“ConfiguringRAID”onpage72
.
Installingorreplacinga2.5-inchsolid-statedrive
Thistopiccontainsthefollowingitems:
•“Installinga2.5-inchsolid-statedriveintoa3.5-inchhard-disk-drivebay”onpage144
•“Replacinga2.5-inchsolid-statedrivefroma3.5-inchhard-disk-drivebay”onpage149
ForalistofThinkServersolid-statedriveoptions,goto:
http://www.lenovo.com/thinkserver
Youcaninstallorreplaceahot-swapsolid-statedrivewithoutturningofftheserver,whichhelpsyouavoid
significantinterruptiontotheoperationofthesystem.
Chapter6.Installing,removing,orreplacinghardware143
